Mechanical installation of non-pre-assembled units (ACS800-04M)
72

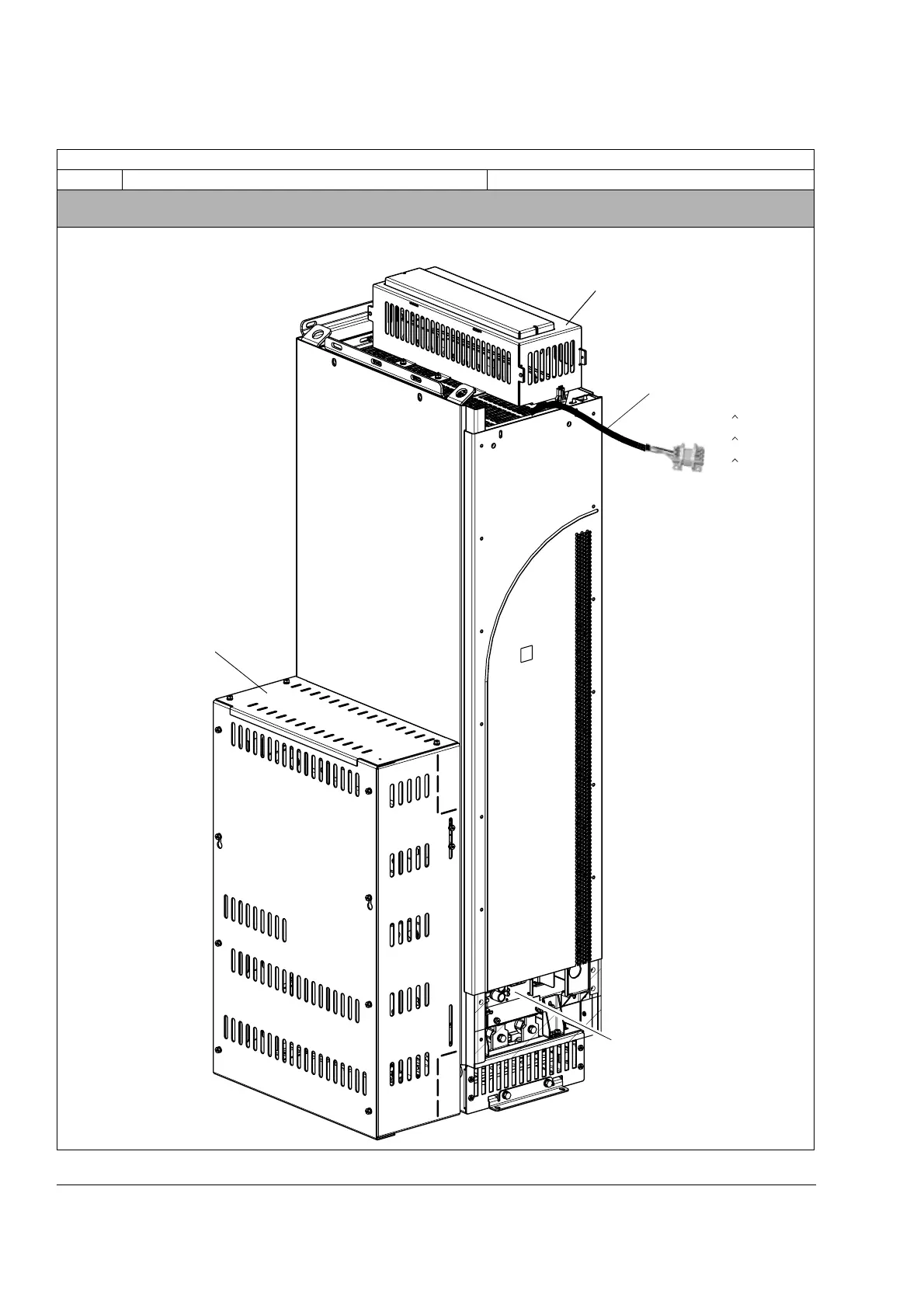

Example assembly (+H354+H355+H356+H362+B060+Q950 included): top entry busbar shroud, vertical busbar
shroud and Prevention of Unexpected Start
ACS800-04M of frame size R8 with busbars on the long side
Package Parts Assembling instruction ProE code 64772023 E
Front
+B060
+B060
+Q950 Prevention of
Unexpected Start.
Location of AGPS
board.
Note: The protective
films on the shrouds
must be removed
before installing.
600 mm (23.62 in.)
Terminal block for user
connection of Prevention of
Unexpected Start (+Q950 ).
The other end of the cable is
connected to AGPS board
terminal X1. The terminal
block can be fastened to the
cabinet frame or wall with
screws.
1 GND
2 N
3 L
=
=
=
To Next Page
