Mechanical installation of non-pre-assembled units (ACS800-04M)
99
Pedestal R8 +H360
64749978
Mounting bracket and
grounding terminal kit R8 +H360
64745794

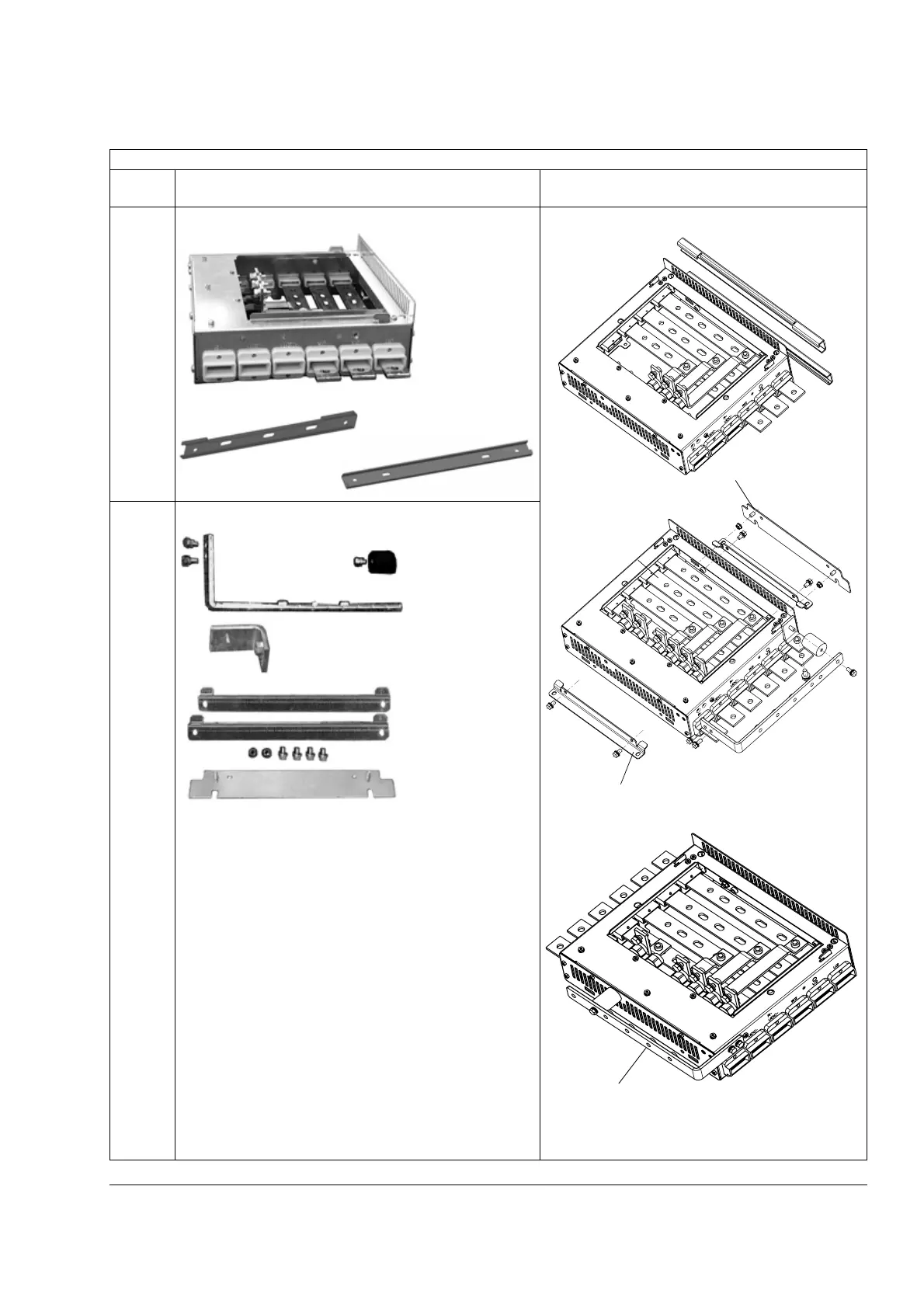

ACS800-04M with busbars on the short side (frame size R8)
Package Parts Assembling drawing / reference to instruction
ProE code 64772023 E
Pedestal
Spacers for wall
mounting
Upper
Lower
Base mounting if clamped from outside
Wall mounting
Front
Front
PE busbar if pedestal busbars are
swapped to the left. Note: vertical busbars
cannot be used.
Front
Front
PE terminal
Insulating support
L-bracket (used when U2 output
busbar is not installed)
Base mounting
brackets
Wall mounting
bracket
To Next Page
