124 EL3060 CONTINUOUS GAS ANALYZERS | OI/EL3060-EN REV. A

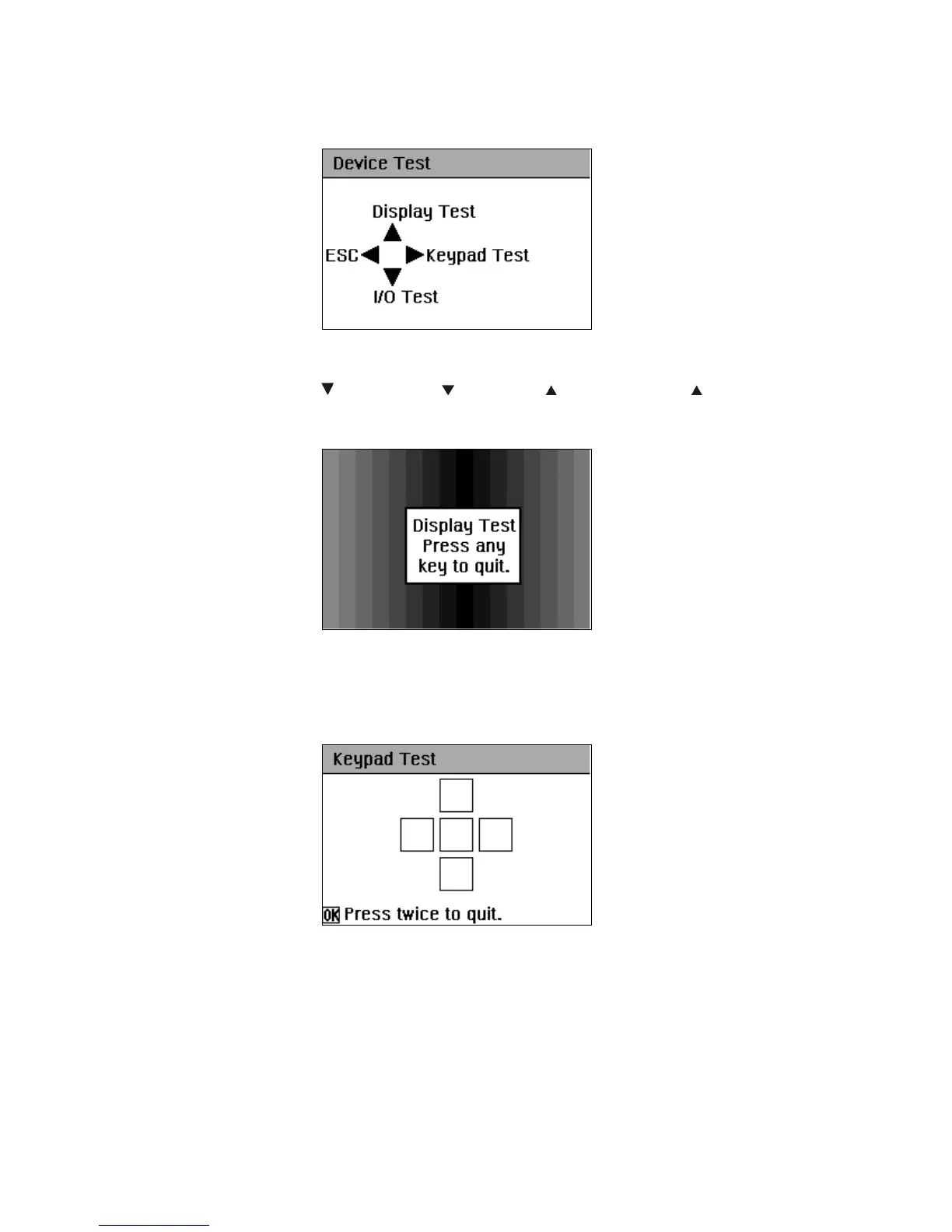

Device test
Menu path
Maintenance Diagnosis Test Functions Device Test
Display test
Test: A gray-scale field, over which a textbox moves, runs horizontally
through the display from right to left.
The display test is ended by pressing any key.
Keypad test
5 square fields appear in the display.
Test: If the user presses any key, the field assigned to the key is inverted
(dark) as long as the key is held down.
The keyboard test is ended by pressing the OK key twice.
