84 EL3060 CONTINUOUS GAS ANALYZERS | OI/EL3060-EN REV. A

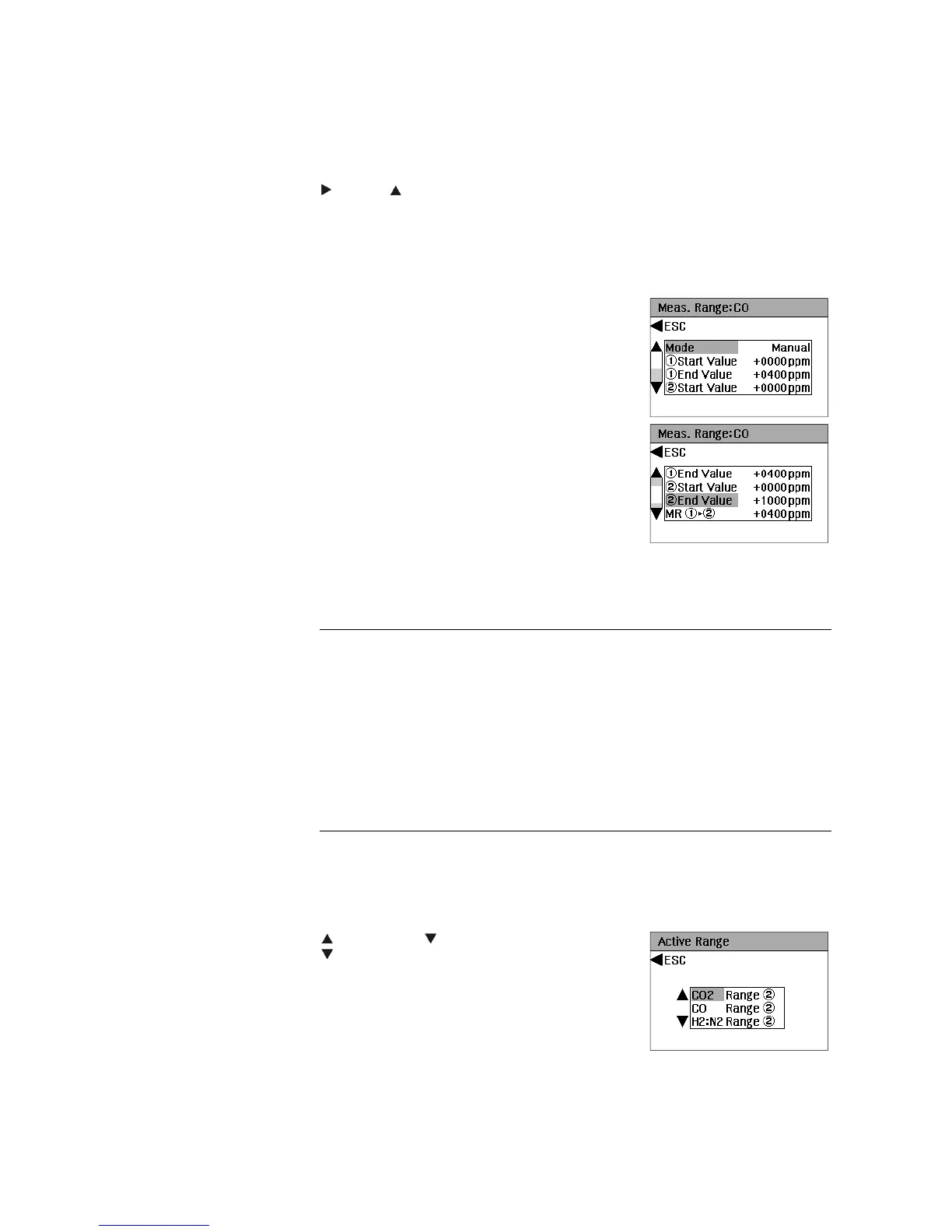

Measuring range configuration in the gas analyzer
Menu path
Setup Measurement Ranges
The measuring range parameters must be individually set for each sample
component.
Measuring range parameters
Mode of the measuring range switch-over
• Manual
• Automatic (autorange)
• Externally controlled (DI control)
Range limits
• Measuring Range 1 starting value
• Measuring Range 1 final value
• Measuring Range 2 starting value
• Measuring Range 2 final value
Autorange switch-over thresholds
• Switch-over from measuring range 1 to
measuring range 2
• Switch-over from measuring range 2 to
measuring range 1
NOTES
The automatic measuring range switch-over ("Autorange") can only be con-
figured if an analog output has been assigned to the detector.
The externally controlled measuring range switch-over ("DI Control") can
only be configured if an analog output and a digital input is assigned to the
detector).
The values of the autorange switch-over thresholds must both be in the
range "Measuring range 2 lower range value up to measuring range 1 final
value".
The value of the autorange switch-over threshold MR2−>MR1 must be less
than the value of the switch-over threshold MR1->MR2.
The conditions (see page 80) for the limits and combinations of the meas-
uring ranges must be complied with.
Manual measuring range switch-over
Operation Switch-over
Active Range
