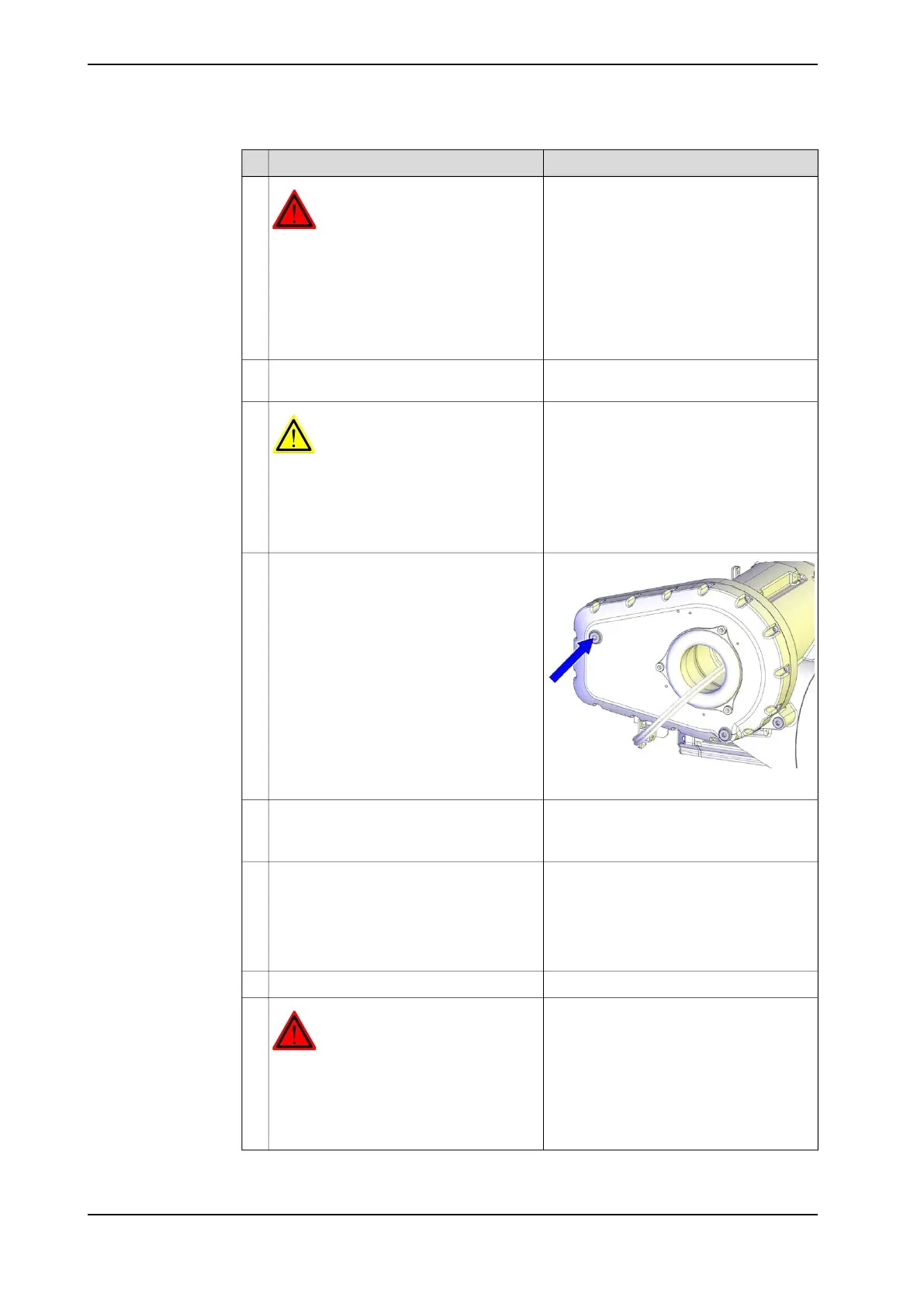

ABB IRB 6700 Series User Manual

NoteAction
DANGER
Turn off all:
• electric power supply
• hydraulic pressure supply
• air pressure supply
to the robot, before entering the robot
working area.
2
Make sure that the oil temperature is +25°C
± 10°C.
3
WARNING
Handling gearbox oil involves several
safety risks. Before proceeding, please
read the safety information in the section
Safety risks during work with gearbox lub-
ricants (oil or grease) on page 36.
4
xx1200000957
Open the oil plug.5
Check the oil level.6
Required oil level is: 0 - 10 mm below the
oil plug hole.
Type of oil and total amount is detailed in
Technical reference manual - Lubrication
in gearboxes.
Add or drain oil, if required.7
Further information about how to drain or
fill with oil is found in section Changing oil,
axis-4 gearbox on page 176.
Tightening torque: 24 Nm.Refit the oil plug.8
DANGER
Make sure all safety requirements are met
when performing the first test run. These
are further detailed in the section First test
run may cause injury or damage on
page 26.
9
130 Product manual - IRB 6700
3HAC044266-001 Revision: N
© Copyright 2013 - 2018 ABB. All rights reserved.
3 Maintenance
3.3.5 Inspecting the oil level in axis-4 gearbox
Continued
