ABB IRB 6700 Series User Manual

3.3.13 Inspecting the fork lift accessory
Introduction
The installation and use of the Fork lift accessories is described in:
• Directions for use - Fork lift accessory for IRB 6700
The fork lift accessories are supposed to be removed after use.
Location of fork lift accessory

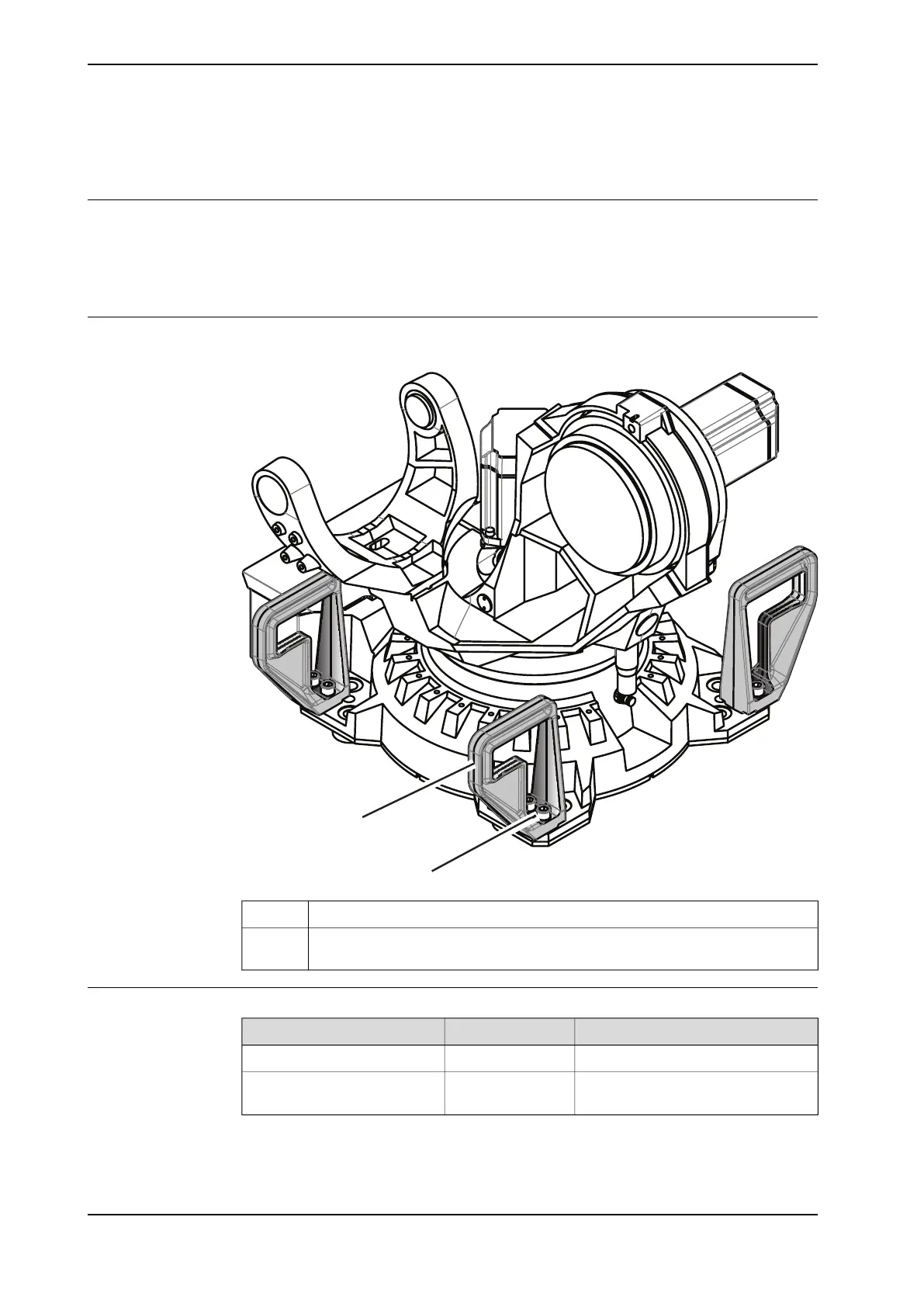

The fork lift accessory is fitted to the robot as shown in the figure.
A
B
Fork lift pocket (4 pcs)A
Hex socket head cap screw M20x60 quality steel 8.8-A3F (2 pcs per fork lift
device)
B
Required equipment
NoteArticle numberEquipment
3HAC047054-003Fork lift accessory set
Content is defined in section Standard
toolkit on page 829.
-Standard toolkit
Continues on next page
150 Product manual - IRB 6700
3HAC044266-001 Revision: N
© Copyright 2013 - 2018 ABB. All rights reserved.
3 Maintenance
3.3.13 Inspecting the fork lift accessory

ABB IRB 6700 Series Specifications

General

Payload	150-300 kg
Reach	2.60-3.20 m
Number of Axes	6
Protection Rating	IP67
Controller	IRC5
Protection	Foundry Plus 2
Mounting	Floor
