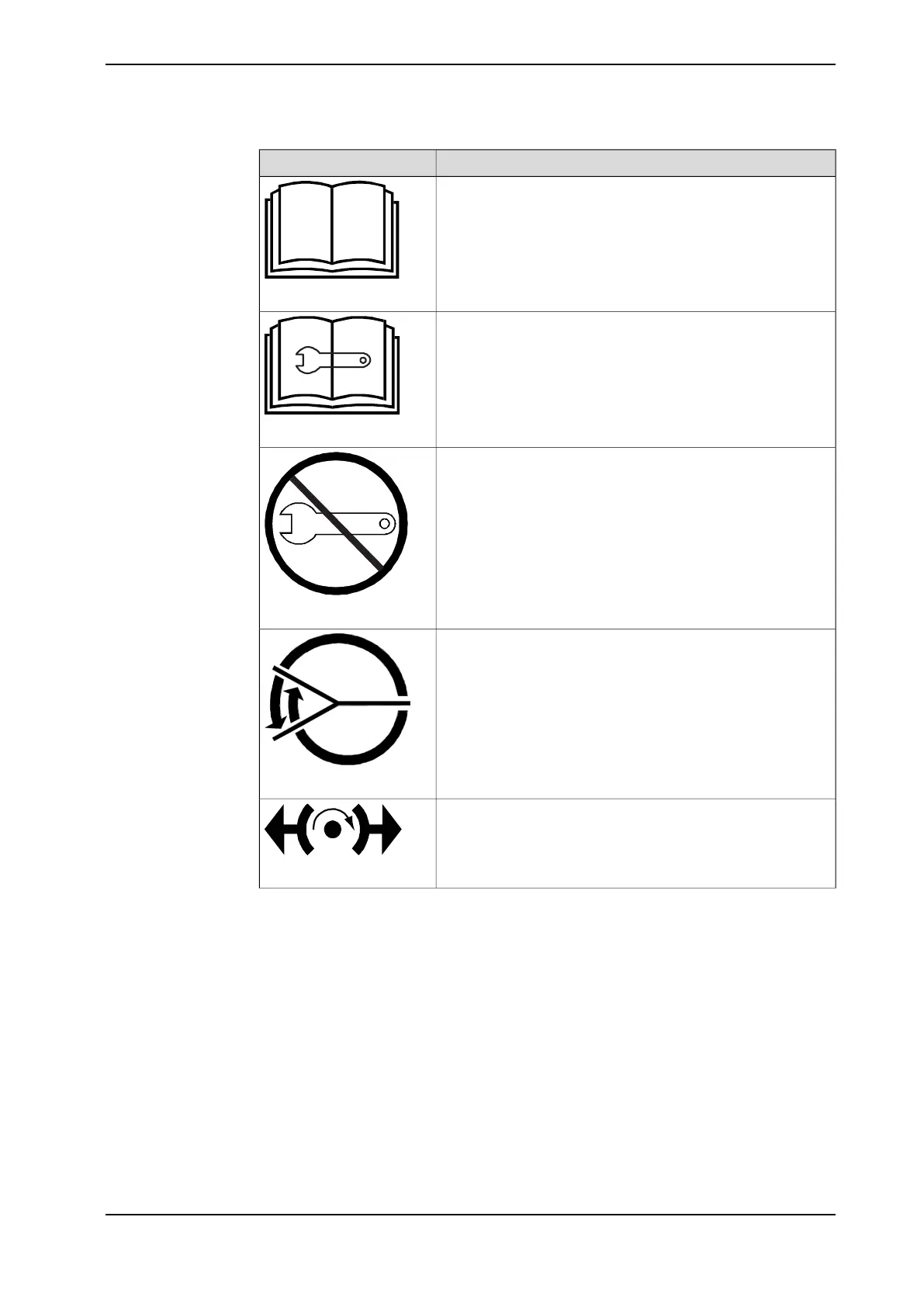

DescriptionSymbol
See user documentation
xx0900000813
Read user documentation for details.
Which manual to read is defined by the symbol:
• No text: Product manual.
• EPS: Application manual - Electronic Position Switches.
Before disassemble, see product manual
xx0900000816
Do not disassemble
xx0900000815
Disassembling this part can cause injury.
Extended rotation
xx0900000814
This axis has extended rotation (working area) compared to
standard.
Brake release
xx0900000808
Pressing this button will release the brakes. This means that
the robot arm can fall down.
Continues on next page
Product manual - IRB 6700 41
3HAC044266-001 Revision: N
© Copyright 2013 - 2018 ABB. All rights reserved.
1 Safety
1.4.2 Safety symbols on product labels
Continued
