14 M4M 30 NETWORK ANALYZER USER MANUAL

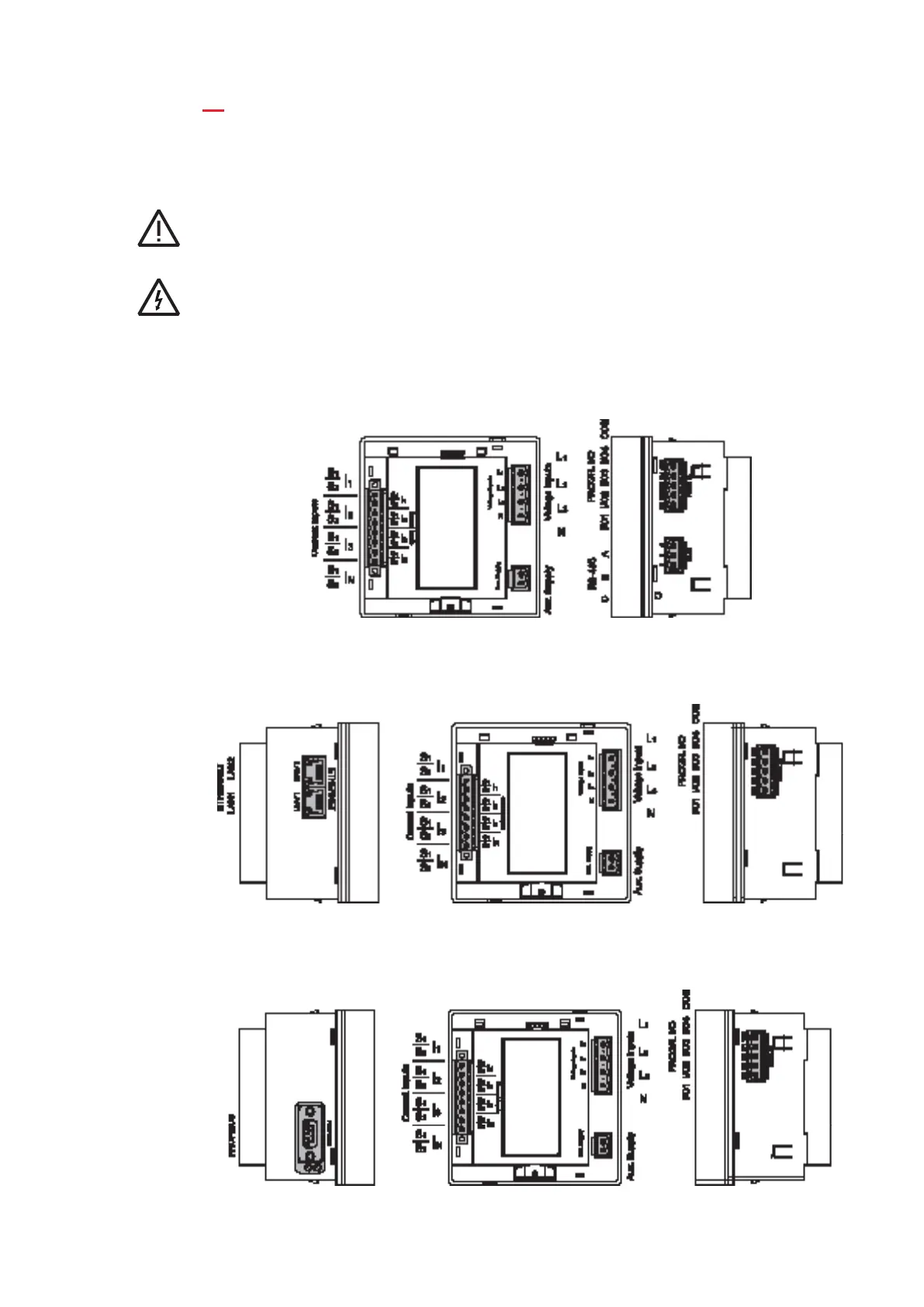

4.3.Wiring diagrams
The operations to carry out for the correct connection of the device, based on the type of electric line
available, are described in this section.
The installation and the cabling of the device must be carried out by qualified personnel.
Danger of electrocution, burning and electric arc.
Use the personal protection devices suitable to adhere to the current regulations governing electrical safety.
Prior to carrying out any connections check the sectioning of the electric supply with the voltage detection
device.
• M4M 30 MODBUS connection
• M4M 30 ETHERNET connection
• M4M 30 PROFIBUS connection
