M4M 30 NETWORK ANALYZER USER MANUAL
7

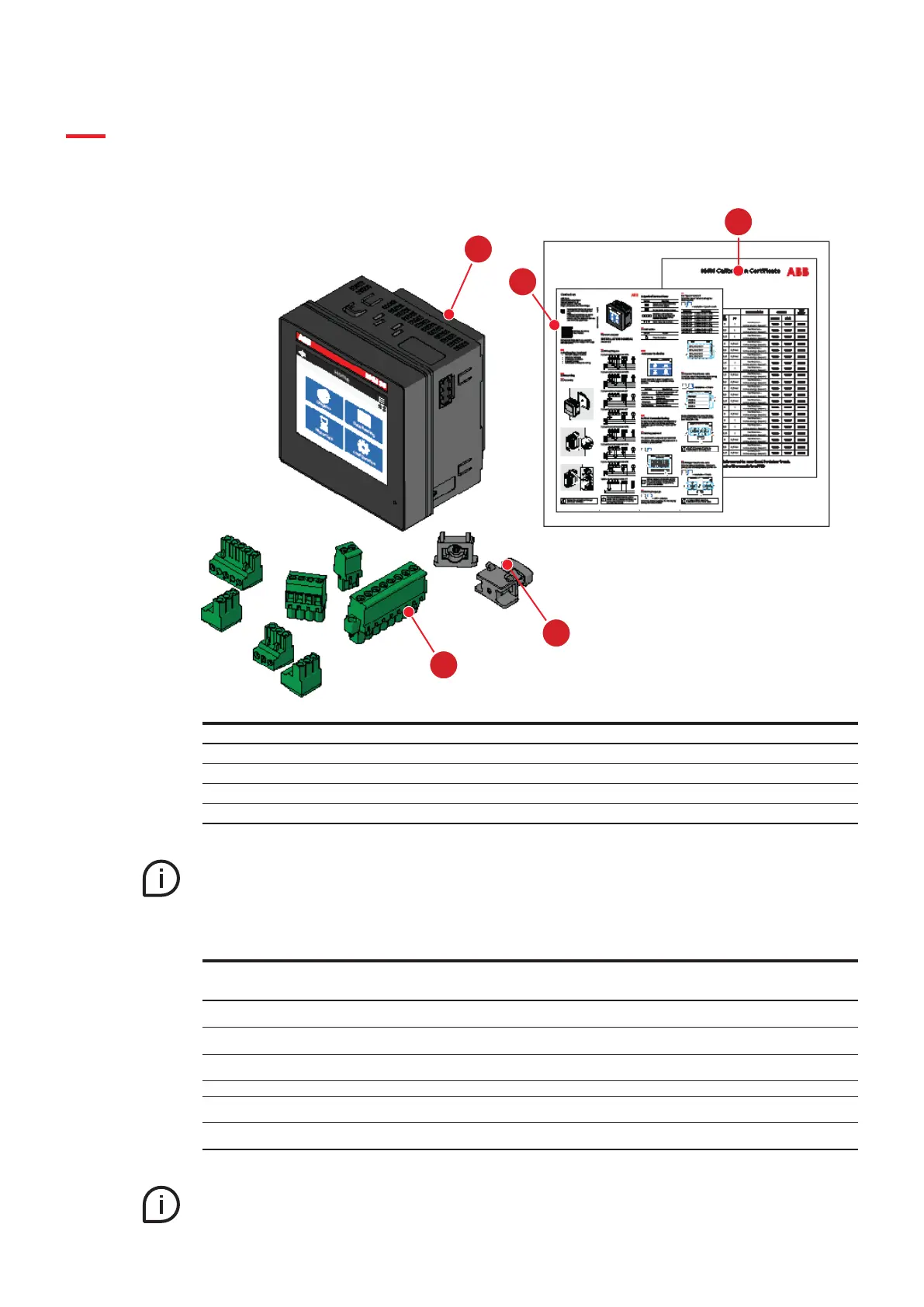

2.Packaging contents
Packaging contents
1 Network analyzer M4M 30
2 Installation manual
3 Calibration certificate
4 Installation accessories (removable terminals, fixing clips)
The number and type of removable terminals in the package varies according to the different versions.
Please refer to below table to check the removable terminals included in each package.
Product
Name
Current input
terminal
(8 poles)
Voltage input
terminal
(4 poles)
Auxiliary supply
terminal
(2 poles)
Programmable
I/O terminal n.1
(5 poles)
Programmable
I/O terminal n.2
(3 poles)
Analogue
outputs terminal
(3 poles)
RS485 terminal
(3 poles)
M4M 30
MODBUS
X X X X - - X
M4M 30
ETHERNET
X X X X - - -
M4M 30
PROFIBUS
X X X X - - -
M4M 30 I/O X X X X X X X
M4M 30
BACNET
X X X X - - -
M4M 30
ROGOWSKI
- X X X - - X
Please notice that terminals for current input on M4M 30 Rogowski are pre-wired on ABB’s R4M
Rogowski coils
1
4
4
2
3
