M4M 30 NETWORK ANALYZER USER MANUAL
77

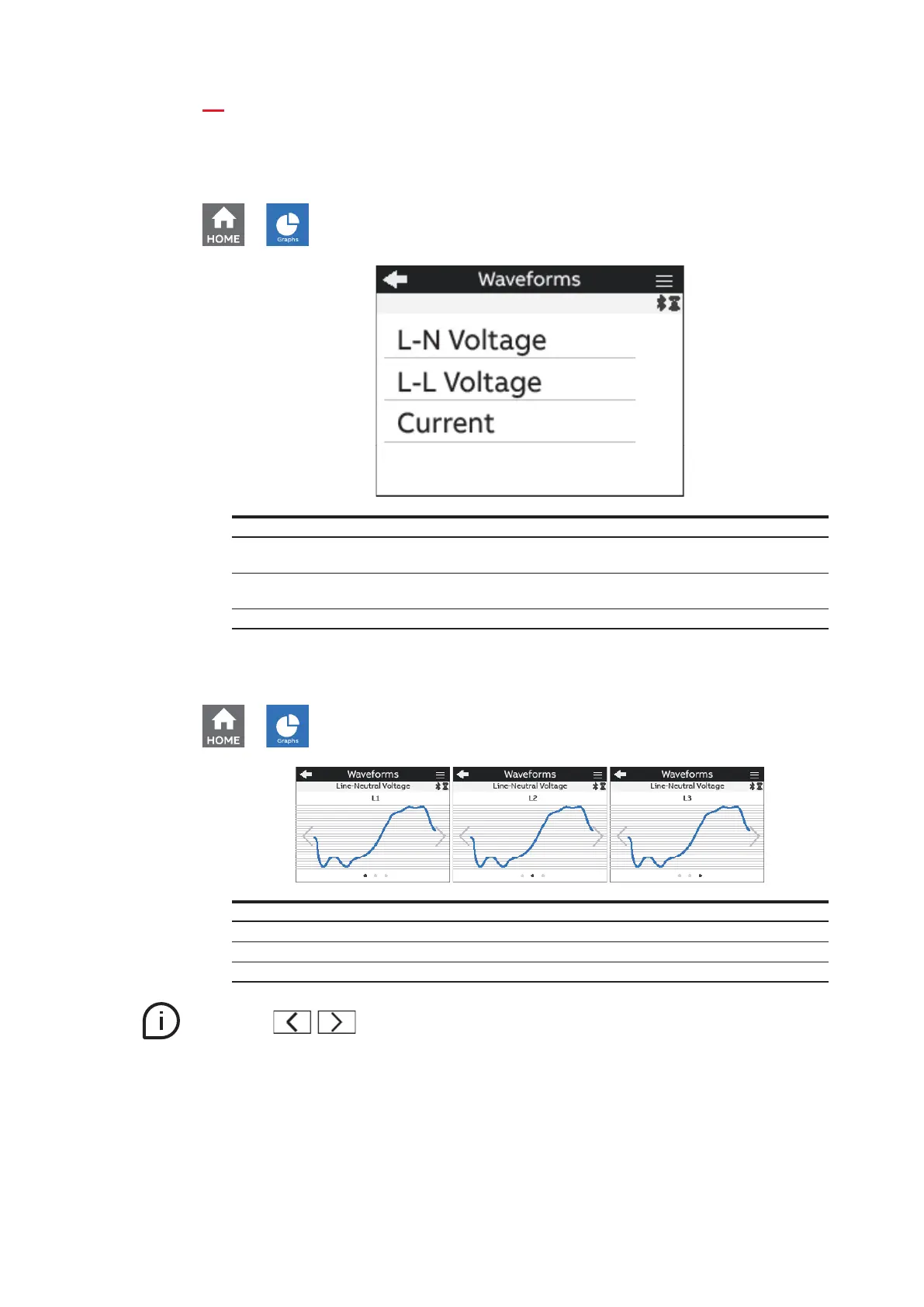

10.2.Waveforms
Waveforms consists in storing signal samples over 2 line cycles for voltage and current. This functionality
provides a realtime snpashot of network condition.
→ → Waveforms
Waveforms Description
L-N Voltage
Visualization of waveform graphs for line to neutral voltage per each
phase.
L-L Voltage
Visualization of waveform graphs for line to line voltage per each
line.
Current Visualization of waveform graphs for phase current.
L-N Voltage waveforms
→ → Waveforms → L-N Voltage
Graphs
Line-Neutral Voltage (L1)
Line-Neutral Voltage (L2)
Line-Neutral Voltage (L3)
Move with to change the line to neutral voltage (L1,L2,L3) .
