M4M 30 NETWORK ANALYZER USER MANUAL
81

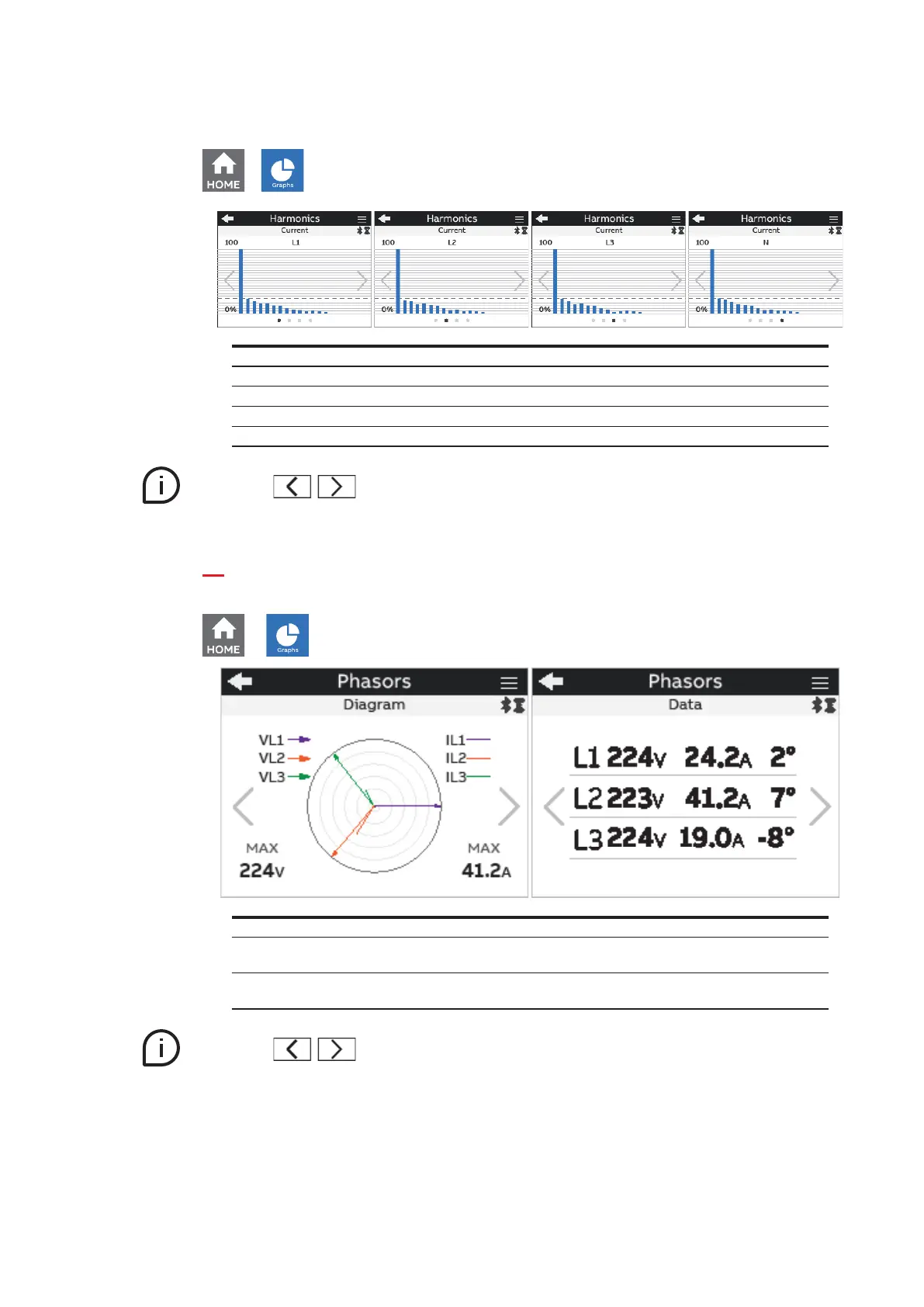

Current harmonics
→ → Harmonics → Current
Graph
Current (L1)
Current (L2)
Current (L3)
Current (N)
Move with to change the current harmonics graphs visualization (L1,L2,L3,N).
10.4.Phasors
→ → Phasors
Visualization pages Description
Diagram
Phase relationship of voltage and current for each phase. Voltages
are displayed with arrows and currents with solid lines.
Data
Value of voltage and current for each phase, together with the angle
between the phasors.
Move with to navigate among the pages.
