Menu Description
Unit Settings related to the device itself.
Installation Settings related to the installation conditions.
Historicals Settings related to Historicals functionalities, stored on the flash memory.
I/O Definition of I/O type of the M4M version.
Alarms
Definition of alarm conditions to be visualized as notifications or linked
to I/O.
Complex Alarms
Definition of user-defined logics based on single alarms to be visualized
as notifications or linked to I/O.
Tariffs Definition of tariffs via clock, communication or input.
Communication
Settings related to the embedded communication protocols of the M4M
version.
Other settings
Settings for average values, timers, energy conversion, warning levels of
harmonics.

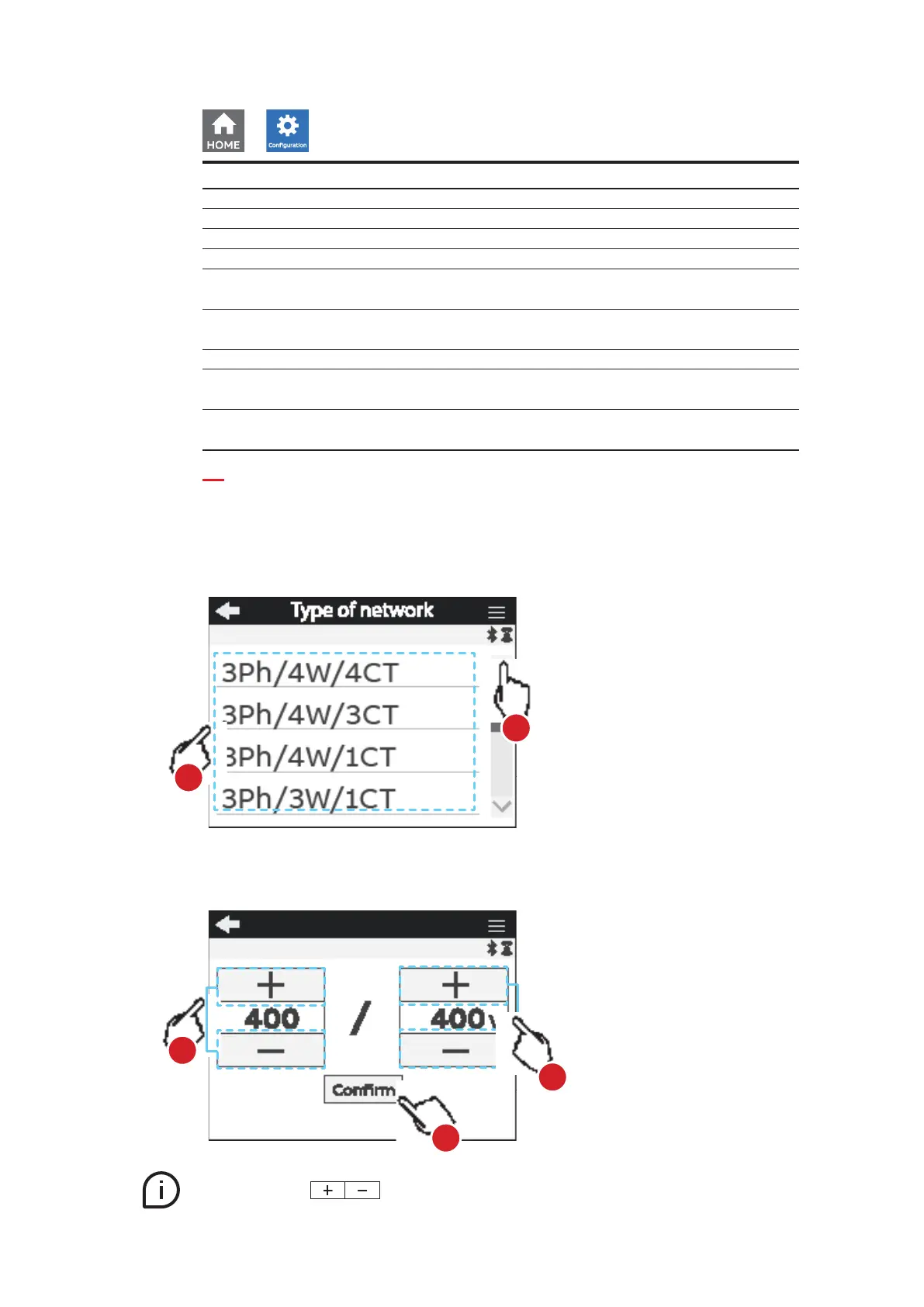

5.5.Data entry
For the configuration it is possible either to choose from a list of values or to manually enter a value.
List of values
1. Scroll the list on of values or fields.
2. Select one option
Manual data entry
1. Enter the values available in display
2. Press Confirm to confirm the modification.
Keeping pressed will increase the speed of the number variation.
2
1a
2
1
1b
