68 M4M 30 NETWORK ANALYZER USER MANUAL
8.7.I/O
The number and type of I/O on the M4M network analyzer varies according to the different product
versions. Please refer to the table in “3.3 Versions” for the detail of I/O types per each M4M.

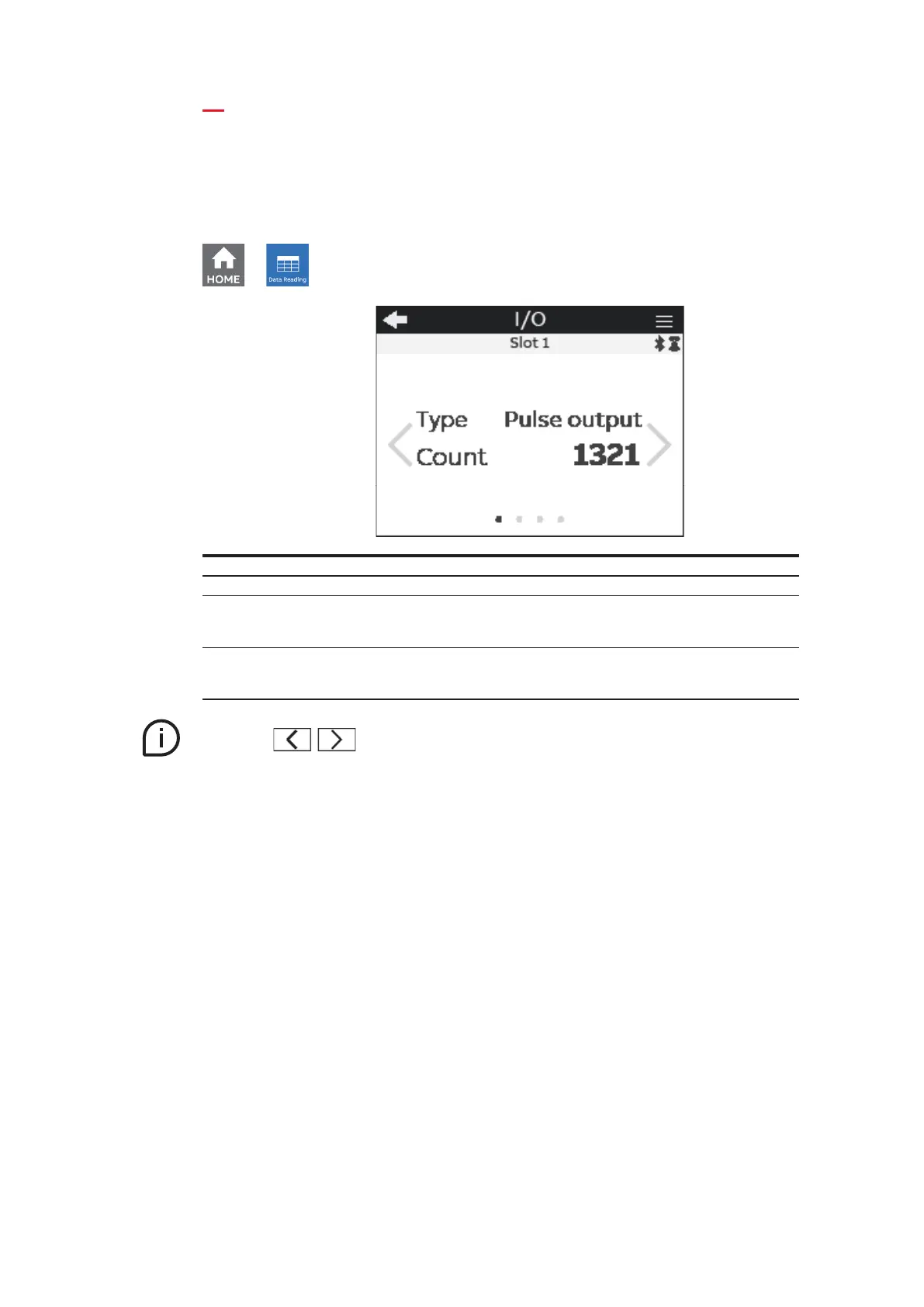

For each I/O specific information is shown according to the I/O type. Below an example for I/O set as
pulse output:
→ → I/O
Info Visualization Description
Type How I/O slot has been configured.
Count
Number of pulses counted by the I/O. It is only available
if the I/O slot has been configured as Pulse input or Pulse
output.
State
Status of the I/O. It is only available if the I/O slot has
been configured as Tariff input, Pulse Output, Output ON,
Output OFF or Comm. output.
Move with keys to navigate among the visualization pages.
