PositionMaster EDP300 DIGITAL POSITIONER | OI/EDP300-EN REV. D 21

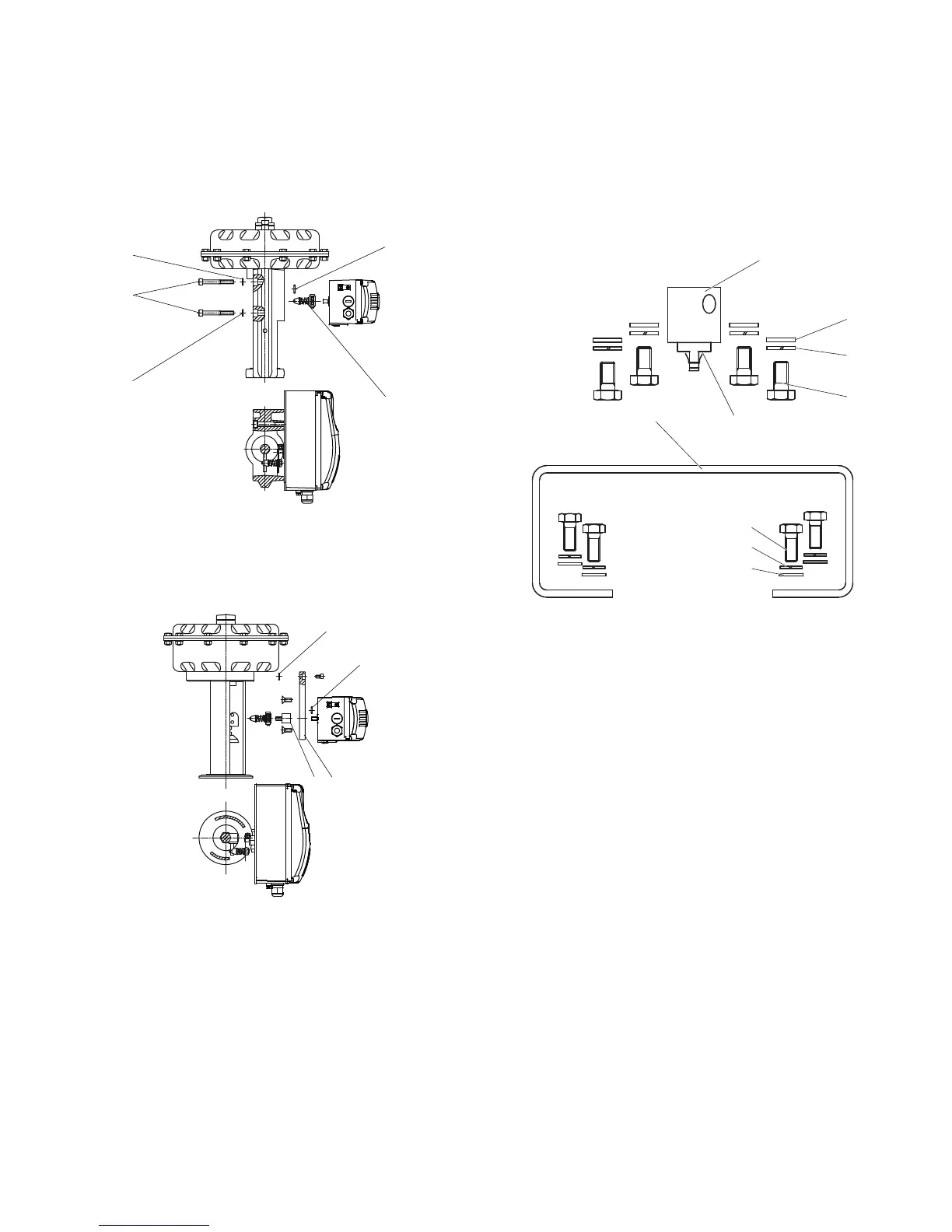

Mounting on control valves
M10128-01
1
2
3
4
1
1 Washers
2 Screws
3 O-ring
4 Lever
Figure 14: Integral mounting on control valves
M10129-01
1
23
1
1 O-ring
2 Adapter plate
3 Adapter
Figure 15: Integral mounting on control valves with adapter plate
Mounting on rotary actuator
For mounting on part-turn actuators in accordance with
VDI / VDE 3845, the following attachment kit is available:
M10130-01
1
2
3
4
5
6
7
8
9
Figure 16: Components of attachment kit
• Adapter
1 with spring 5
• four M6 screws each
4, spring washers 3 and washers 2
to fasten the attachment bracket 6 to the positioner
• four M5 screws
7, Spring washers 8 and washers 9 to
fasten the attachment bracket to the actuator
Required tools:
• Wrench, size 8 / 10
• Allen key, size 3
