ABB PowerScale CABINET A User Manual

Section-1
04-3004_S1_OPM_ABB_POWERSCALE_10-50kVA_EN_150113.doc Page 5/20 ABB
Printed in Switzerland – Modifications reserved
1.2 SYSTEM DESCRIPTION
The product described in this manual is a transformerless Uninterruptible Power System (UPS). It is a true online,
continuous duty, double conversion, solid state, three-phase system, providing conditioned and uninterruptible AC
power to protect the customer’s load from all nine power failures.

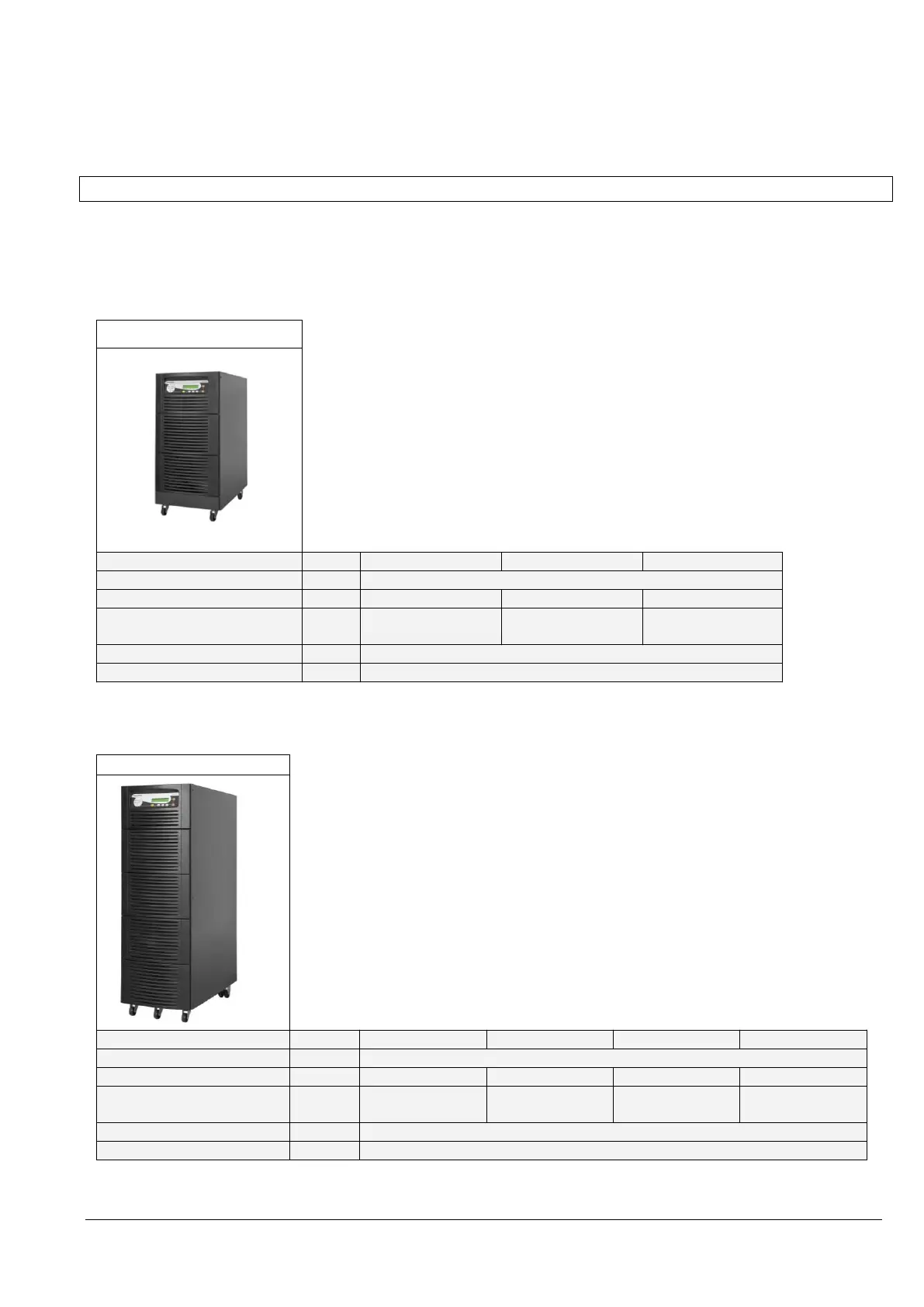

1.2.1 MECHANICAL CHARACTERISTICS POWERSCALE 10-20KVA CABINET A
PowerScale Cabinet A
Power range
kVA
10
15
20
Dimensions (WxHxD)
mm
345x720x710
Weight without battery
kg
60
62
64
Weight with battery with 48
block of 7Ah
kg
180
182
184
with standard packaging
kg
+ 4
Colour
Graphite grey (RAL 7024)
1.2.2 MECHANICAL CHARACTERISTICS POWERSCALE 10-25KVA CABINET B
PowerScale Cabinet B
Max. Power connection
kVA
10
15
20
25
Dimensions (WxHxD)
mm
345x1045x710
Weight without battery
kg
88
90
92
94
Weight with battery with
96 block of 7Ah
kg
328
330
332
334
with standard packaging
kg
+ 5
Colour
Graffito grey (RAL 7024)
