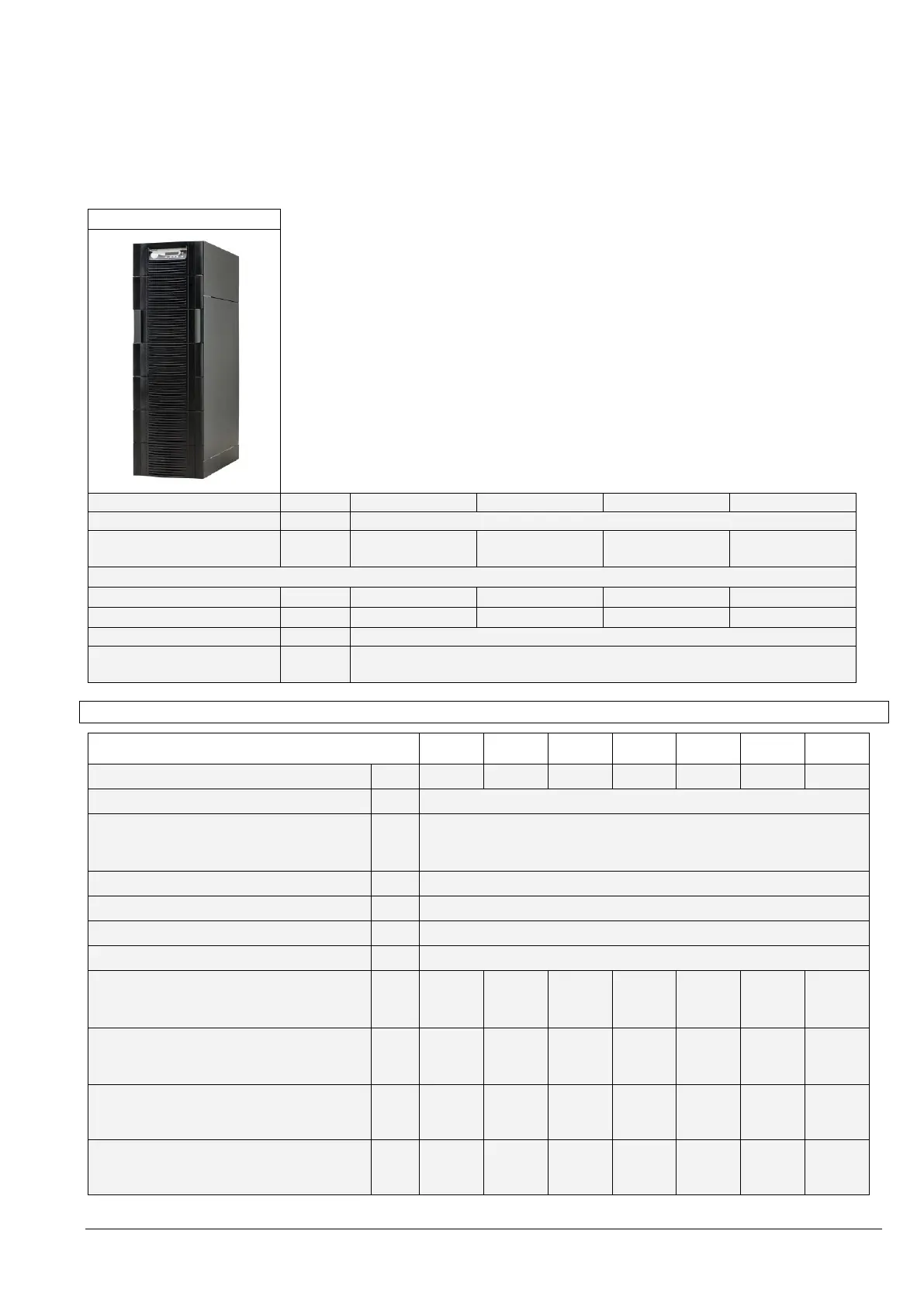

04-3004_S10_TDS_ABB_POWERSCALE_10-50 kVA_EN_150113.doc Page 5/20 ABB
Printed in Switzerland – Modifications reserved
10.2.3 MECHANICAL CHARACTERISTICS POWERSCALE 25-50kVA Cabinet C
PowerScale Cabinet C
Max. Power connection
kVA
25
30
40
50
Dimensions (WxHxD)
mm
440x1400x910
Weight without battery
kg
(9Ah/28Ah)
151/135
(9Ah/28Ah)
160/145
9Ah/28Ah
165/150
9Ah/28Ah
170/155
Weight with battery
144 blocks of 7/9Ah
kg
540
550
555
560
48 blocks of 28Ah
kg
605
615
620
625
with standard packaging
kg
+ 5
Colour
Graphite grey Pulverlacke No. 4222903402 serie 09RCCAT1
(RAL 7024)
10.3 INPUT CHARACTERISTICS
UPS Model
PS 10
PS 15
PS 20
PS 25
PS 30
PS 40
PS 50
Output Power rating
kVA
10
15
20
25
30
40
50
Nominal Input Voltage
V
3x380/220V+N, 3x400V/230V+N, 3x415/240V+N
Input Voltage Tolerance
(ref to 3x400/230V) for Loads in %:
V
(-10%/+15%) 3x308/177 V to 3x460/264 V for <100 % load
(-20%/+15%) 3x280/161 V to 3x460/264 V for < 80 % load
(-30%/+15%) 3x240/138 V to 3x460/264 V for < 60 % load
Input Frequency
Hz
35 – 70
Input Power Factor
PF=0.99 @ 100 % load
Inrush Current
A
max. In
Input Distortion THDi
Sine-wave THDi < 3 % @ 100% load
Max. Input Power with rated output
power and charged battery
(output cosφ = 0.9)
kW
9.6
14.4
19.1
23.9
28.7
38.3
47.9
Max. Input Current with rated output
power and charged battery
(output cosφ = 0.9)
A
13.9
20.8
27.8
34.7
41.6
55.5
69.4
Max. Input Power with rated output power
and discharged battery
(output cosφ = 0.9)
kW
10.5
15.7
21
26.2
31.4
41.9
52.4
Max. Input Current with rated output
power and discharged battery
(output cosφ = 0.9)
A
15.2
22.8
30.4
37.9
45.5
60.7
75.9
LP Modules
LP Modules
HP Modules
HP Modules
