ABB PowerScale CABINET A User Manual

Section-2
04-3004_S2_OPM_ABB_POWERSCALE_10-50kVA_EN_150113.doc Page 5/15 ABB
Printed in Switzerland – Modifications reserved
2.2 FRONT and REAR VIEW
2.2.1 FRONT AND REAR VIEW OF POWERSCALE CABINET A

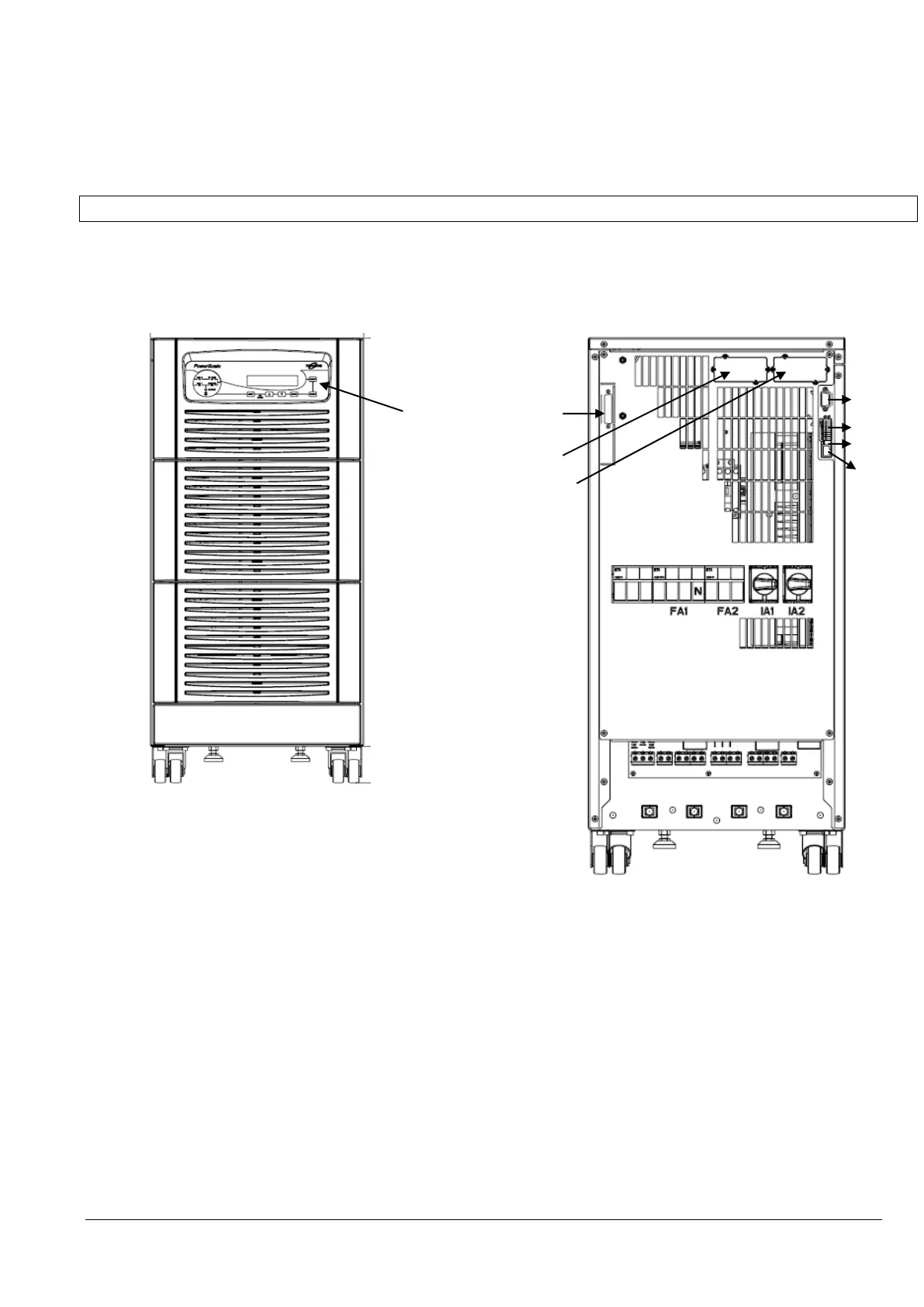

2.2.1.1 Front and Rear View PowerScale 10-20kVA in Cabinet A and Connection Terminals
FRONT VIEW REAR VIEW
1 PMD Power Management Display (PMD) of POWERSCALE
2 USB PC Interface (Slot 1 Option)
3 JD1/RS232 Sub D9/female Interface (UPS system to computer) (see section 3 / 1.1)
4 X1 Customer Inputs
5 X2 Customer interface on Phoenix Terminals (Slot 1 Option):
X2= Potential free contacts (detail see Section 3 / 1.2 )
6 JR1/RS485 on RJ 45 port Interface for Multidrop connection between several UPS
cabinets (see Section 3)
7 SW1-9 Multi-Cabinet Configuration Switch (see section 4)
8 JD8 Parallel BUS connector (Option)
ONLY For paralleling cabinets use optional adapter:
JD5 Parallel BUS - Input Connector
JD6 Parallel BUS - Output Connector
9 SNMP Slot for optional SNMP card ONLY
10 Modem Slot for optional Modem/Ethernet card ONLY
11 Battery terminal + / N / -
12 Input Rectifier terminal for Single feed see section 2.1.2
13 Input Bypass terminal for Dual Input feed pag.2
14 Output Load terminal
15 IA1 Maintenance Bypass
16 IA2 Parallel Isolator
17 F1 Battery Fuse A/B
18 FA2 Bypass Line Fuse
19 FA1 Rectifier Fuse
1
1
8
2/5
9/10
3
4
7
6
17
19
18
15
16
11
12
13
14
F1
