ABB PowerScale CABINET A User Manual

Section-2
04-3004_S2_OPM_ABB_POWERSCALE_10-50kVA_EN_150113.doc Page 3/15 ABB
Printed in Switzerland – Modifications reserved

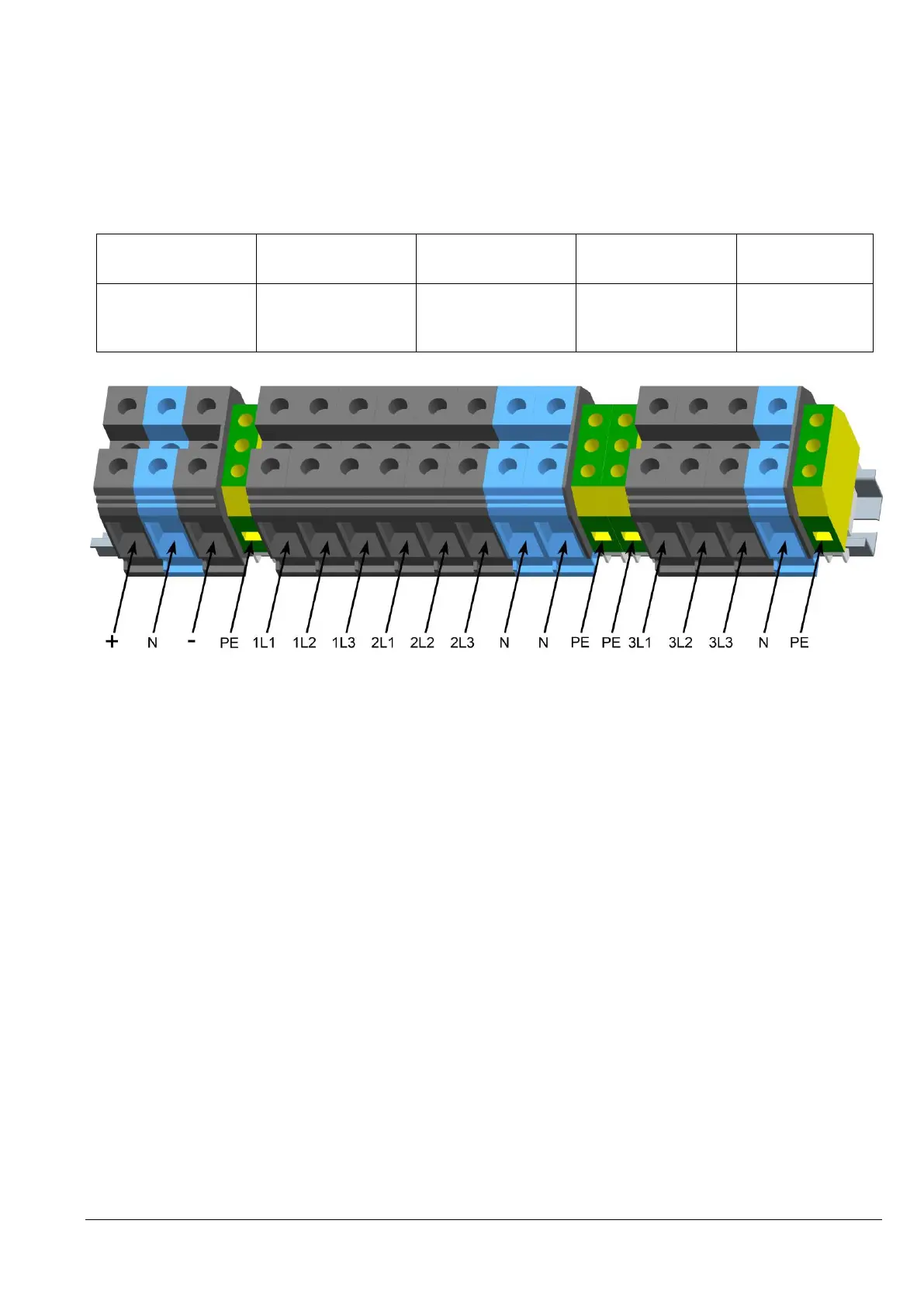

2.1.2.3 Cabinet C (40-50 kVA) terminal connections overview
Battery
(+ / N / - ) + PE
[quantity x mm
2
]
Input Rectifier
1L1, 1L2, 1L3 + N + PE
[quantity x mm
2
]
Input Bypass
2L1, 2L2, 2L3 + N + PE
[quantity x mm
2
]
Output load
3L1, 3L2, 3L3 + N + PE
[quantity x mm
2
]
Tightening Torque
[Nm]
(+ / N / - ):
3 x 35
PE:
1 x 16
1L1, 1L2, 1L3 + N:
4 x 35
PE:
1 x 16
2L1, 2L2, 2L3 + N:
4 x 35
PE:
1 x 16
3L1, 3L2, 3L3 + N:
4 x 35
PE:
1 x 16
35 mm
2
:
3.5
16 mm
2
:
1.5
