ABB PowerScale CABINET A User Manual

Section-3
04-3004_S3_OPM_ABB_POWERSCALE_10-50kVA_EN_150113.doc Page 2/6 ABB
Printed in Switzerland – Modifications reserved
3.1 INTERFACING
Each UPS is provided with communication port and a communication card, which provides system information
STANDARD ITEMS
RS232 on Sub-D9 port
For monitoring and integration in network management
Customer Interfaces :
Inputs DRY PORT
1 Remote Shut down [EMERGENCY OFF (Normally closed)]
1 GEN-ON (Normally open)
1 Programmable Customer’s Inputs (Normally open)
1 Temp. Sensor for Battery Control
1 12 vdc source (max. 250 mA)
RJ45 port
For multidrop purpose
Power Management Display (PMD)
LCD display
OPTIONAL ITEMS
Relay card + USB Including:
Customer Interfaces:
5 output DRY PORTS
RS232 on USB port
 Common alarm
 Load on bypass
 Battery low
 Load on inverter
 Mains failure
For remote signalling and automatic computer shutdown
SNMP Card (slot already included)
SNMP card
For monitoring and integration in network management
3.1.1 SMART PORT JD1 (SERIAL RS 232 / SUB D9 / FEMALE) AND USB PORT
The SMART PORT JD1 and USB port located on the UPS itself is an intelligent RS 232 serial port that allows the
UPS to be connected to a computer. The connector is a standard D-Type, 9-pin, female, and the USB is a standard
USB port.
The software WAVEMON allows the computer to monitor the mains voltage and the UPS status continuously.
In the event of any changes the computer terminal will display a message. (For details see our Monitoring
Package: WAVEMON ).

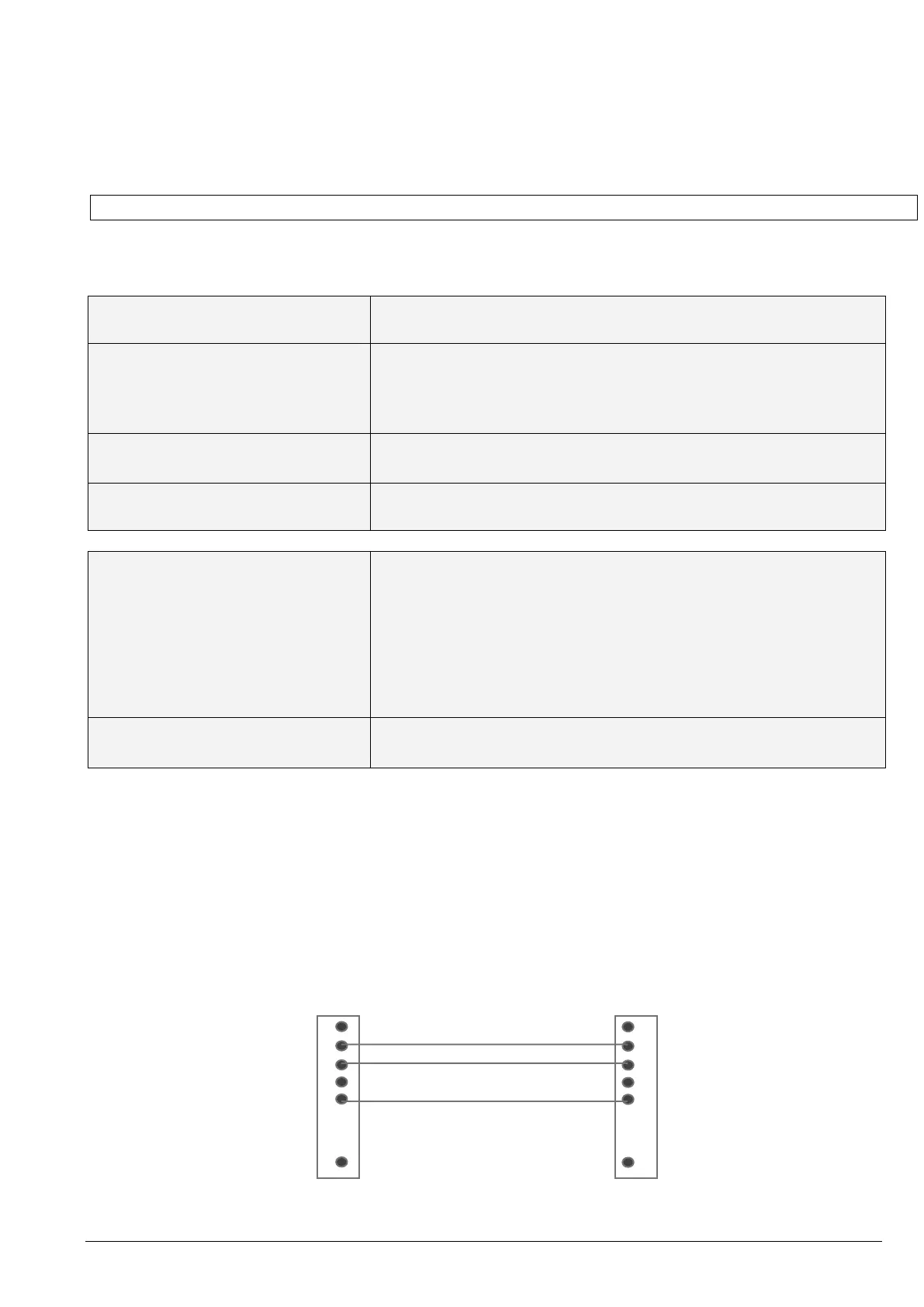

The Fig. 1.1 shows how to connect a PC to the UPS with different Sub-D connectors.
a)Interface Cable (UPS End) Interface cable (Computer End)
(9-Pin, D-Type female) (9-Pin, D-Type male)
Connects UPS Connects to
to SMART PORT Computer
1
2
3
9
.
.
.
5
1
2
3
9
.
.
.
5
Figure 1 Connector Cable - PC Serial Port with 9-Pin Connection
