ABB ProcessMaster User Manual

Electrical connections
CI/FEX300/FEX500-EN FEX300, FEX500 EN - 31
5.3 Preparing the signal and magnet coil cable in the case of transmitters with single-compartment
housing
G01323
M1 M2 D1 D2 SE 3 2S E2 E1 1S
M1 M2 D1 D2 SE 3 2S E2 E1 1S
D173D031U01
D173D027U01
1
2
4
5
6
1

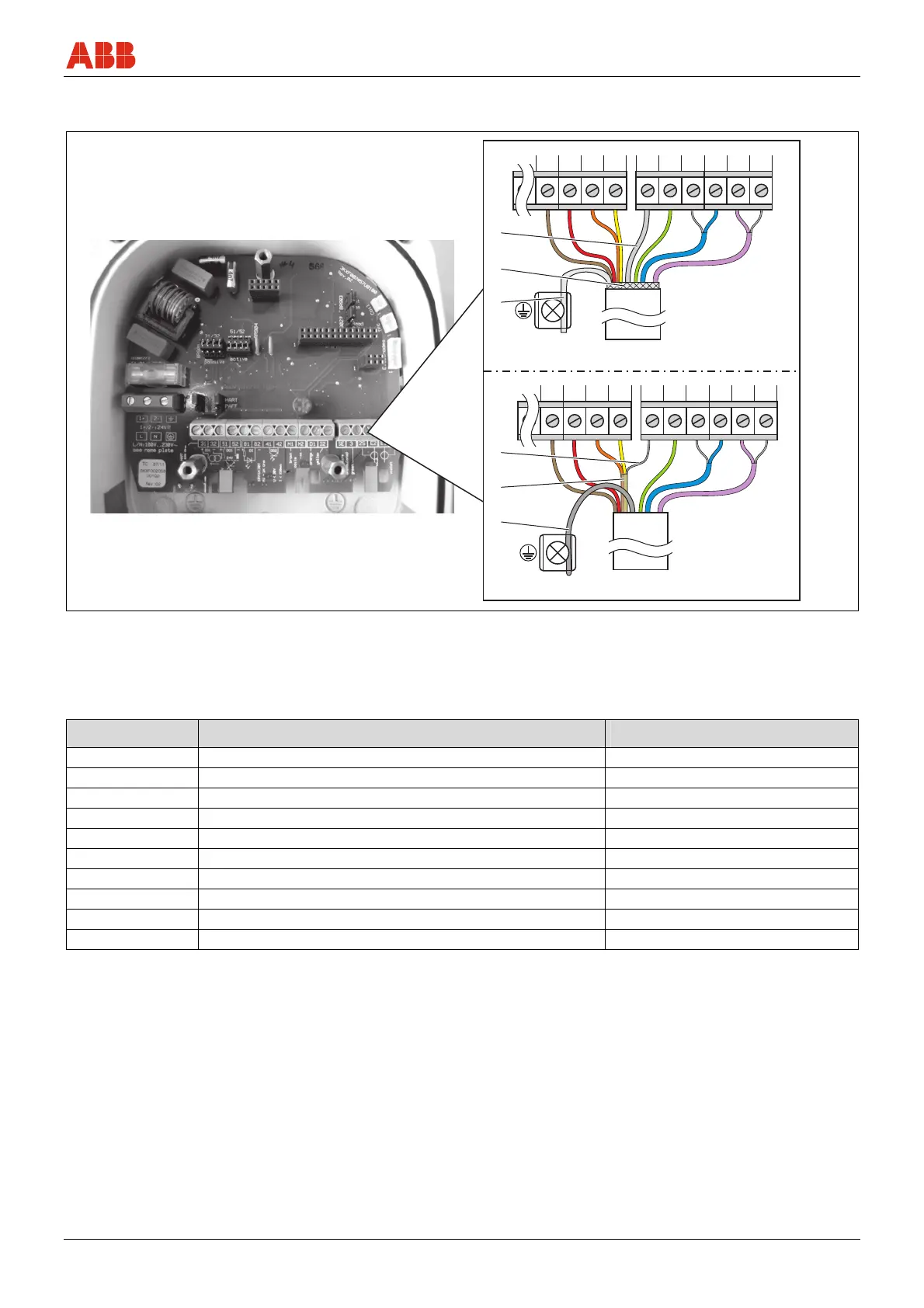

Fig. 29: Transmitter side, dimensions in mm (inch)
1 Ground wire
2 Wire mesh shield (D173D027U01 only)
4 Twisted wire mesh shield (D173D027U01 only)
5 Foil shield continuity wire D1, D2 (D173D031U01
only)
6 Foil shield D1, D2 (D173D031U01 only)
Terminal Description, wire color Length in mm (inch)
M1 Magnet coil, brown 70 (2.76)
M2 Magnet coil, red 70 (2.76)
D1 Data line, orange 70 (2.76)
D2 Data line, yellow 70 (2.76)
SE Shield -
3 Measurement potential, green 70 (2.76)
2S Shield for E2 60 (2.36)
E2 Signal line, blue 60 (2.36)
E1 Signal line, violet 60 (2.36)
1S Shield for E1 60 (2.36)
