Electrical connections
36 - EN FEX300, FEX500 CI/FEX300/FEX500-EN
5.5 Connecting the flowmeter sensor
5.5.1 Metal terminal box in the case of ProcessMaster and HygienicMaster
Connections can only be made with the power supply switched off.
The unit must be grounded. The sensor is connected to the transmitter via the signal / magnet
coil cable (part no. D173D027U01 or D173D031U01).
G00671-02
1S
E1 E2
2S
3
D2 D1M2M1
1S
E1 E2 2S 3 D2 D1M2M1
1S
E1 E2 2S 3 D2 D1M2M1
D173D027U01 D173D031U01
1
2
4
1
2
5
6

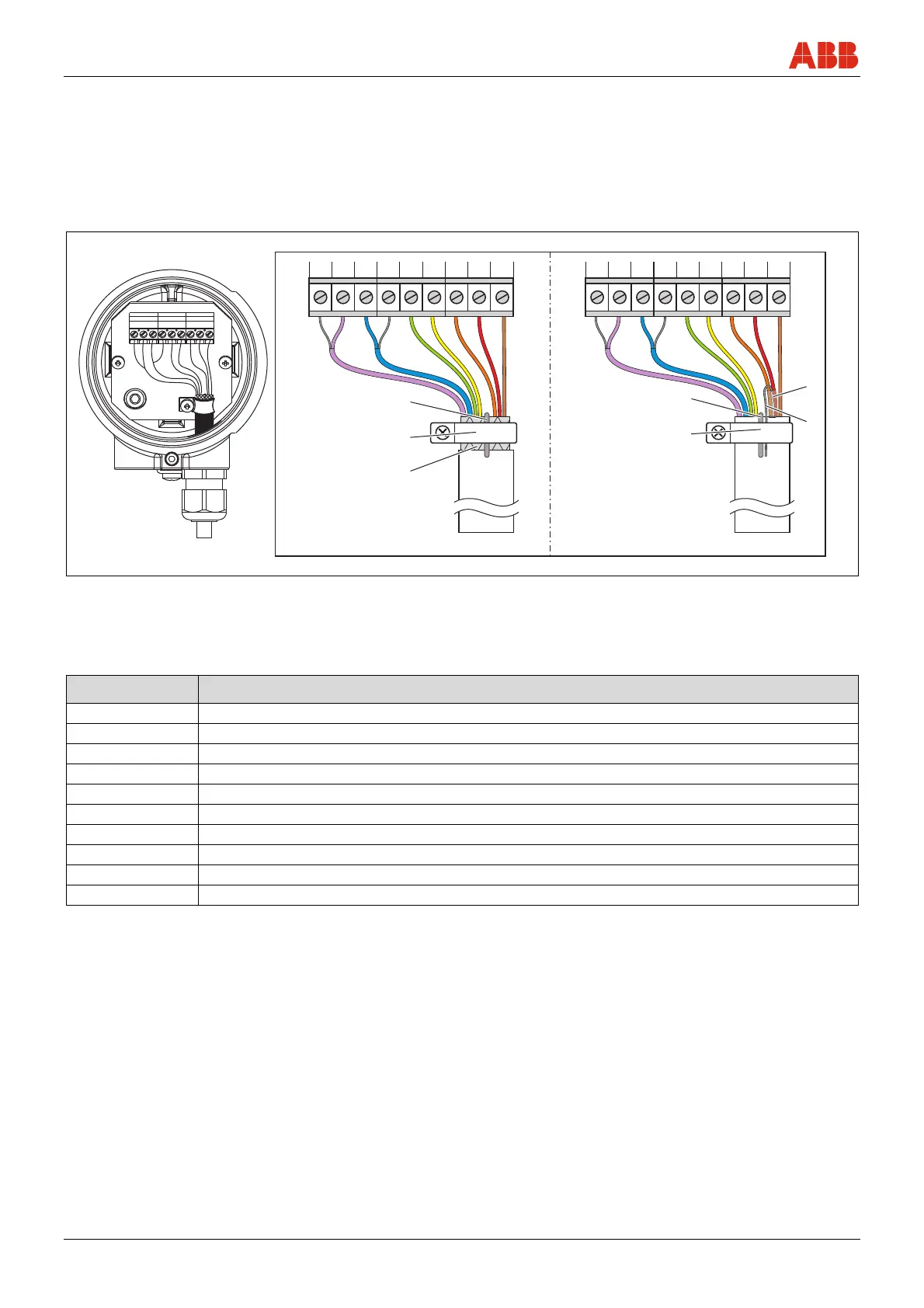

Fig. 33
1 Ground wire
2 Grounding clamp
4 Wire mesh shield (D173D027U01 only)
5 Foil shield D1, D2 (D173D031U01 only)
6 Foil shield continuity wire D1, D2
(D173D031U01 only)
Terminal Description, wire color
M1 Magnet coil, brown
M2 Magnet coil, red
D1 Data line, orange
D2 Data line, yellow
PE Shield
3 Measurement potential, green
2S Shield for E2
E2 Signal line, blue
E1 Signal line, violet
1S Shield for E1
