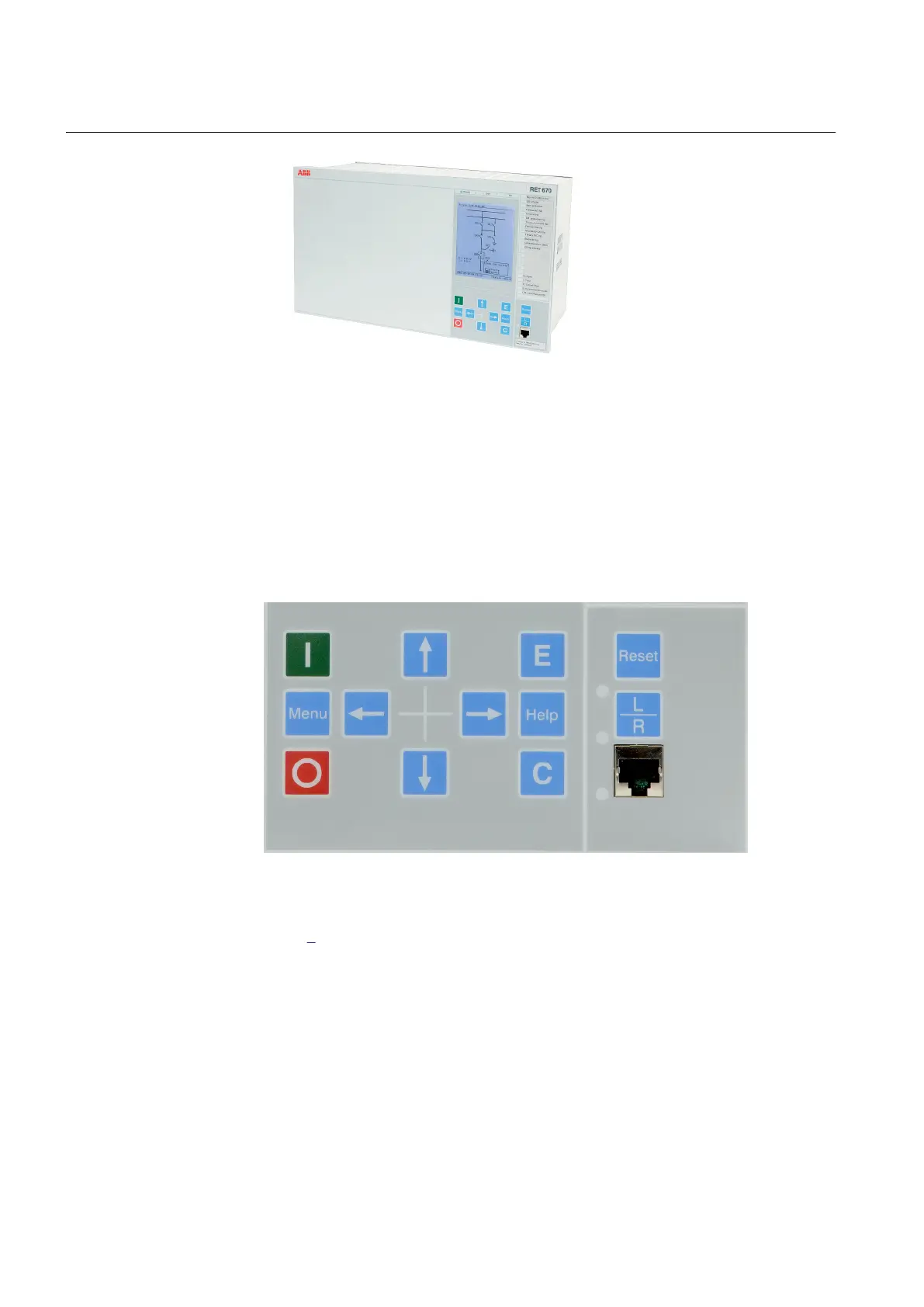

IEC08000084 V1 EN
Figure 2:
1/1 x 19” case with medium LCD
4.2
Keypad
The keypad is used to monitor and operate the IED. The keypad has the same look
and feel in all IEDs. LCD screens and other details may differ but the way the keys
function is identical.
IEC05000153 V1 EN
Figure 3:
The HMI keypad.
Table
1
describes the HMI keys that are used to operate the IED.
Section 4
1MRK 511 188-UEN C
Understand the local human-machine interface
20
Operator's manual
25
27
