9.5.1 Verifying the IEEE C37.118/1344 TCP communication
GUID-289E2E92-431E-45FE-B586-A723588B98A1 v1
After setting both PMU configuration and the TCP client configuration (As
explained in sections Setting the PMU station communication (PMU Report),
Setting the PMU station communication (PMU configuration) and Setting the
TCP/UDP client communication) and making sure that the Ethernet
communication is set up, click Connect on the PMU Connection Tester tool.
IEC140000138-1-en.vsd
IEC140000138 V1 EN-US

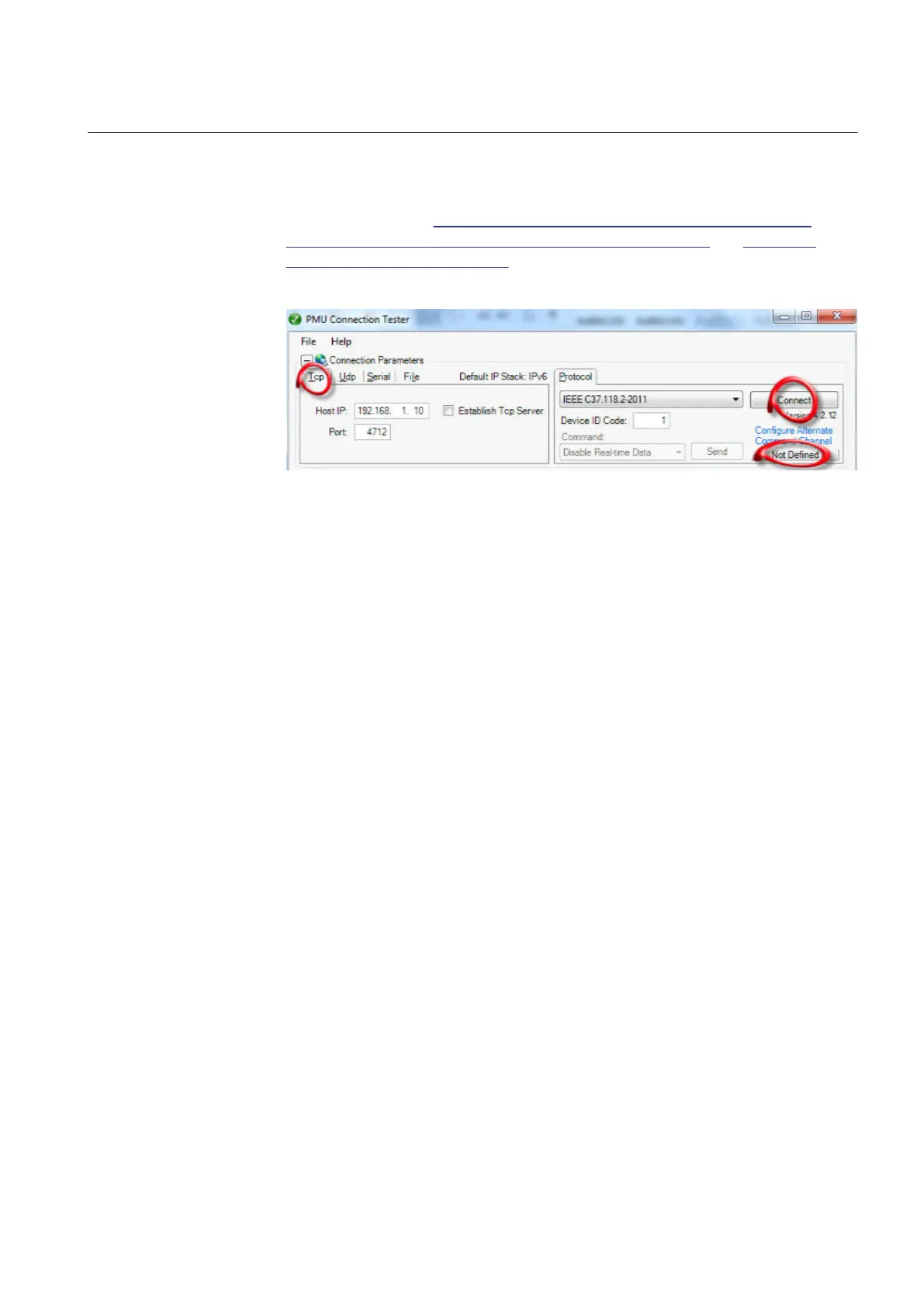

Figure 10: Verifying the TCP communication using PMU Connection Tester
• Now it should be possible to see the streaming synchrophasor data. In the
Graph tab, observe the Frequency, data Reporting Rate, Phasor names, and
Phase angles of the reported synchrophasors. Observe the real-time frame
details of the Data Frame in the bottom of the window.
1MRK 505 378-UEN A Section 9
Establishing connection and verifying the IEEE C37.118/1344 communication
Line differential protection RED670 2.2 IEC 79
Commissioning manual
