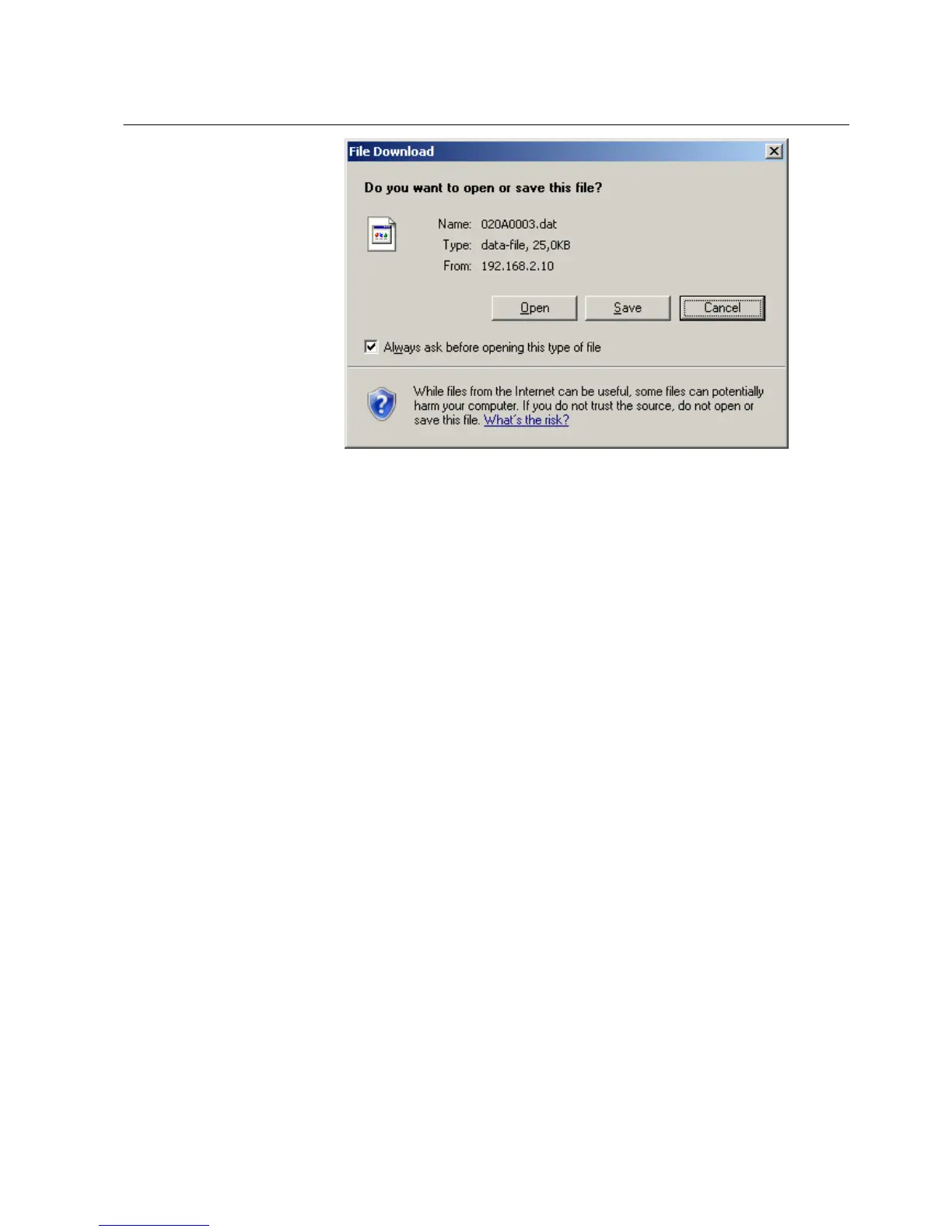

GUID-0280828D-0DFF-4C83-90A0-D8E57E17E51A V1 EN
3.
Save
both
the
files
in
the
same
folder
on
your
computer,
and
open
the
disturbance
record files with a suitable program.
4.2.11.2
Triggering the disturbance recorder manually
1.
Click
Disturbance records
on the menu bar.
2.
Click
Manual trigger
.
1MRS756708 A
Section 4
Using HMI locally or via web interface
615 series
55
Operation Manual
62
64
Table of Contents
Default Chapter
7
Safety Information
7
Table of Contents
9
Section 1 Introduction
15
This Manual
15
Intended Audience
15
Product Documentation
16
Product Documentation Set
16
Document Revision History
17
Related Documentation
17
Document Symbols and Conventions
18
Safety Indication Symbols
18
Document Conventions
18
Functions, Codes and Symbols
19
Section 2 Environmental Aspects
21
Sustainable Development
21
Disposing of the IED
21
Section 3 615 Series Overview
23
Overview
23
Lhmi
24
Lcd
24
Leds
26
Keypad
26
LHMI Functionality
29
Protection and Alarm Indication
29
Front Communication
30
Parameter Management
30
Whmi
31
Command Buttons
32
Authorization
33
Communication
34
PCM600 Configuration Tool
35
Connectivity Packages
35
PCM600 and IED Connectivity Package Version
36
Section 4 Using HMI Locally or Via Web Interface
37
Using LHMI
37
Logging in
37
Logging out
38
Turning Display Backlight on
39
Selecting Local or Remote Use
39
Identifying the Device
40
Adjusting Display Contrast
41
Changing LHMI Language
41
Changing Display Symbols
42
Navigating in the Menu
42
Menu Structure
43
Scrolling the LCD View
43
Browsing Setting Values
44
Changing the Default View
44
Editing Values
44
Editing Numerical Values
45
Editing Enumerated Values
46
Editing String Values
46
Committing Settings
47
Clearing and Acknowledging
48
Using LHMI Help
48
Using WHMI
49
Logging in
49
Logging out
49
Identifying the Device
50
Navigating in the Menu
51
Menu Structure
52
Showing All Parameters
52
Editing Values
54
Committing Settings
56
Clearing and Acknowledging
58
Selecting Alarm View
59
Selecting Event View
60
Selecting the Disturbance Record View
61
Uploading Disturbance Records
62
Triggering the Disturbance Recorder Manually
63
Deleting Disturbance Records
64
Selecting Phasor Diagrams
65
Selecting Disturbance Records
69
Using WHMI Help
69
Section 5 IED Operation
71
Normal Operation
71
Disturbance Identification
71
Disturbance Recording Triggering
72
Disturbance Record Analysis
72
Disturbance Reports
72
Internal IED Errors
72
IED Parametrization
73
IED Settings for IED Functionality
73
IED Settings for Different Operating Conditions
74
Section 6 Operating Procedures
75
Monitoring
75
Indications
75
Monitoring Indication Messages
75
Monitoring an Internal IED Fault
76
Monitoring Condition Monitoring Data
76
Measured and Calculated Values
76
Measured Values
76
Using LHMI for Monitoring
77
Recorded Data
77
Creating Disturbance Recordings
78
Monitoring Disturbance Recorder Data
78
Controlling and Uploading Disturbance Recorder Data
79
Monitoring Fault Records
79
Monitoring Events
80
Remote Monitoring
80
Operating IED Remotely
80
Controlling
81
Controlling Circuit Breakers and Disconnectors
81
Resetting IED
82
Clearing and Acknowledging Via LHMI
82
Changing IED Functionality
83
Defining Setting Group
83
Activating a Setting Group
83
Copying a Setting Group
84
Selecting a Setting Group for Editing
84
Browsing and Editing Setting Group Values
85
Activating Leds
87
Section 7 Troubleshooting
89
Fault Tracing
89
Identifying Hardware Errors
89
Identifying Runtime Errors
89
Identifying Communication Errors
89
Checking the Communication Link Operation
89
Checking the Time Synchronization
90
Running the Display Test
90
Indication Messages
90
Internal Faults
90
Warnings
92
LED and Display Messages
94
Correction Procedures
94
Rebooting Software
94
Restoring Factory Settings
94
Setting Password
94
Identifying IED Application Problems
95
Inspecting Wiring
95
Sample Data Interruptions
95
Section 8 Commissioning
97
Commissioning Checklist
97
Checking Installation
97
Checking the Power Supply
97
Checking CT Circuits
98
Checking VT Circuits
98
Checking Binary Input and Output Circuits
99
Binary Input Circuits
99
Binary Output Circuits
99
Authorizations
99
User Authorization
99
Using PCM600
100
Setting Communication between Ieds and PCM600
100
Communication Options
101
Setting Communication Parameters
101
Setting IED and Communication
106
Communication Settings
106
Serial Communication Ports and Drivers
106
Serial Link Diagnostics and Monitoring
107
Connecting Jumper Connectors
110
Defining Ethernet Port Settings
110
Defining Serial Port Settings
110
Setting Communication Protocol Parameters
110
Adjusting Display Contrast
111
Changing Display Symbols
111
Changing LHMI Language
111
Setting LHMI
111
Changing the Default View
112
Setting System Time and Time Synchronization
112
Defining Setting Groups
113
Setting IED Parameters
113
IED Parametrization
116
Configuring Analog Inputs
117
Defining Disturbance Recorder Channel Settings
117
Testing IED Operation
117
Selecting Test Mode
117
Testing Digital I/O Interface
118
Testing Functions
119
Selecting Internal Fault Test
119
ABB Product Data Registration
120
Section 9 Glossary
121
