A070858 V2 EN

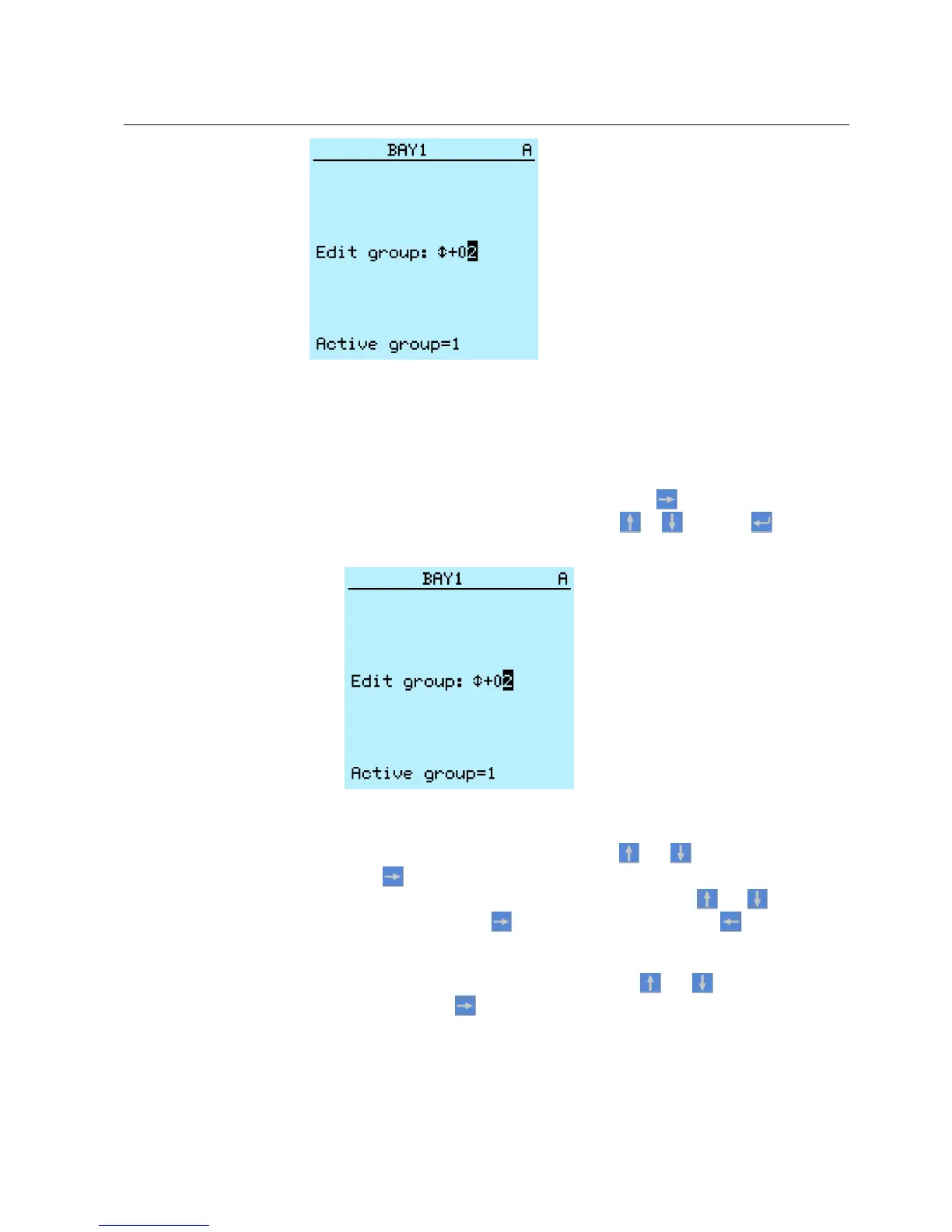

Figure 55: Selecting a setting group
6.4.1.4 Browsing and editing setting group values
1.
Select Main Menu/Settings/Settings and press
.
2.
Select the setting group to be viewed with or and press to confirm
the selection.
A071166 V2 EN
Figure 56: Selecting setting group
3.
To browse the settings, scroll the list with and and to select a setting
press .
4.
To browse different function blocks, scroll the list with and and to select
a function block press . To move back to the list, press .
The function block list is shown in the content area of the display. On the left
in the header, you see the current setting group, and on the right the menu path.
5.
To browse the parameters, scroll the list with and and to select a
parameter, press .
The setting group values are indicated with #.
1MRS756708 A Section 6
Operating procedures
615 series 77
Operation Manual
