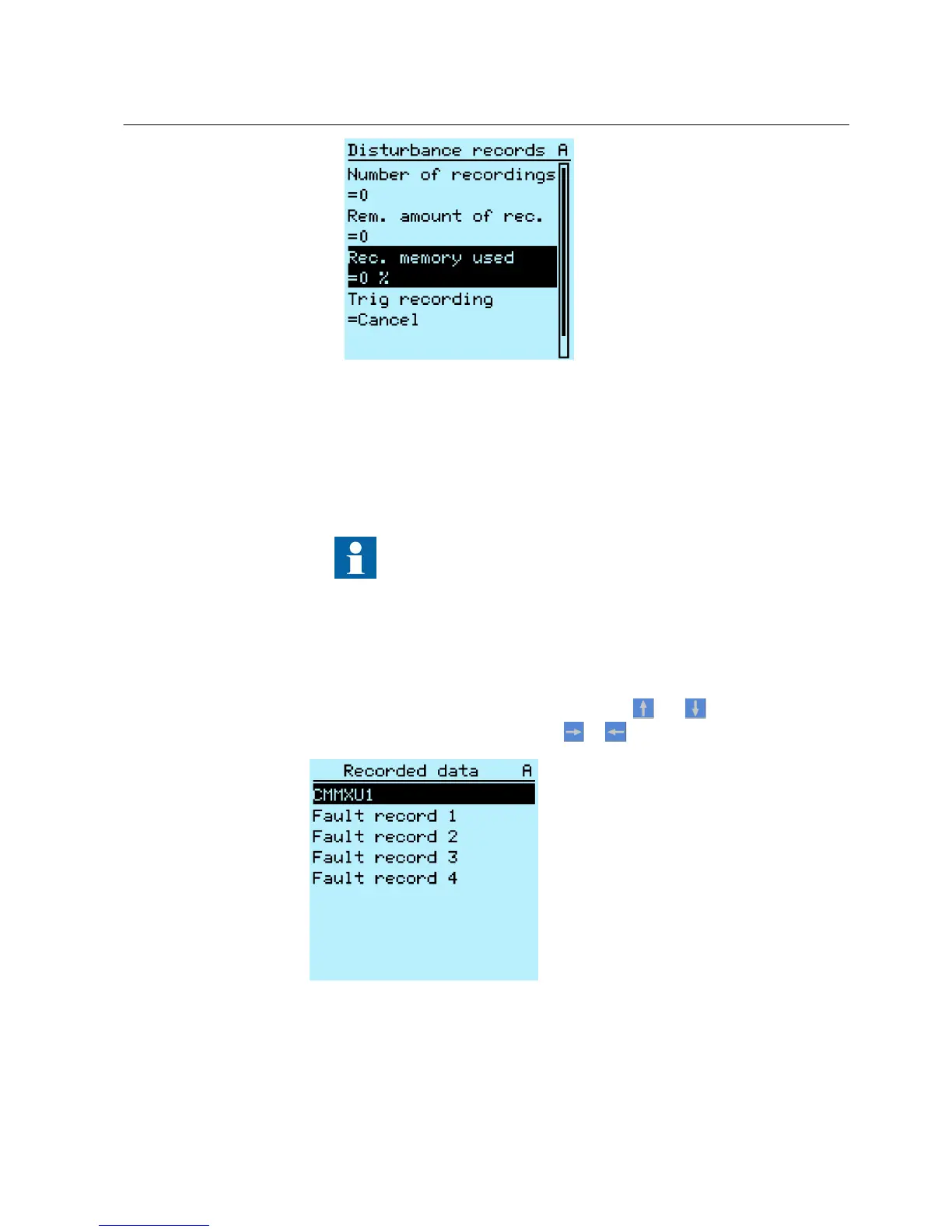

Figure 47: Monitoring disturbance recorder via the LHMI
6.1.3.3 Controlling and uploading disturbance recorder data
Disturbance recorder data can be controlled and read with PCM600. It can also be
uploaded via WHMI.
For more information, see PCM600 documentation.
6.1.3.4 Monitoring fault records
1. Select Main Menu/Monitoring/Recorded data.
2.
To navigate between the fault records, press
and .
3.
To enter or exit a submenu, press or .
A071146 V2 EN
Figure 48: Monitoring fault records
1MRS756708 A Section 6
Operating procedures
615 series 71
Operation Manual
