ABB RMC-100 User Manual

2105552MNAE | RMC-100 | 15

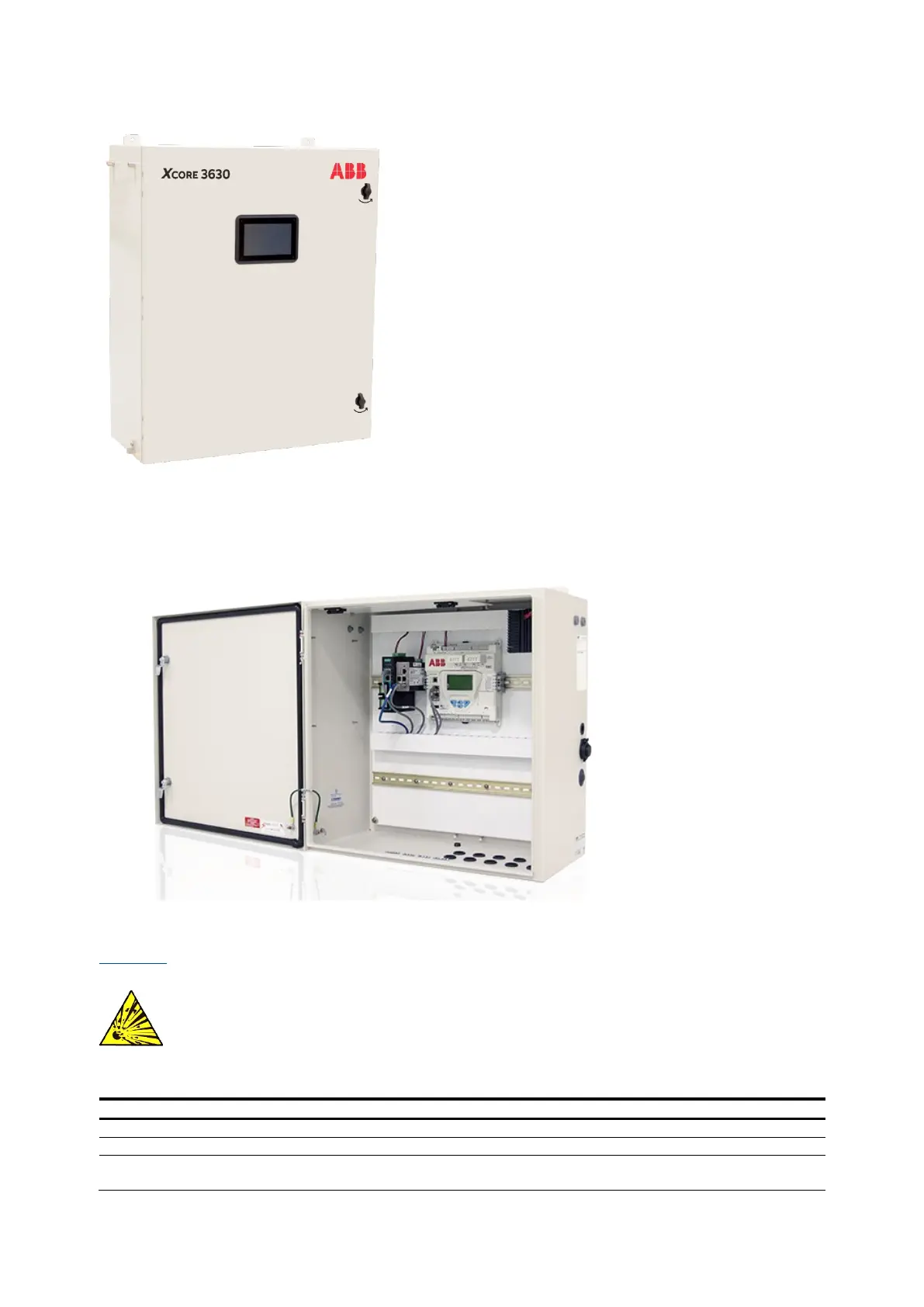

Figure 2-4: Xcore 3630 medium size enclosure (front view)
Figure 2-5: Xcore 2424 small size enclosure (internal view displays installed RMC)
2.2 Electronic board
Table 2-3 provides the electronic board component specifications. All RMC input and output
connections have snap-in connector terminals.
DANGER
– Serious damage to health / risk to life.
Explosion Hazard: Do not connect or
disconnect connectors or their terminations while energized unles
s the area is known to be
non
-hazardous.
Table 2-3: RMC-100 electronic board specifications
Component
Description
Core processor
Cortex A8 processor
Operating speed
300 MHZ, or 720 MHZ option at time of purchase
Memory
256 Mbyte mDDR
Application data and configuration files permanently stored in eMMC

ABB RMC-100 Specifications

General

Brand	ABB
Model	RMC-100
Category	Controller
Language	English
