80 | RMC-100| 2105552MNAE

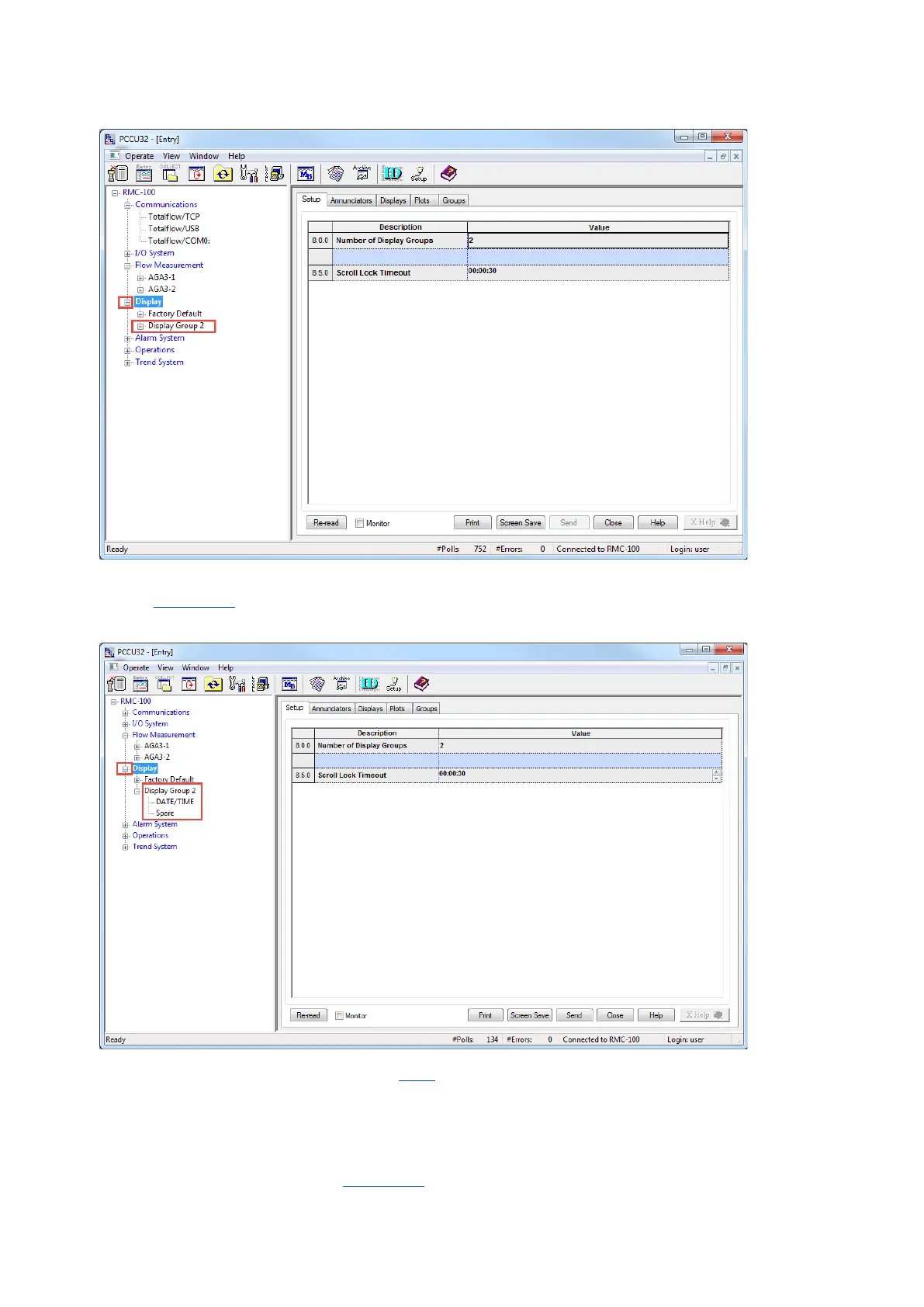

Figure 5-9: New display group - default name
6. Expand Display Group 2. The group displays two default display items: DATE/TIME and Spare
(Figure 5-10
). DATE/TIME displays the RMC current date and time. Spare is undefined.
Figure 5-10: Default display group and items
7. Configure the new group in section 5.4.3
Configure a display group.
For more information, click Help.
5.4.2 Assign annunciators
An annunciator is a display item on the LCD that indicates the status of a variable. Assign an
annunciator to an instantiated application on the RMC. The default display configuration might already
have annunciators assigned, as in Figure 5-11
. The LCD displays the indicators that apply to the
