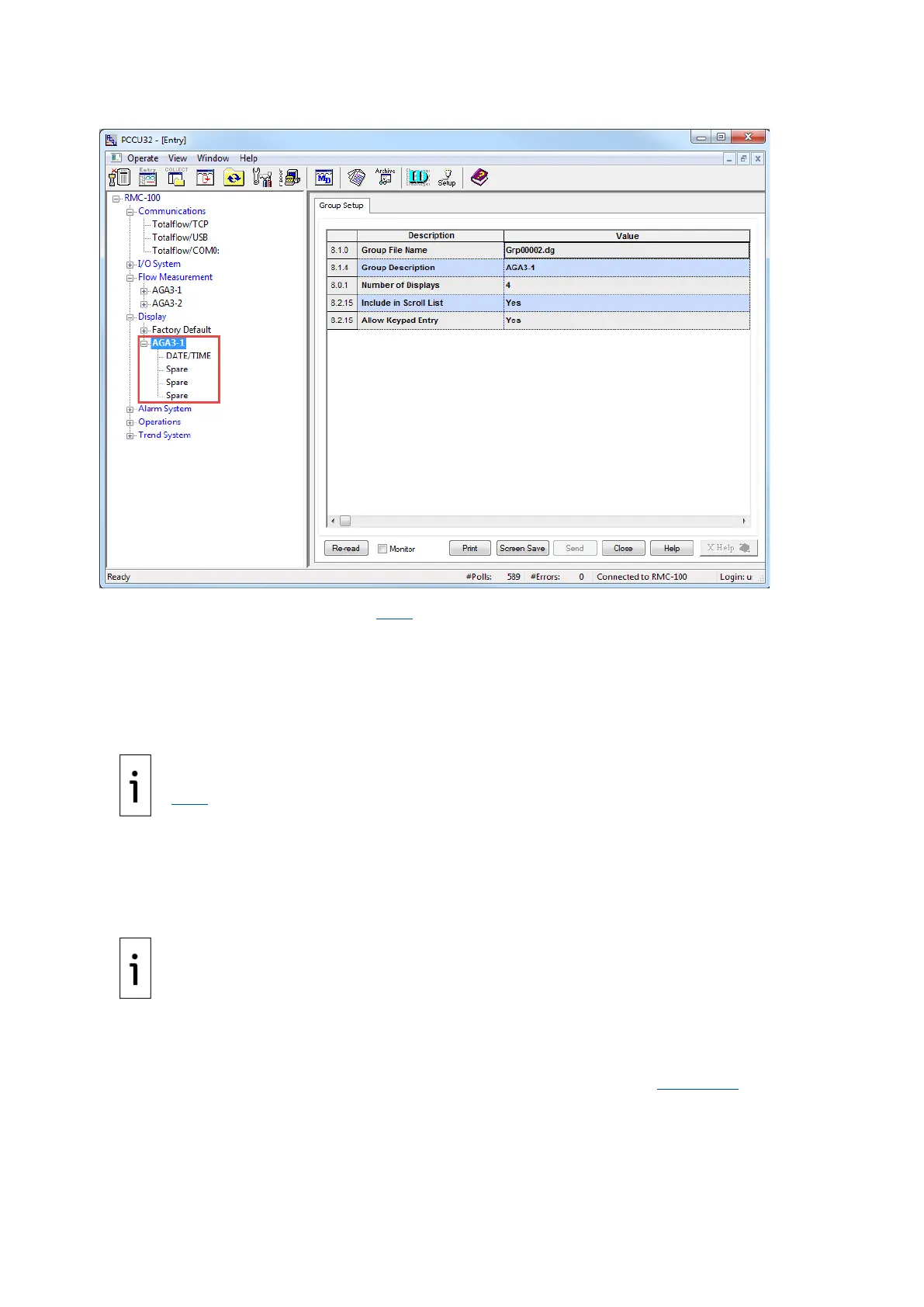

Figure 5-18: Number of group display items
8. Configure each item per section 5.4.4
.
For more information, click Help.
5.4.4 Configure group display items
This procedure describes how to configure group display items.
Basic item configuration defines the name of the item, the register number to obtain the value of the
item, and its display interval. This procedure accepts the default values for all other parameters.
IMPORTANT NOTE: This procedure configures a spare item in the display group created in section
5.4.3
.
The display item name can be an application variable, constant or parameter name. Determine the
RMC register address that stores the value for that parameter. The Display application obtains the
value from that register and displays it on the LCD. Match item names with actual application
parameter names provided the number of characters does not exceed the maximum supported by the
LCD. Shorten parameter names as necessary.
IMPORTANT NOTE:
Each item uses two lines on the LCD display. The first line is the item name.
The second line is the value and unit of measurement.
To configure each display item:
1. Decide which parameter to assign to the spare item.
a. Click the application assigned to the display group on the navigation tree. In this example,
click AGA3-1 under Flow Measurement. The Current screen displays (Figure 5-19
).
b. Determine the parameter required. This example uses Volume Flow Rate for AGA3-1 to
configure the spare display item.
