170 | RMC-100| 2105552MNAE

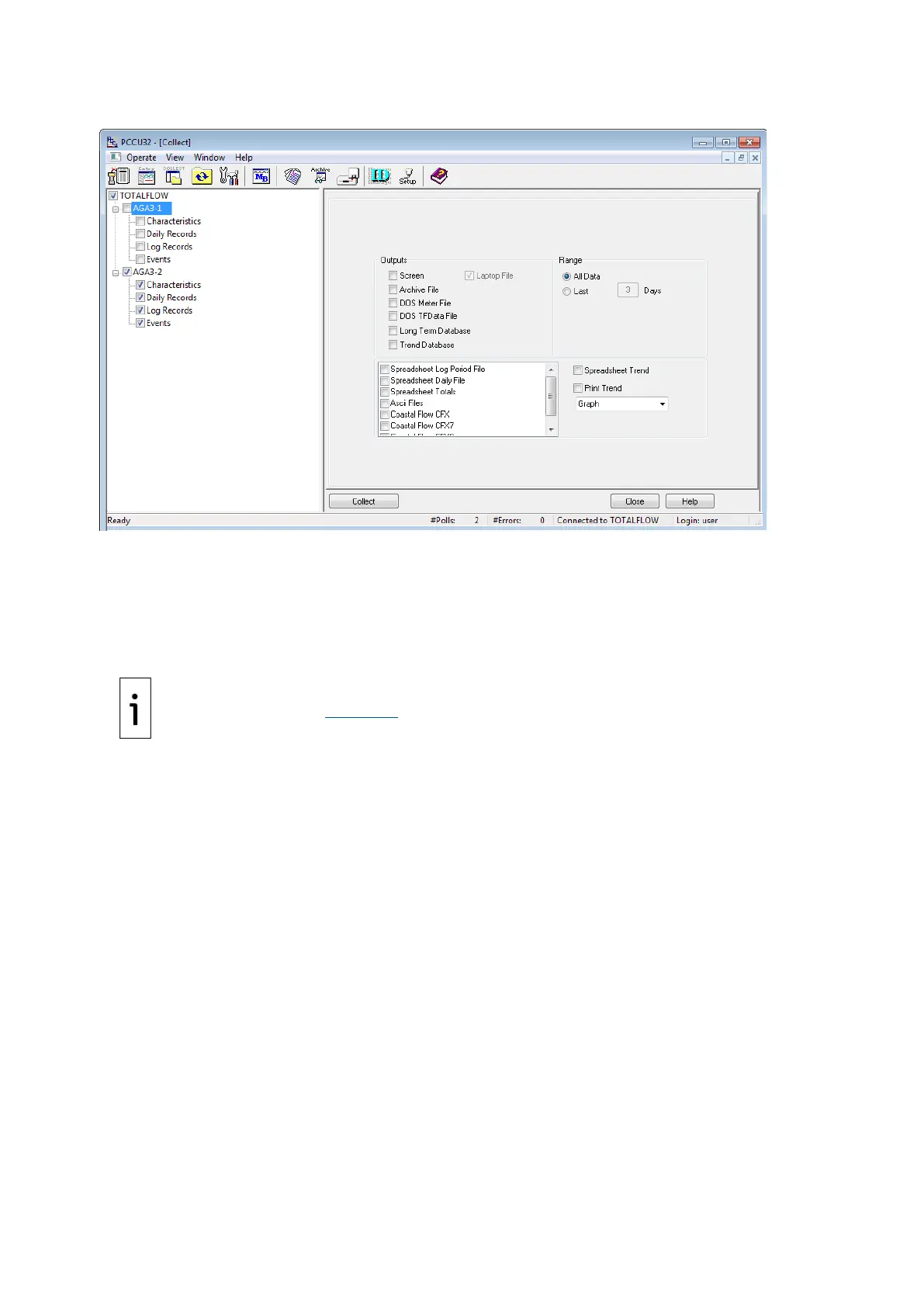

Figure 8-2: Collect screen
5. Click one or more output types from the Outputs list to send the data to other locations in
addition to the laptop. The option to display the data on the screen is automatically selected.
6. Select the range of data to be collected.
7. Click Collect.
8. Click Close to close the output screen if it displays.
9. Click Close to exit the Collect screen.
10. Navigate to the collected data file on your laptop.
IMPORTANT NOTE:
The data file might be in a default or user-
defined location based on the PCCU
directory path setup (
Figure 8-3). The path for collected data is the Data File Path. The default
location for data or laptop files is the pccudata directory in PCCU the insta
llation directory.
