140 Chapter 5

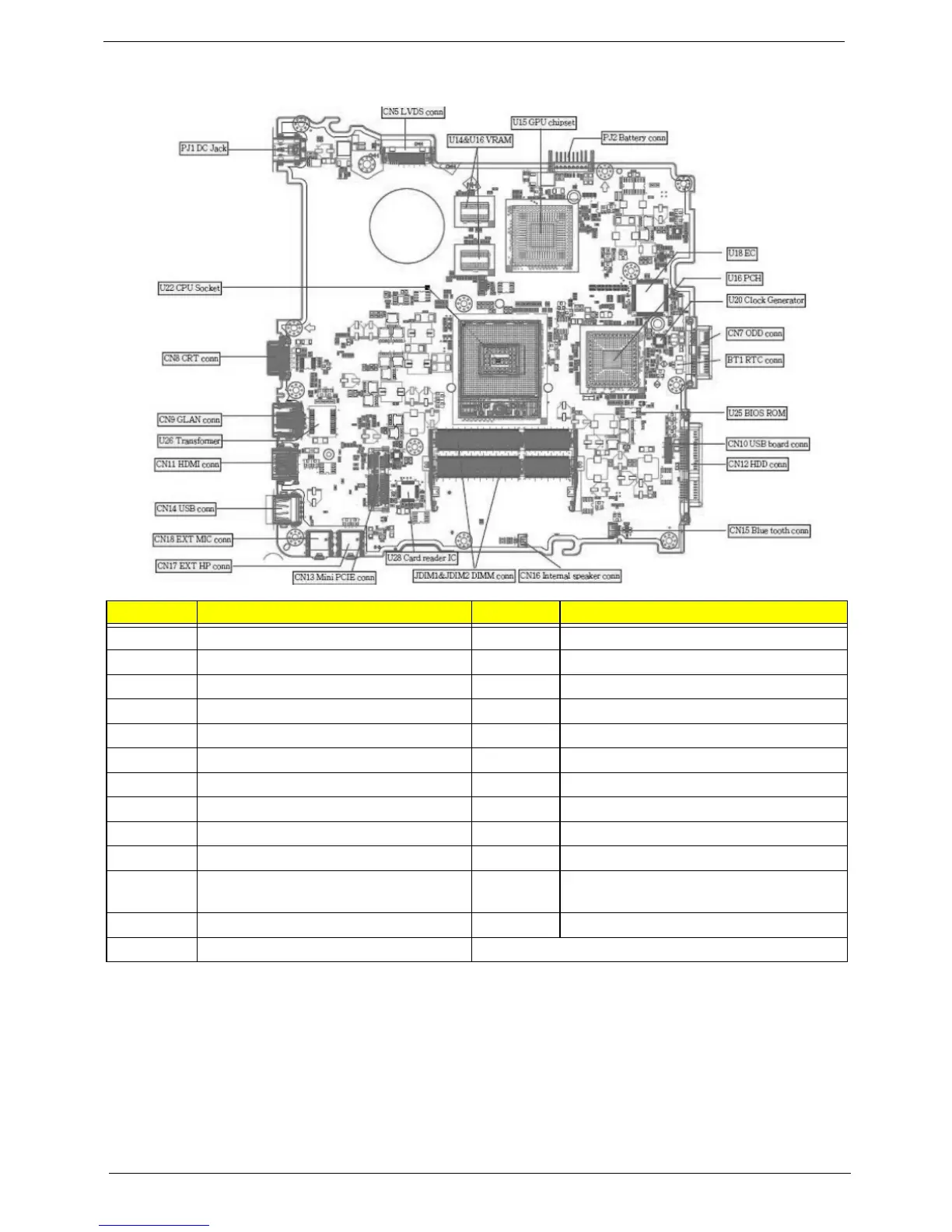

Bottom View

Item Description Item Description

PJ1 DC JACK CN12 HDD CONN

U22 CPU SOCKET CN10 USB BOARD CONN

CN8 CRT CONN U25 BIOS ROM

CN9 GLAN CONN BT1 RTC CONN

U26 TRANSFORMER CN7 ODD CONN

CN11 HDMI CONN U20 CLOCK GENERATOR

CN14 USB CONN U16 PCH

CN18 EXT MIC CONN U18 EC

CN17 EXT HP CONN PJ2 BATTERY CONN

CN13 MINI PCIE CONN U15 GPU CHIPSET

JDIM1 &

JDIM2

DIMM CONN U14&U16 VRAM

CN16 INTERNAL SPEAKER CONN CN5 LVDS CONN

CN15 BLUETOOTH CONN
