Acer Aspire 4738Z User Manual

Chapter 3 71
Removing the Thermal Module
1. See “Disassembly Overview” on page 60.

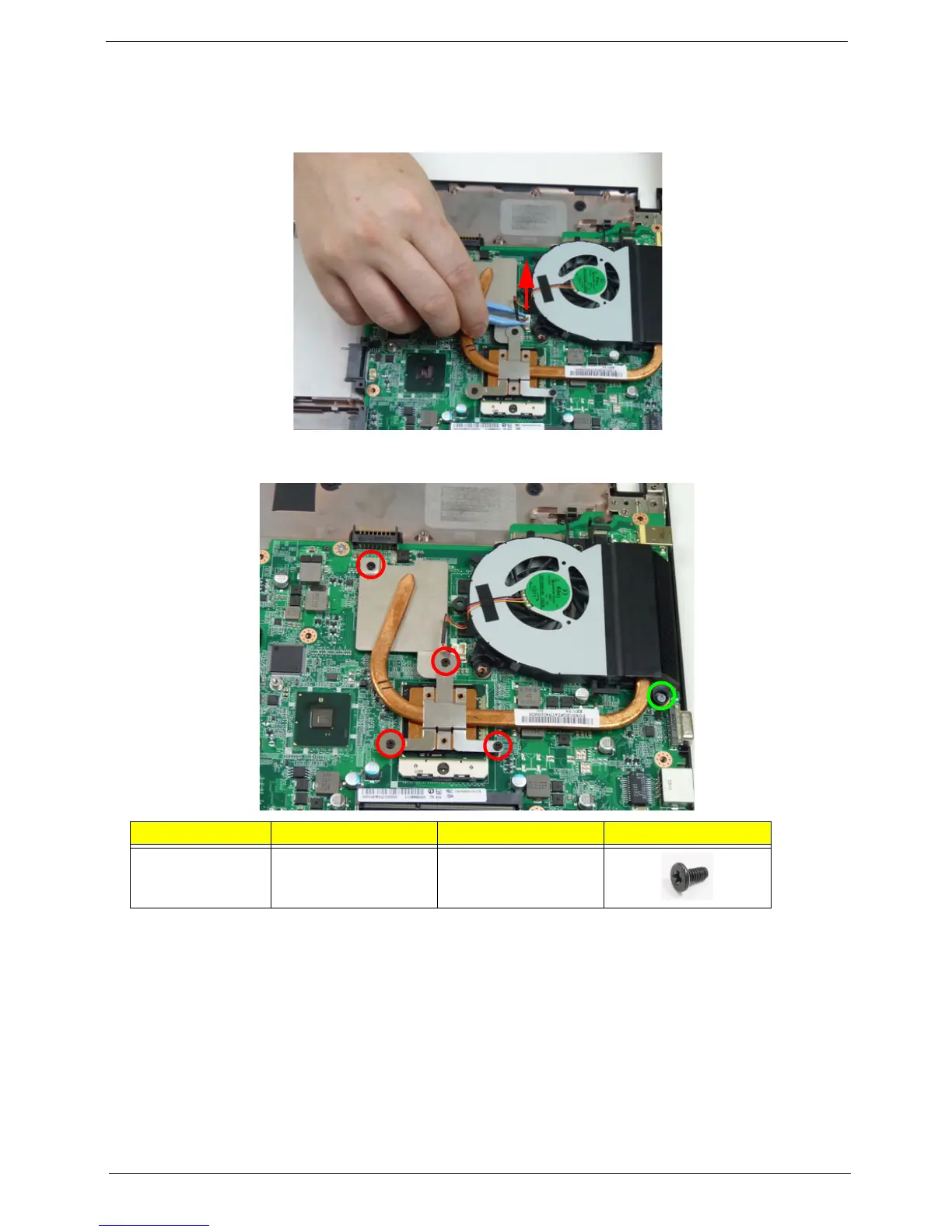

2. Disconnect the fan cable as shown.
3. Loosen the four (4) captive screws (in numerical order from 1 to 4) and remove the one (1) screw from the fan
module.
Step Size Quantity Screw Type
Thermal Module
Disassembly
M2.5*4.0 (green
callout)
1
2
3
1
4

Acer Aspire 4738Z Specifications

General

RAM	2GB DDR3
Graphics	Intel HD Graphics
Weight	2.2 kg
Optical Drive	DVD-Super Multi DL drive
Wireless	802.11b/g/n
LAN	Gigabit Ethernet
Webcam	Acer Crystal Eye webcam
Card Reader	Multi-in-1 card reader
Display	14.0 inch HD LED LCD
Operating System	Windows 7 Home Premium
Battery	6-cell Li-ion
Ports	3 x USB 2.0, 1 x HDMI, 1 x VGA
Dimensions	342 x 245 x 34.2 mm (13.46 x 9.65 x 1.35 inches)
Processor	Intel Pentium P6200
