72 Chapter 3

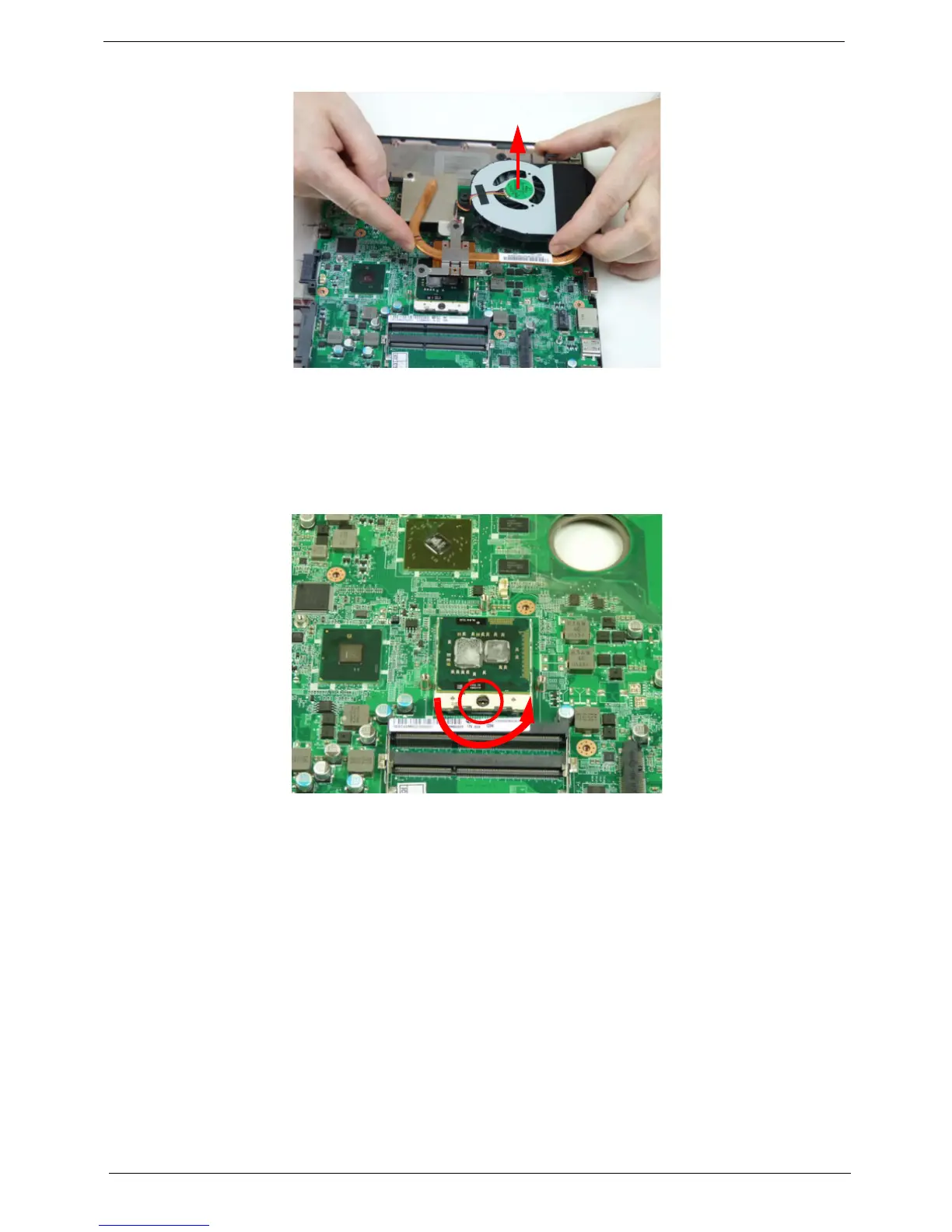

4. Carefully lift up the thermal module assembly and remove it from the mainboard.
IMPORTANT:Place the thermal module on a clean, dry surface when it is not installed.
Removing the CPU
1. See “Removing the Thermal Module” on page 71.
2. Using a slotted screw driver, rotate the CPU locking screw 180° counter-clockwise as shown.

Acer Aspire 4738Z Specifications

General

RAM	2GB DDR3
Graphics	Intel HD Graphics
Weight	2.2 kg
Optical Drive	DVD-Super Multi DL drive
Wireless	802.11b/g/n
LAN	Gigabit Ethernet
Webcam	Acer Crystal Eye webcam
Card Reader	Multi-in-1 card reader
Display	14.0 inch HD LED LCD
Operating System	Windows 7 Home Premium
Battery	6-cell Li-ion
Ports	3 x USB 2.0, 1 x HDMI, 1 x VGA
Dimensions	342 x 245 x 34.2 mm (13.46 x 9.65 x 1.35 inches)
Processor	Intel Pentium P6200
