Acer Aspire 4738Z User Manual

Chapter 6 147

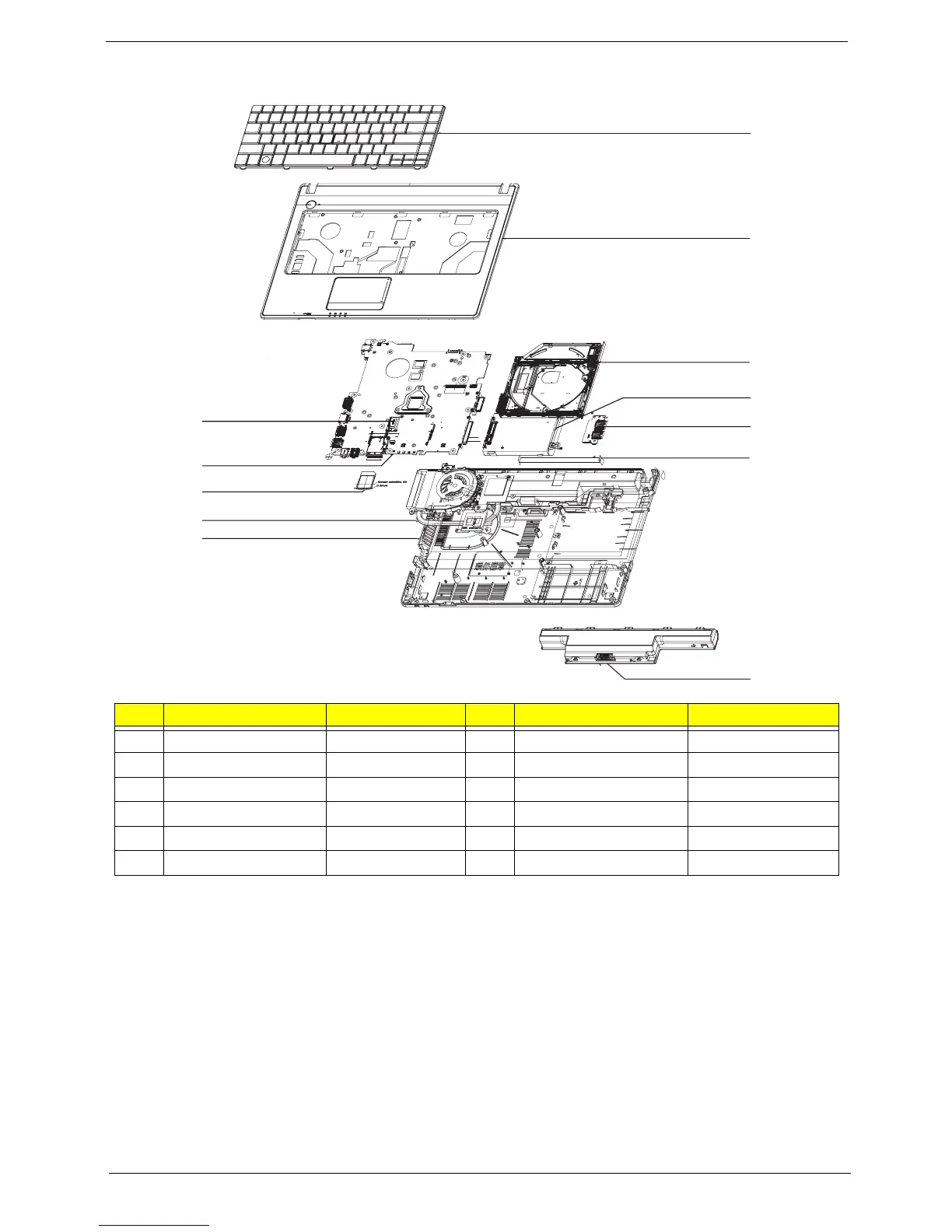

Chassis Assembly
No. Description Acer P/N No. Description Acer P/N
1 Bluetooth module
BH.21100.006
7 Upper cover 60.R6Z07.001
2 Mainboard MB.R5X06.001 8 ODD 6M.R6W07.001
3 Dummy card 42.PSR07.002 9 HDD
KH.16001.045
4 Thermal module 60.R6W07.001 10 USB board
55.R6W07.001
5 Base assy 60.R6Z07.007 11 USB FFC
50.R6Z07.001
6 Keyboard
KB.I140A.204
12 Battery
BT.00603.111
6
7
8
9
10
11
12
4
4
3
5
4
1
2

Acer Aspire 4738Z Specifications

General

RAM	2GB DDR3
Graphics	Intel HD Graphics
Weight	2.2 kg
Optical Drive	DVD-Super Multi DL drive
Wireless	802.11b/g/n
LAN	Gigabit Ethernet
Webcam	Acer Crystal Eye webcam
Card Reader	Multi-in-1 card reader
Display	14.0 inch HD LED LCD
Operating System	Windows 7 Home Premium
Battery	6-cell Li-ion
Ports	3 x USB 2.0, 1 x HDMI, 1 x VGA
Dimensions	342 x 245 x 34.2 mm (13.46 x 9.65 x 1.35 inches)
Processor	Intel Pentium P6200
