Disassembly Overview
1. See “Removing the Lower Cover” on page 58.

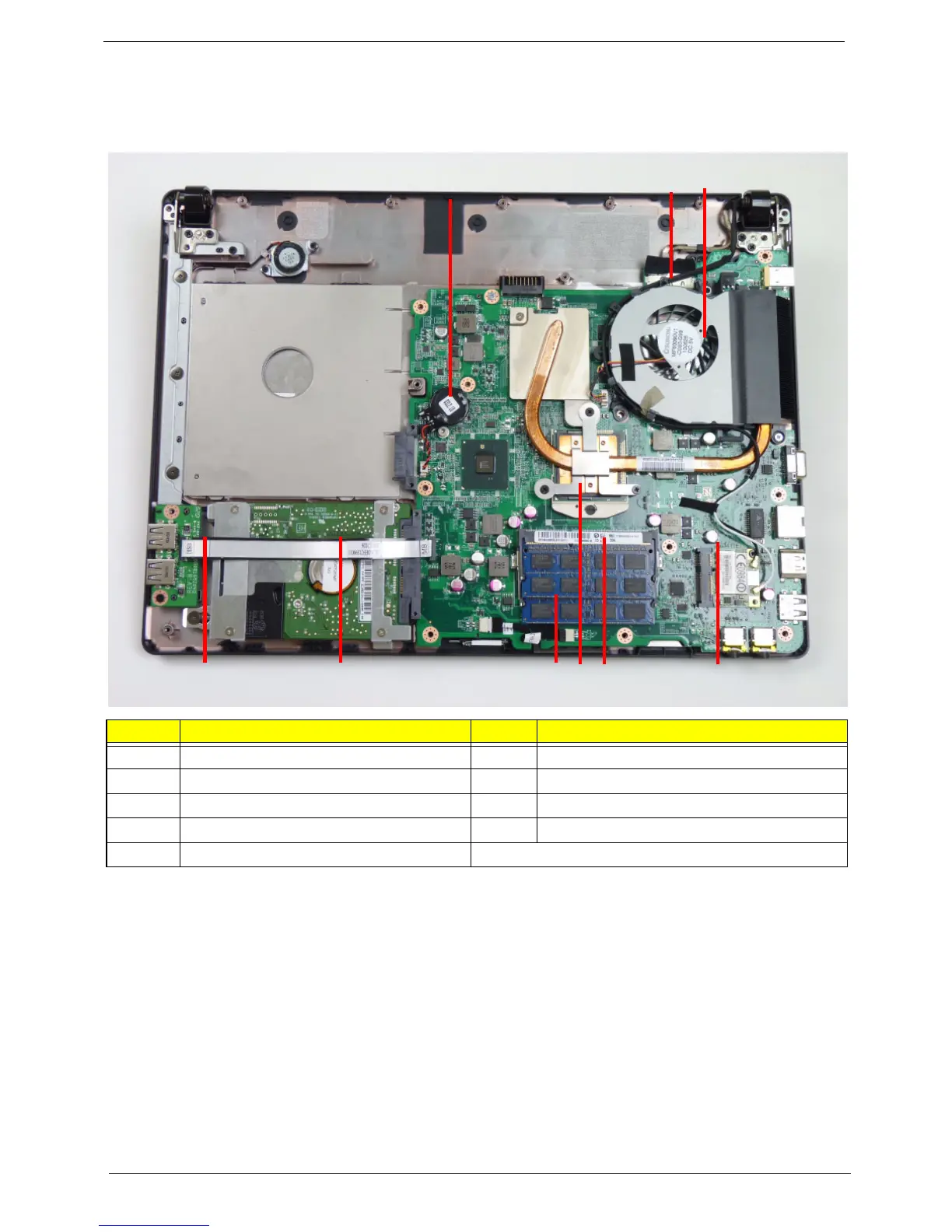

2. This section is an overview of the major components of the main unit.
Item Description Item Description
1 RTC battery 6 CPU
2 LVDS cable 7 Bluetooth cable
3 Thermal module 8 HDD
4 WLAN module 9 USB module
5 DIMM module(s)
7 6 5
4
89
1
2
3

Acer Aspire 4738Z Specifications

General

RAM	2GB DDR3
Graphics	Intel HD Graphics
Weight	2.2 kg
Optical Drive	DVD-Super Multi DL drive
Wireless	802.11b/g/n
LAN	Gigabit Ethernet
Webcam	Acer Crystal Eye webcam
Card Reader	Multi-in-1 card reader
Display	14.0 inch HD LED LCD
Operating System	Windows 7 Home Premium
Battery	6-cell Li-ion
Ports	3 x USB 2.0, 1 x HDMI, 1 x VGA
Dimensions	342 x 245 x 34.2 mm (13.46 x 9.65 x 1.35 inches)
Processor	Intel Pentium P6200
