Chapter 3 57

Main Unit Disassembly Process

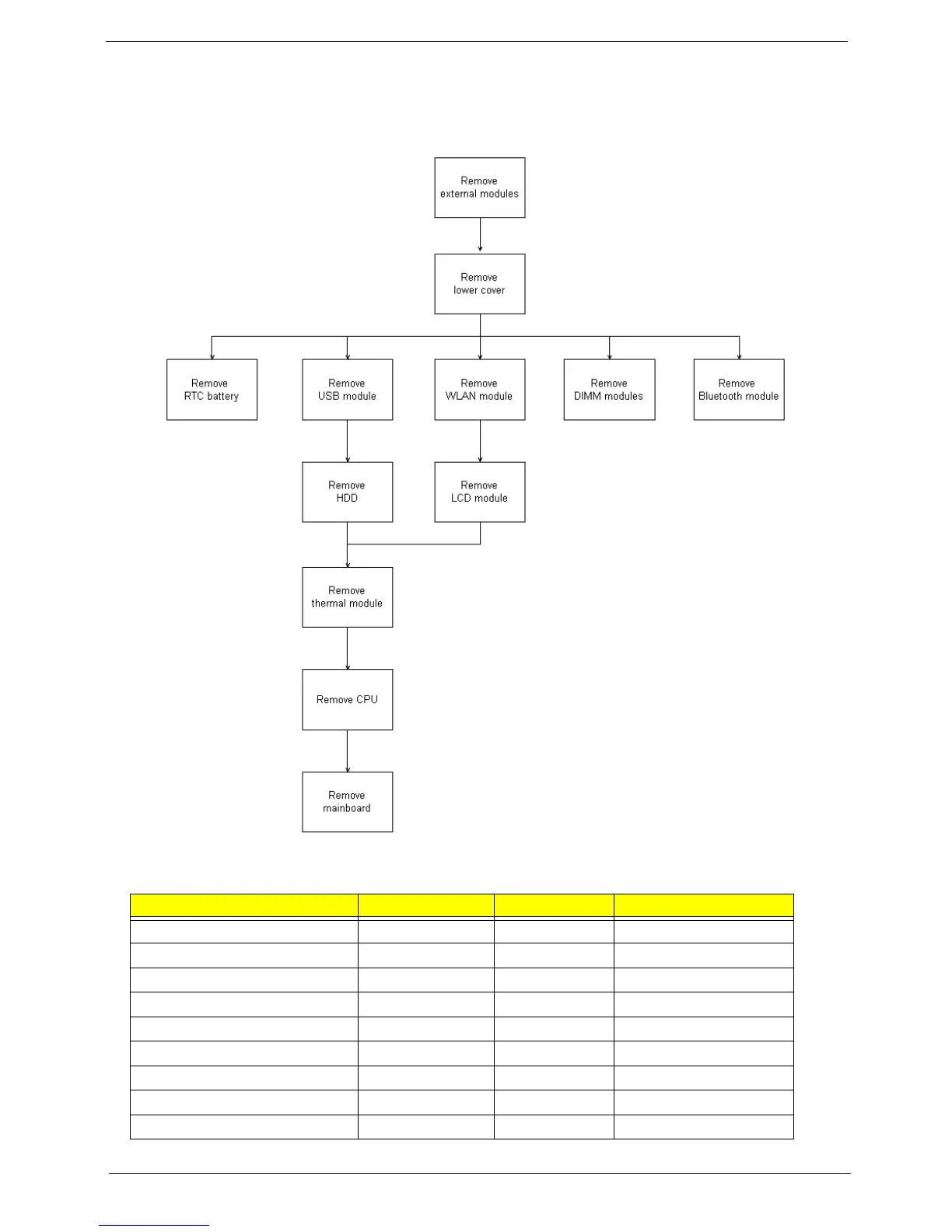

Main Unit Disassembly Flowchart

Screw List

Step Screw Quantity Part No.

Lower Cover M2.5*6.5 17 86.ARE07.001

Battery Bay M2.0*3.0 6 86.ARE07.002

WLAN Module Disassembly M2.0*3.0 1 86.ARE07.002

USB Module Disassembly M2.5*4.0 1 86.ARE07.002

HDD Module M2-0.4*2 1 86.W4107.002

HDD Carrier Disassembly M3.0*3.5 4 86.N1407.007

LCD Module Disassembly M2.5*6.5 4 86.ARE07.001

Thermal Module Disassembly M2.5*4.0 1 86.EDM07.003

Mainboard Disassembly M2.5*4.0 1 86.EDM07.003
