146 Chapter 6

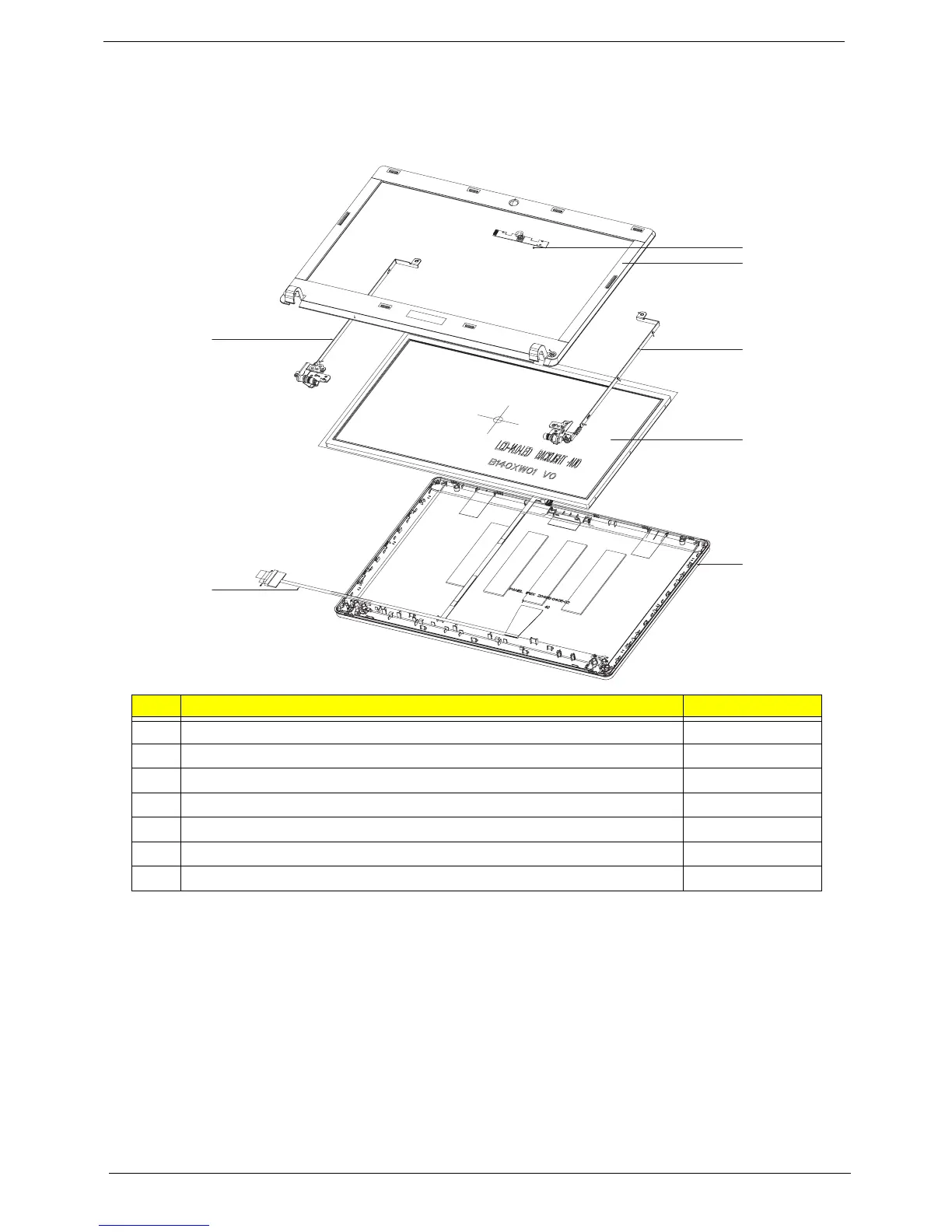

Exploded Diagrams
LCD Assembly
No. Description Acer P/N
1 Left hinge 33.R6Z07.004
2 LVDS cable assy 50.R6Z07.004
3 Camera AM.21400.067
4 LCD bezel 60.R6Z07.010
5 Right hinge
33.R6Z07.005
6LCD Panel
LK.14008.004
7 LCD cover 60.R6Z07.009
3
5
4
7
2
1
6
