Publication 2711P-UM001A-EN-P
6-8 Terminal Connections
Ethernet Connections
The base configured unit of the PanelView Plus terminal has an
Ethernet port that supports:
• EtherNet/IP communications
• third party Ethernet communications
• network connections
• application uploads/downloads
• printing
Ethernet Connector
The base unit configured unit of the PanelView Plus terminal has an
RJ45, 10/100Base-T connector for EtherNet/IP or Ethernet TCP/IP
network communications.

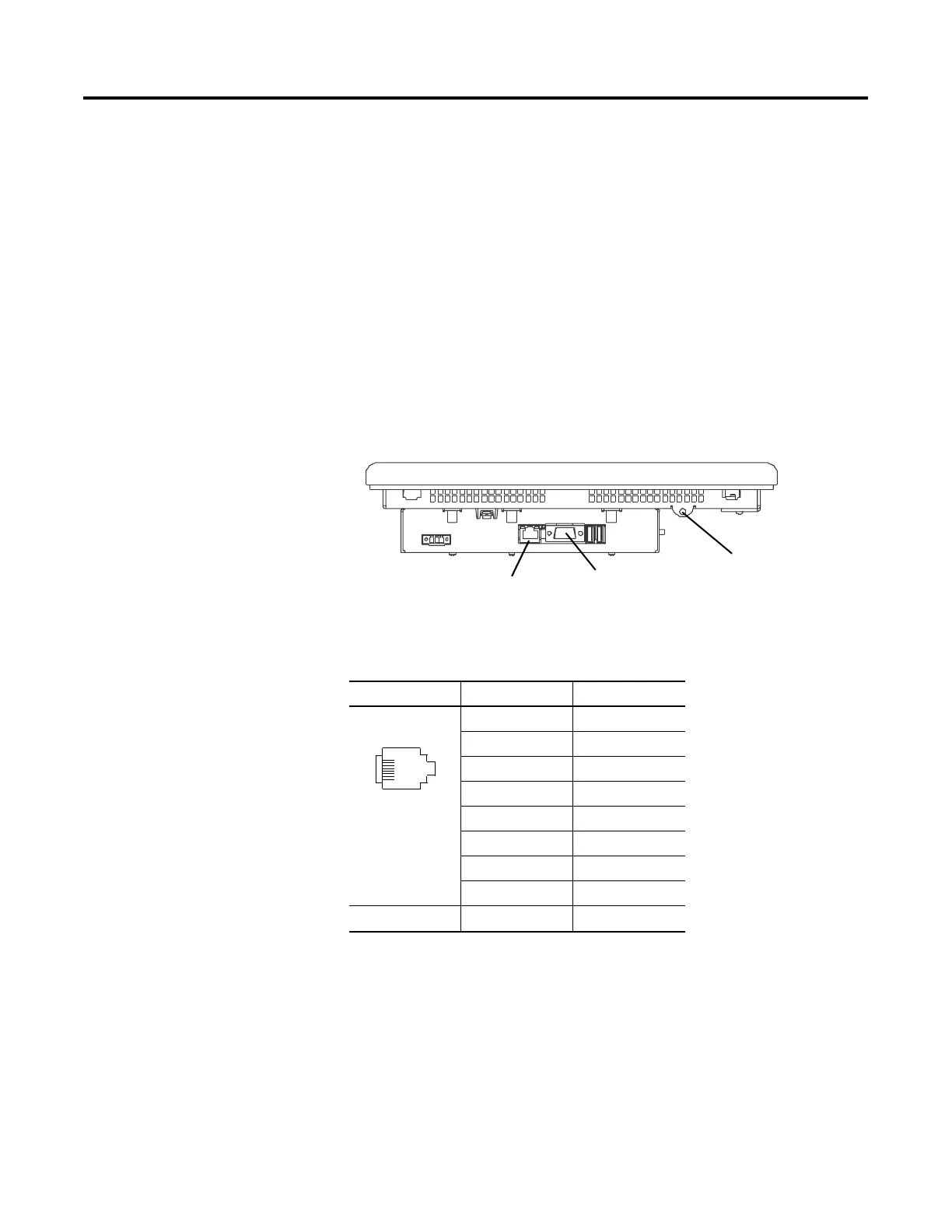

The connector pinout is shown below.
Use point-to-point, 10/100Base-T cables with cross over pin-outs
(such as 2711P-CBL-EX04) when connecting the Ethernet port on the
PanelView Plus directly to a logic controller’s Ethernet port or a
computer 10/100Base-T port. Use standard Ethernet cables when
connecting to a switch or hub.
Pin Pin Pin Name
RJ45
Connector
1TD+
2TD-
3RD+
4NC
5NC
6RD-
7NC
8NC
Shield Connection Chassis Gnd
Ethernet Port
Use RS-232 serial port to
transfer applications or print.
Insert tie in hole and
use as strain relief for
all attached cables.
1
8
