Publication 2711P-UM001A-EN-P
Installing and Replacing Components 5-11
Replacing Bezel

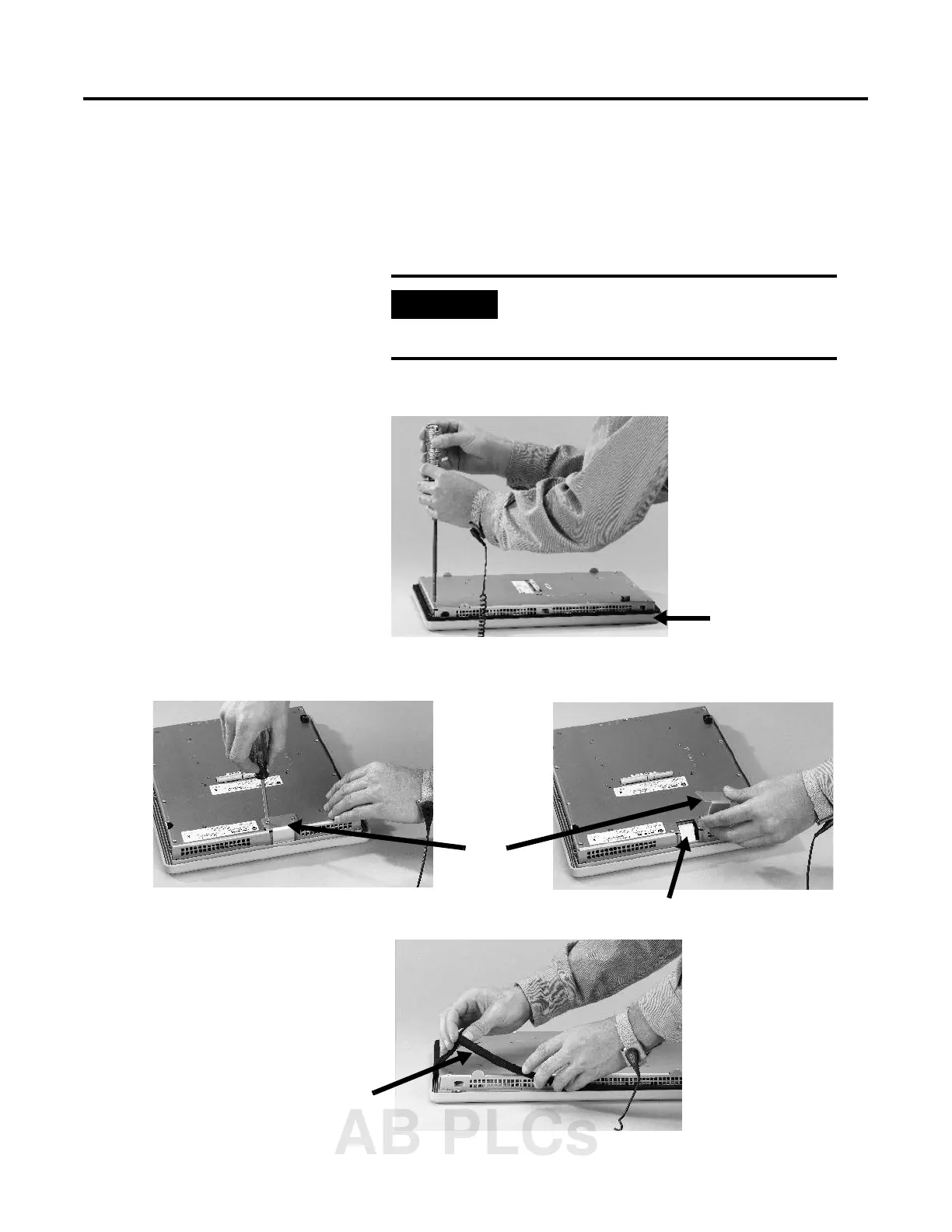

Removing Display Module Bezel
It is not necessary to remove the Logic Module or Communication
Module before removing the bezel, except for the PanelView Plus 700.
1. Disconnect power from the terminal.
2. Set the terminal, display side down, on a flat stable surface.
3. Remove the screws from the back of the Display Module. The
number of screws varies for each terminal type.
4. On touch screen terminals, remove the 2 screws that secure the
small metal plate to the back of the Display Module.
5. Remove the sealing gasket.
IMPORTANT
Wear a properly ground ESD wristband
before touching any of the electronic
components in the Logic Module.
Display Module Bezel
This step applies to Touch Screen only
terminals.
Plate
Touch Screen Connector
Sealing
Gasket
