B-2 HIM Overview
The top line of the HIM display can be configured with [DPI Fdbk Select], parameter 299
(Vector firmware 3.xxx and later).
To use an ALT function, press the ALT key, release it, then press the
programming key associated with one of the following functions:

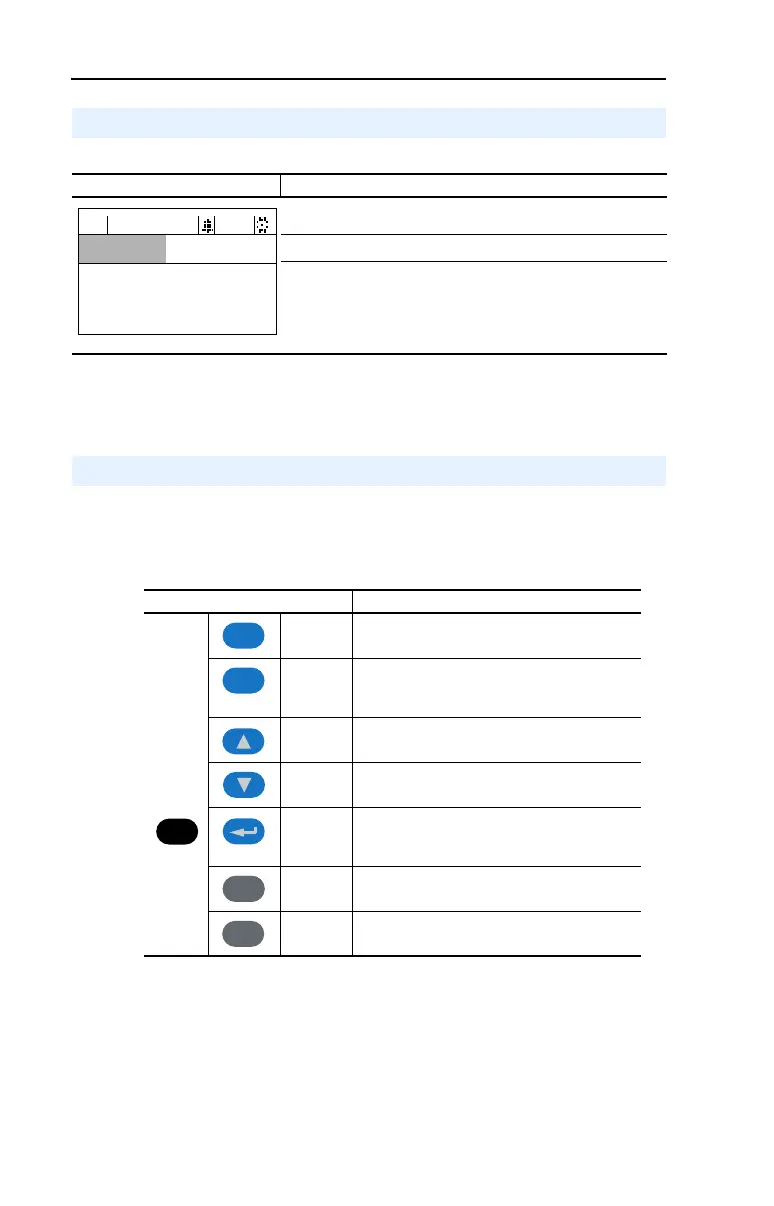

Table B.A ALT Key Functions
LCD Display Elements
Display Description
Direction Drive Status Alarm Auto/Man Information
Commanded or Output Frequency
Programming / Monitoring / Troubleshooting
F-> Power Loss Auto
0.0
Hz
Main Menu:
Diagnostics
Parameter
Device Select
ALT Functions
ALT Key and then … Performs this function …
S.M.A.R.T. Displays the S.M.A.R.T. screen.
View Allows the selection of how parameters will be
viewed or detailed information about a
parameter or component.
Lang Displays the language selection screen.
Auto / Man Switches between Auto and Manual Modes.
Remove Allows HIM removal without causing a fault if the
HIM is not the last controlling device and does
not have Manual control of the drive.
Exp Allows value to be entered as an exponent
(Not available on PowerFlex 700).
Param # Allows entry of a parameter number for viewing/
editing.
ALT
Esc
Sel
..
+/–
To Next Page
