2-2 Start Up
Applying Power to the Drive
❏ 4. Apply AC power and control voltages to the drive.
If any of the six digital inputs are configured to “Stop – CF”
(CF = Clear Fault) or “Enable,” verify that signals are present or
reconfigure [Digital Inx Sel]. If an I/O option is not installed (i.e. no
I/O terminal block), verify that [Digital Inx Sel] is not configured to
“Stop – CF” or “Enable.” If this is not done, the drive will not start.
Refer to Alarm Descriptions
on page 4-10 for a list of potential
digital input conflicts. If a fault code appears, refer to Chapter
4.
If the STS LED is not flashing green at this point, refer to Status
Indicators below.
❏ 5. Proceed to Start-Up Routines.

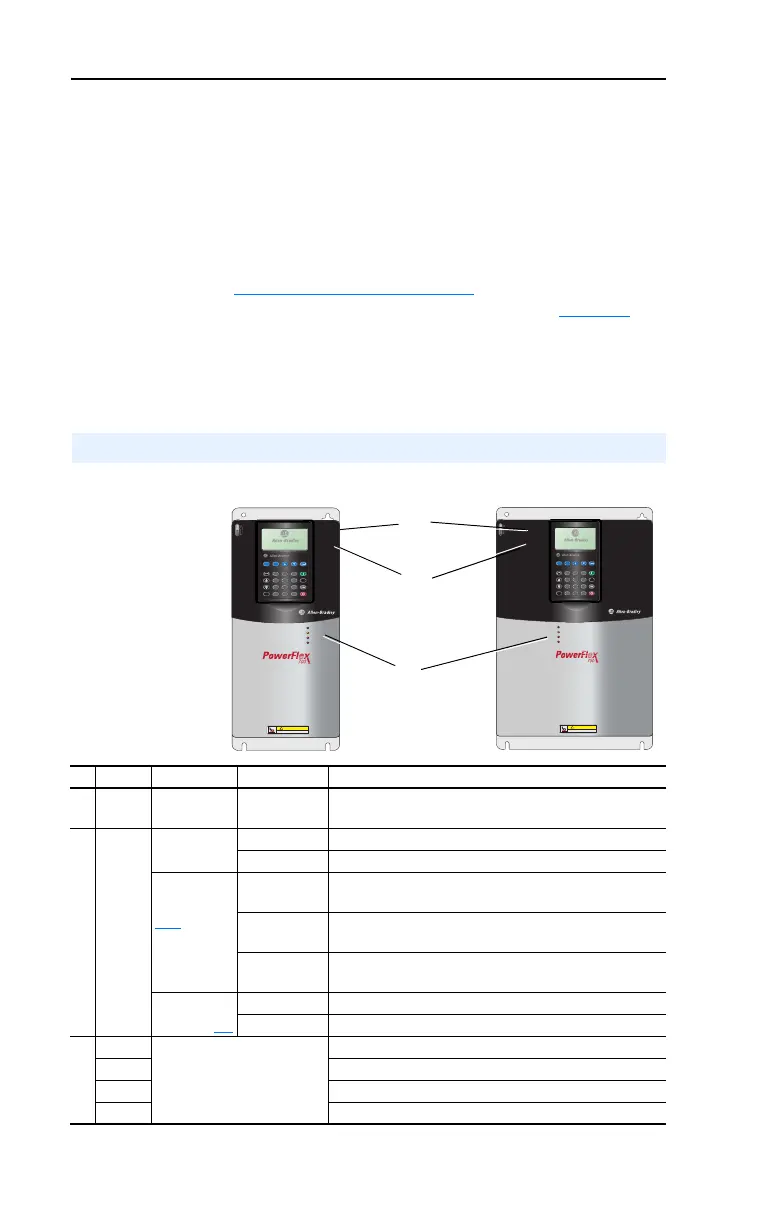

Figure 2.1 Drive Status Indicators
Status Indicators
➊
➋
Esc
7 8 9
4 5 6
1 2 3
.
0 +/-
Sel
Jog
Alt
POWER
STS
PORT
MOD
NET A
NET B
Exp
Param #
S
.M
.A
.R
.T
.
E
x
it
L
a
n
g
A u
to
/
M
a
n
R e
m
o
v
e
HOT surfaces can cause severe burns
CAUTION
➌
Esc
7 8 9
4 5 6
1 2 3
.
0 +/-
Sel
Jog
Alt
POWER
STS
PORT
MOD
NET A
NET B
Exp
Param #
S
.M
.A
.R
.T
.
E
x
it
L
a
n
g
A u
to
/ M
a
n
R e
m
o
v
e
HOT surfaces can cause severe burns
CAUTION
Frames
0 & 1
Frames
2 & 3
# Name Color State Description
➊
PWR
(Power)
Green Steady Illuminates when power is applied to the drive.
➋
STS
(Status)
Green Flashing Drive ready, but not running and no faults are present.
Steady Drive running, no faults are present.
Yellow
See page
4-10
Flashing,
Drive Stopped
A start inhibit condition exists, the drive cannot be
started. Check parameter 214 [Start Inhibits].
Flashing,
Drive Running
An intermittent type 1 alarm condition is occurring.
Check parameter 211 [Drive Alarm 1].
Steady,
Drive Running
A continuous type 1 alarm condition exists.
Check parameter 211 [Drive Alarm 1].
Red
See page 4-4
Flashing Fault has occurred. Check [Fault x Code] or Fault Queue.
Steady A non-resettable fault has occurred.
➌
PORT Refer to the Communication
Adapter User Manual.
Status of DPI port internal communications (if present).
MOD Status of communications module (when installed).
NET A Status of network (if connected).
NET B Status of secondary network (if connected).
