Publication 1747-UM011G-EN-P - June 2008

118 Wiring Your I/O Modules

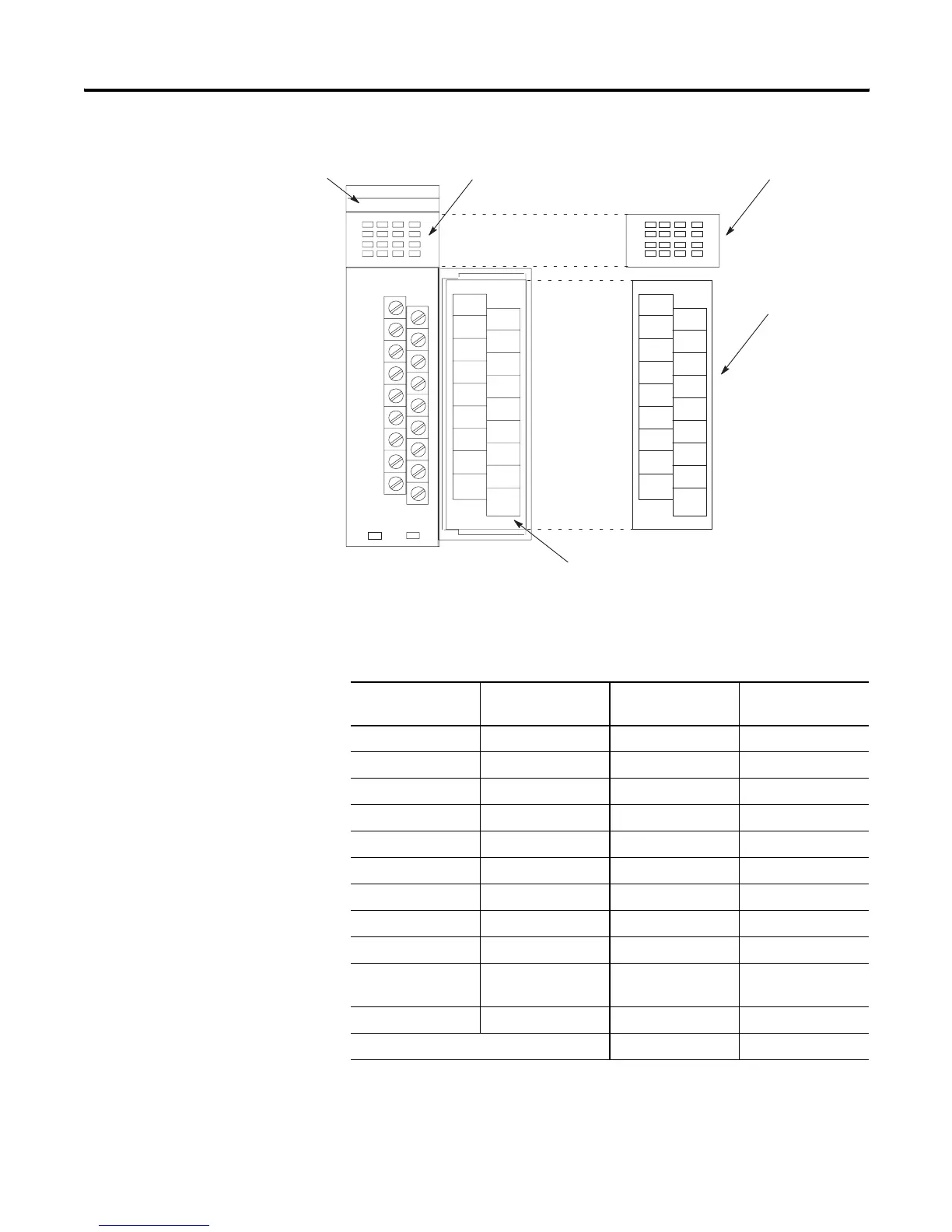

Octal Kit and I/O Module Information

Module Color Bar

Decimal Filter Label

Octal Filter Label

Octal Door Label

Decimal Door Label

I/O Module

Cat. No.

Octal Kit

Cat. No.

I/O Module

Cat. No.

Octal Kit

Cat. No.

1746-IA16 1746-RL40 1746-OV16 1746-RL53

1746-IB16 1746-RL41 1746-OW16 1746-RL54

1746-IG16 1746-RL42 1746-OBP16 1746-RL55

1746-IM16 1746-RL43 1746-OVP16 1746-RL56

1746-IN16 1746-RL44 1746-OAP12 1746-RL57

1746-IV16 1746-RL45 1746-IC16 1746-RL58

1746-ITB16 1746-RL46 1746-IH16 1746-RL59

1746-ITV16 1746-RL47 1746-IB32 1746-RL60

1746-OA16 1746-RL50 1746-IV32 1746-RL61

1746-OB16 1746-RL51 1746-OB32

1746-OB32E

1746-RL70

1746-OG16 1746-RL52 1746-OV32 1746-RL71

1746-OB16E 1746-RL72
