GREASE COLLECTION HOOK-UP
( I F E Q U I P P E D W I T H T H I S F E A T U R E )

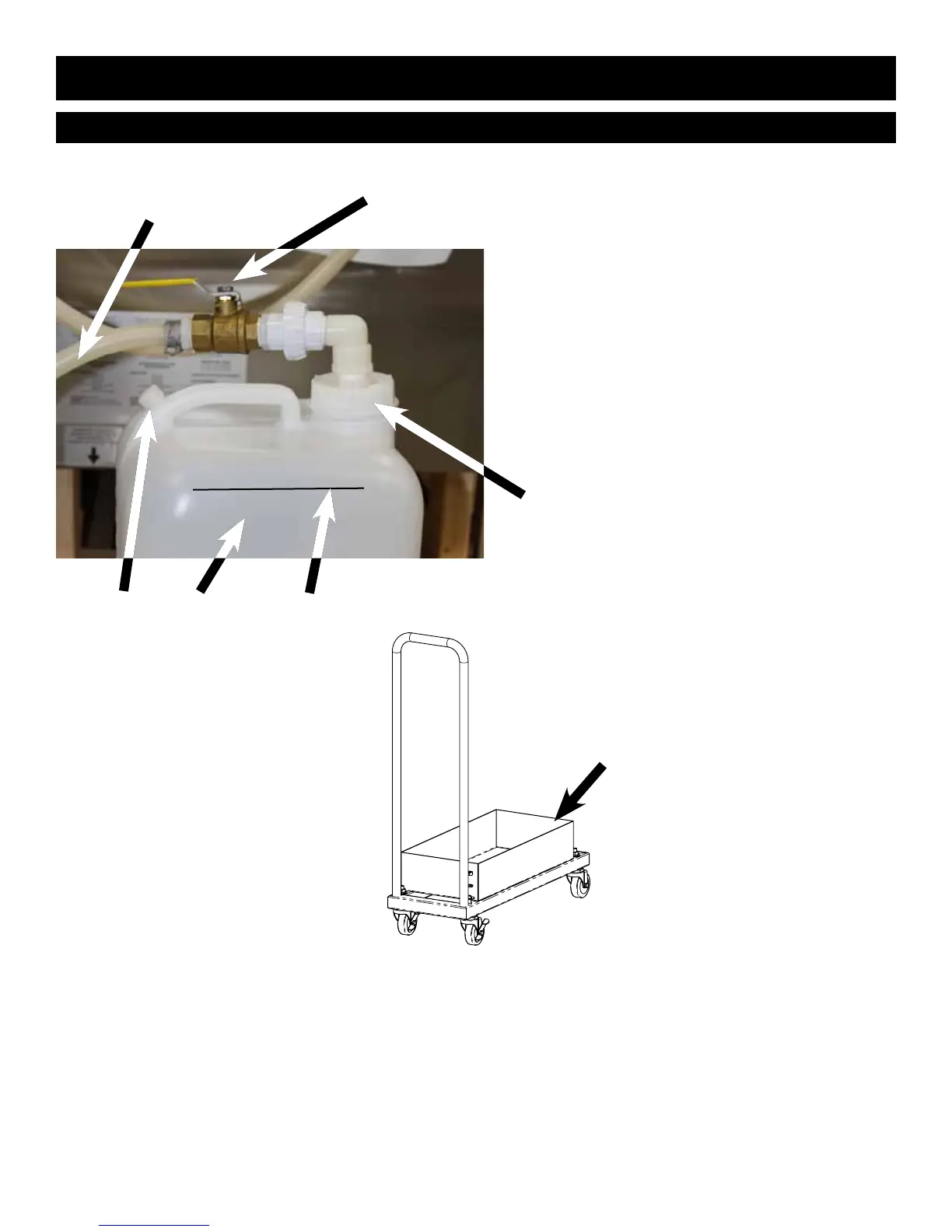

• Grease Collection Hose Assembly is
attached to the oven in the back.
• Place Grease Collection Containers
inside the tray of the Mobile Grease
Collection Cart. Roll into place next to
the oven.
• Loosen vent cap on container.
Pull out the Grease Collection Hose
Assembly from the back of the unit.
Remove collection container fill cap.
• Screw Grease Collection Hose
Assembly on to collection container
until snug.
• Turn ball valve handle to the ON
position.
• If this auxiliary function has been
chosen while setting your cooking
mode, the automatic grease collection
system is electronically activated
during the cooking process [
patent
pending
]. It is designed to save labor
and provide greater employee safety
by eliminating the need to handle hot
grease in shallow pans.
On/O
Ball Valve
Grease Collection Hose
5014542
22-3/16" (563mm)
3-3/8" (86mm)
20-1/4" (514mm)
37" (940mm)
33-1/4" (845mm)
28-1/2" (724mm)
10-1/2" (267mm)
11-3/16" (284mm)
Container
Fill Cap
Optional
Mobile
Grease
Collection
Cart
Grease
Collection
Container
Vent Cap
• Grease Collection container has
a 5 gallon capacity and holds
approximately 3 full loads of
poultry grease.
• It is suggested to change the
container when material reaches the
fill line on the bottle or at 4 gallons
to avoid hot grease overflow.
• Turn the ball valve handle to the
OFF position.
• The ball valve handle must be in the
OFF position when changing the
collection container.
• Unscrew the container fill cap.
• Using a new container, screw Grease
Collection Hose Assembly on to
collection container until snug.
• Turn ball valve handle to the ON
position.
Recommended
Capacity
