10. Select the file for the Enova DGX from the Files list. Click Send.
During the switcher’s upgrade process:
The Enova DGX Switcher stays offline (does not display in the OnLine Tree).
The control panel and System Configuration interface (System/Devices/Switcher Update Status) display upgrade status
messages.
Power cycles will not abort the upgrade; let it run until completion.
Once the upgrade is complete:
The LEDs return to normal.
The Enova DGX Switcher comes back on line (displays in the OnLine Tree).
The System Configuration interface upgrade status (System/Devices/Switcher Upgrade Status) reports that the system
is rebooting.
NOTE: If any of the boards do not upgrade, the 5002 device can take 15-30 minutes to come online (depending on enclosure).
11. If the enclosure previously held AIE boards, or had unused expansion slots, and you have added ASB expansion boards to the
enclosure with this upgrade, follow the instructions for enabling ASB default switched/embedded settings on the following page.
Important Information if Adding Audio Switching Boards (ASB or ASB-DAN) to an Upgraded Enclosure
If adding ASB boards to an enclosure that previously held Audio Insert/Extract (AIE) boards, or an enclosure that held no
expansion boards, you must enable the audio sub-system's default ASB switched/embedded settings. Instructions for enabling
default settings require using the DGX_SHELL interface.
To enable default settings on the audio sub-system:
1. Launch the DGX_SHELL prompt (see page 243).
2. Enable level 2 (super user) commands:
a. From the DGX_SHELL prompt, type su enova 12amx34 followed by <enter>.
3. Toggle the audio routing to “switched” (ASB default) on all output boards:
a. Type passthru OFF BCPU followed by <enter>.
4. Check the Switch Mode setting on the output boards:

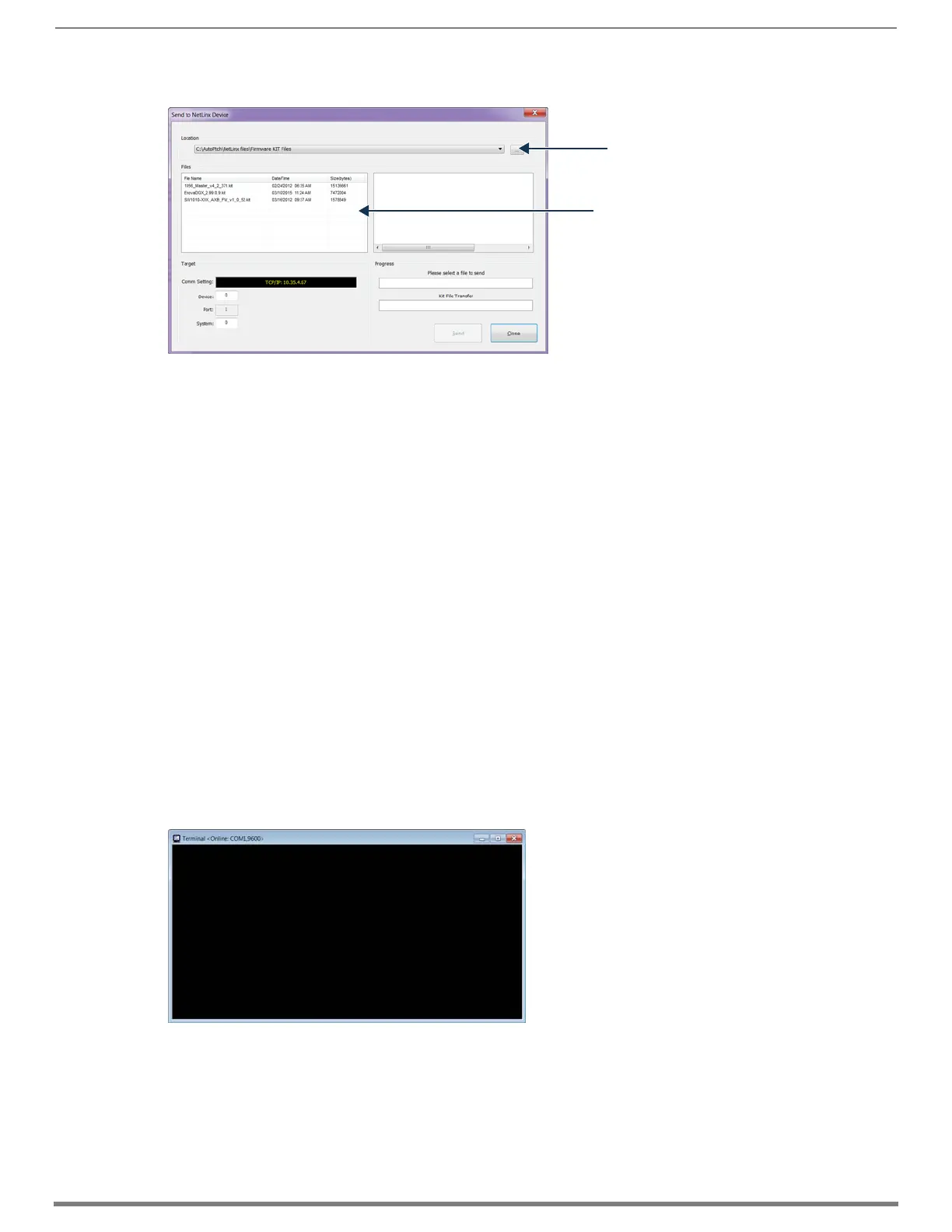

FIG. 136
Send to NetLinx Device dialog box
Select the enclosure .kit file
Browse for the downloaded (unzipped)
enclosure firmware file
DGX_SHELL> su enova 12amx34
Privilege Level 2
DGX_SHELL>
