AMX NX-3200 User Manual

WebConsole - Switching Options
80
NX-Series Controllers - WebConsole & Programming Guide
Status Page
The Status page is used to check a number of the switcher’s components and their states. The components (from top to bottom of
page) display status for Alarms, the Chassis, the Master CPU Board, Input and Output Boards, and Input and Output Expansion
Audio Boards. A quick glance at this page will indicate whether the system is running okay (green text will state OK) or if any thing
is failing (red text will state FAIL.)
IMPORTANT: The Status page settings are not
asynchronous. To obtain the latest information, the Refresh button must be clicked.
The example provided in the figure below is based on an Enova DGX 3200 Switcher with two each standard Input and Output
Boards, as well as two Expansion Audio Boards.

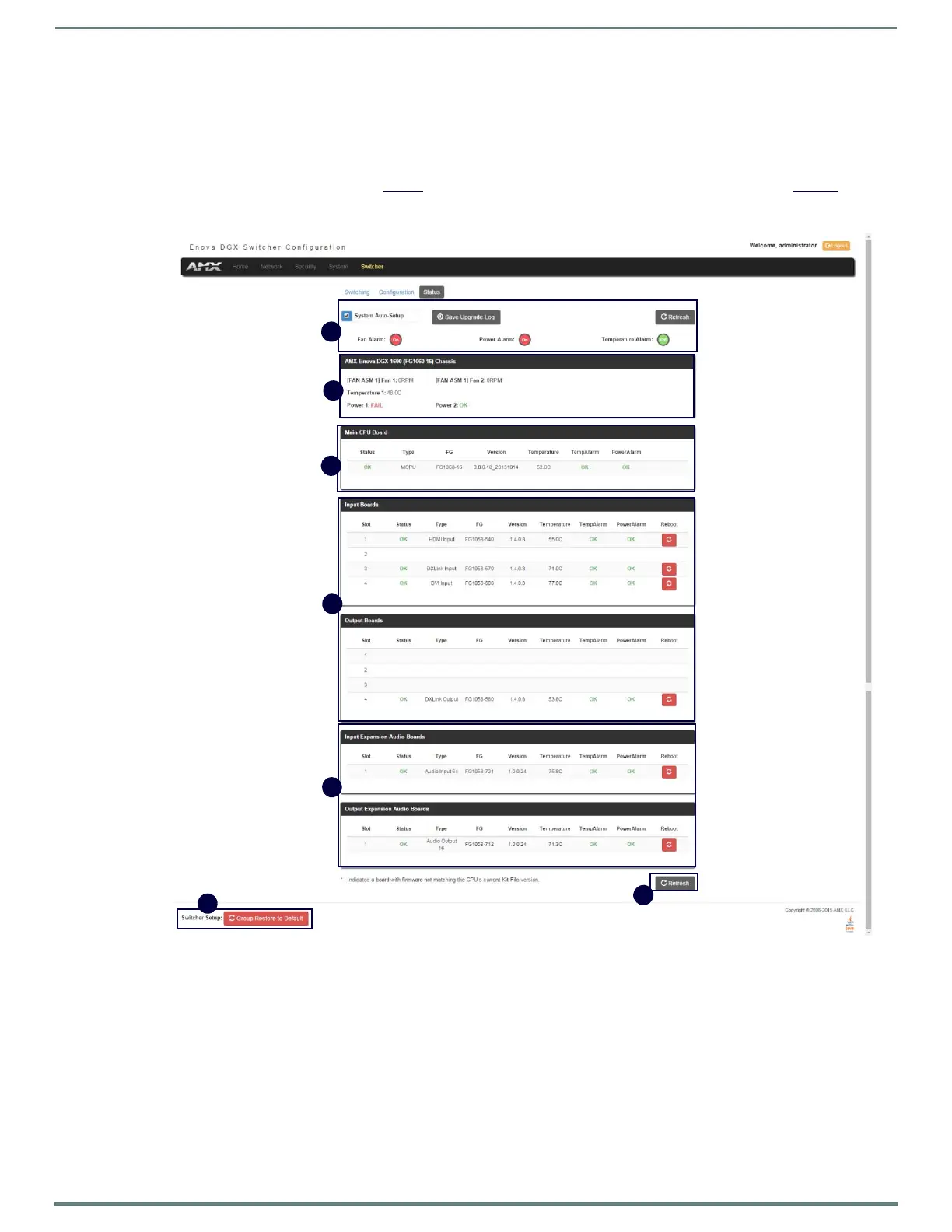

FIG. 60
Status page indicates status of system components
E
D
C
B
A
F
G
