5-10 Chapter 5: RAID conguration
5.2.2 Creating a RAID 10 set
You can create a RAID 10 set using four identical hard disk drives.

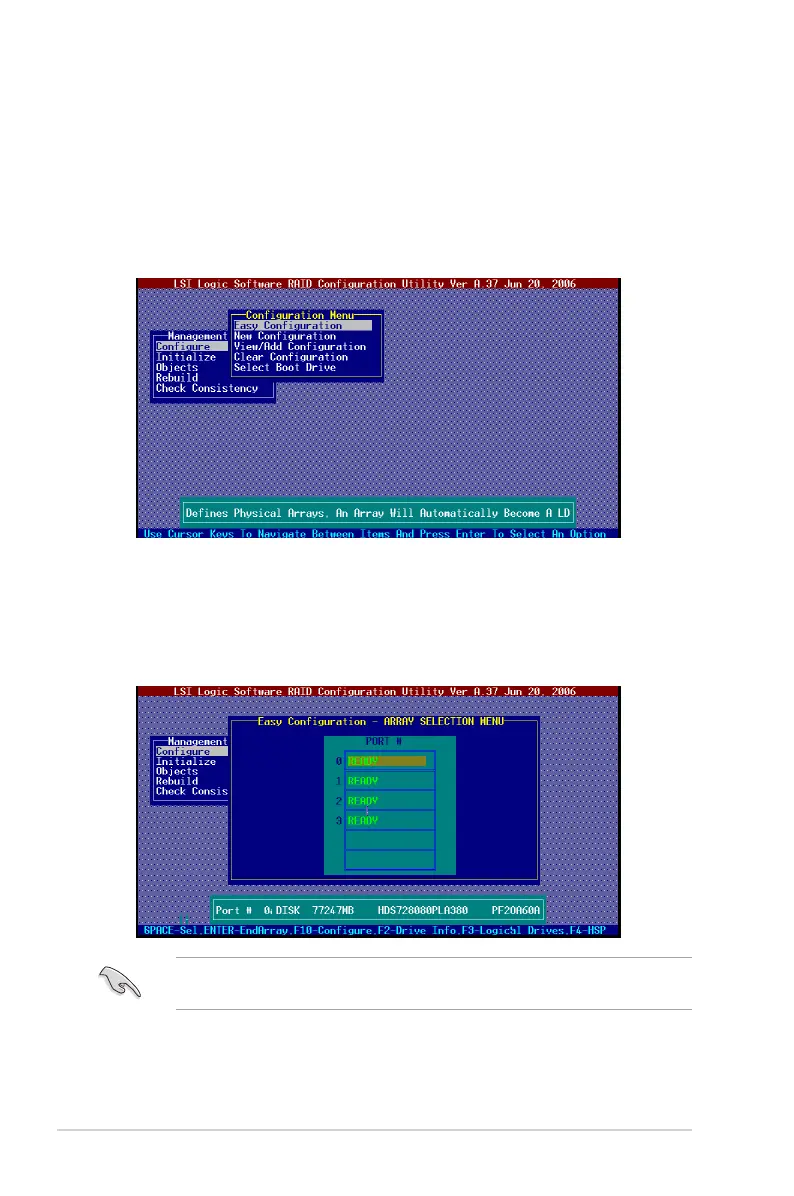

To create a RAID 10 set using the Easy Conguration option:
1. From the utility main menu, highlight Congure, then press <Enter>.
2. Use the arrow keys to select Easy Conguration, then press <Enter>.
3. The ARRAY SELECTION MENU displays the available drives connected to
the SATA ports. Select the drive(s) you want to include in the RAID set, then
press <SpaceBar>. When selected, the drive indicator changes from READY
to ONLIN A[X]-[Y], where X is the array number, and Y is the drive number.
The information of the selected hard disk drive displays at the bottom of the
screen.
