ASUS P5BV-M 5-3
3. The utility main window appears. Use the arrow keys to select an option from
the Management Menu, then press <Enter>. Refer to the Management Menu
descriptions on the next page.
At the bottom of the screen is the legend box. The keys on the legend box allow
you to navigate through the setup menu options or execute commands. The
keys on the legend box vary according to the menu level.
5.2 LSI Logic Embed de d SAT A RAI D
Setup Utility
The LSI Logic Embedded SATA RAID Setup Utility allows you to create RAID 0,
RAID 1, or RAID 10 set(s) from SATA hard disk drives connected to the SATA connectors
supported by the motherboard Southbridge chip.

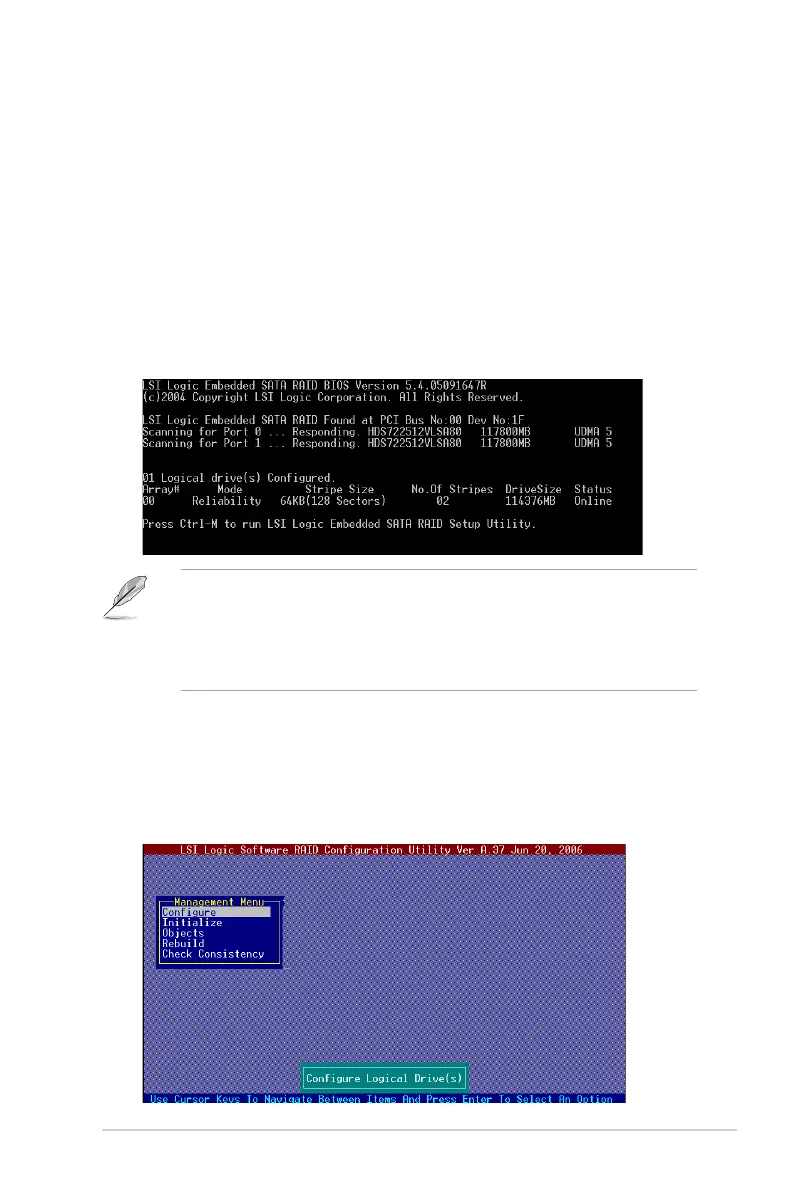

To enter the LSI Logic Embedded SATA RAID Setup Utility:
1. Turn on the system after installing all the SATA hard disk drives.
2. During POST, the LSI Logic Embedded SATA RAID Setup Utility automatically
detects the installed SATA hard disk drives and displays any existing RAID
set(s). Press <Ctrl> + <M> to enter the utility.
• The LSI Logic Embedded SATA RAID auto congures to RAID 1 when the
SATA to RAID Mode is enabled.
• The RAID setup screens shown in this section are for reference only and
may not exactly match the items on your screen due to the controller version
difference.
