ASUS P5BV-M 2-21
2.7.2 Internal connectors
1. Floppy disk drive connector (34-1 pin FLOPPY1)
This connector is for the provided Floppy Disk Drive (FDD) signal cable.
Insert one end of the cable to this connector, then connect the other end to
the signal connector at the back of the oppy disk drive.
Pin 5 on the connector is removed to prevent incorrect cable connection when
using a FDD cable with a covered Pin 5.

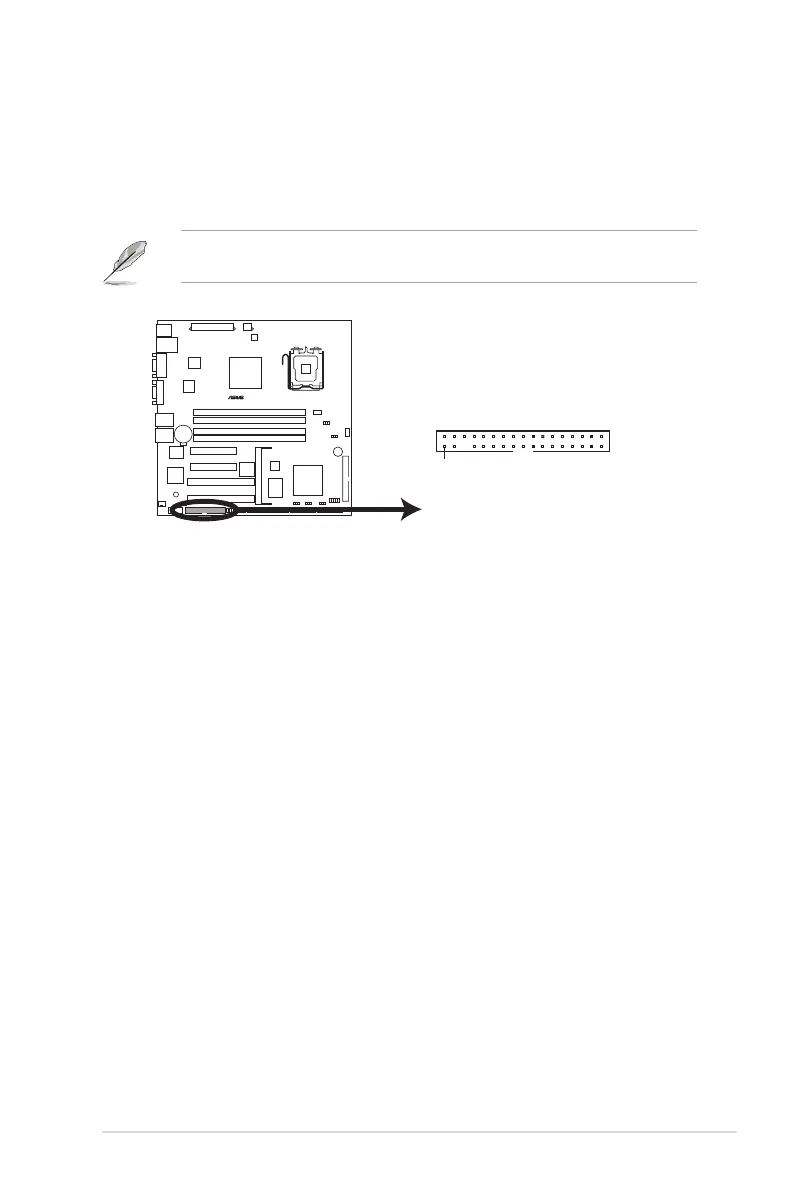

P5BV-M F loppy Disk Drive Connector
®
P5BV-M
NOTE:
Orient the red markings on
the floppy ribbon cable to PIN 1.
PIN1
FLOPPY1
