5-22
Chapter 5: RAID conguration
5.2.5
Rebuilding failed drives
Y
ou can manually rebuild failed hard disk drives using the
Rebuild
command in the
Management Menu.
T

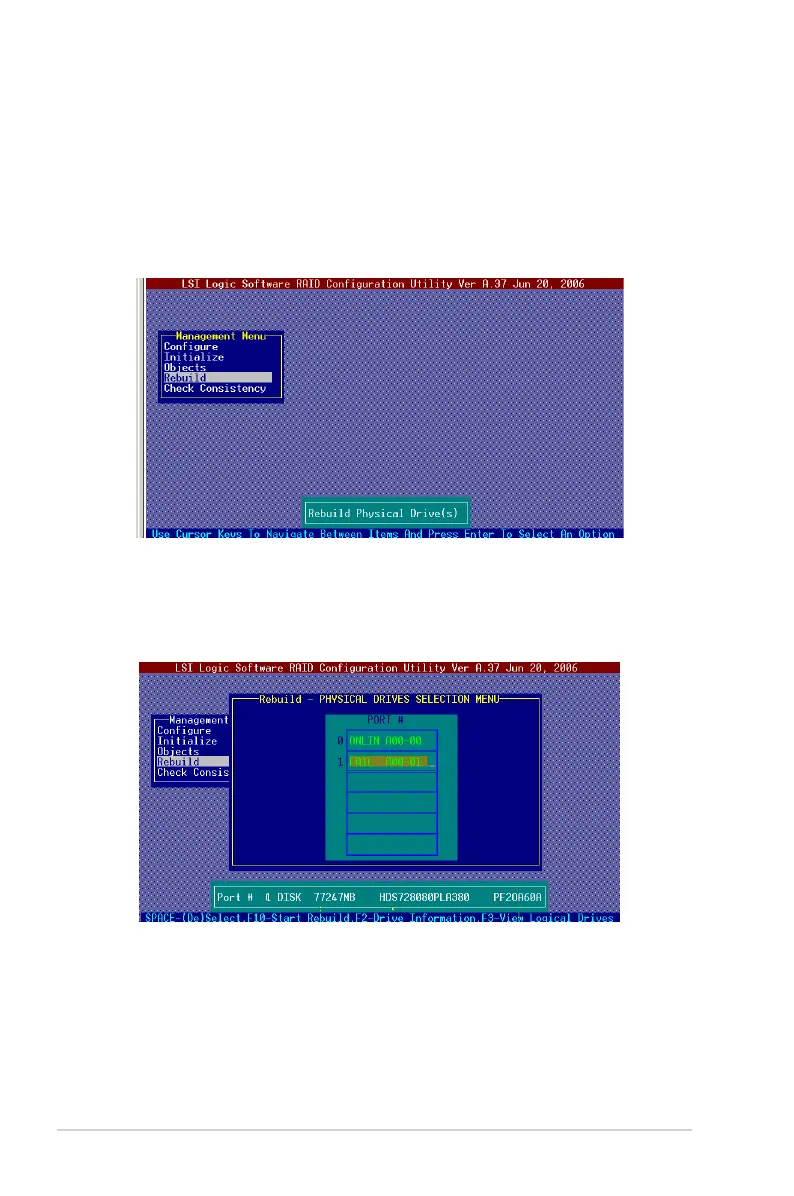

o rebuild a failed hard disk drive:
1.
From the
Management Menu
, highlight
Rebuild
, then press <Enter>.
2.
The
PHYS
ICAL
DRI
VES
SELECTION
M
ENU
displays
t
he
available
dr
ives
connected
to the
SA
T
A
ports. Select
the drive
you want
to
rebuild, then
press
<SpaceBar>.
