5. Click Flash to update the boot logo.
6. When prompted, click Yes to reboot the system. You will see the new boot logo the
next time you start up the system.
Ensure to enable the Full Screen Logo in BIOS to use this feature.
4.3.13 Audio congurations
The Realtek
®
audio CODEC provides 8-channel audio capability to deliver the ultimate audio
experience on your computer. The software provides Jack-Sensing function, S/PDIF Out
support, and interrupt capability. The CODEC also includes the Realtek
®
proprietary UAJ
®
(Universal Audio Jack) technology for all audio ports, eliminating cable connection errors, and
giving users plug and play convenience.
Follow the installation wizard to install the Realtek
®
Audio Driver from the support DVD that
came with the motherboard package.
If the Realtek
®
audio software is correctly installed, you will
nd the Realtek
®
HD Audio Manager icon on the taskbar.
Double-click on the icon to display the Realtek HD Audio
Manager.
Realtek
®
HD Audio Manager

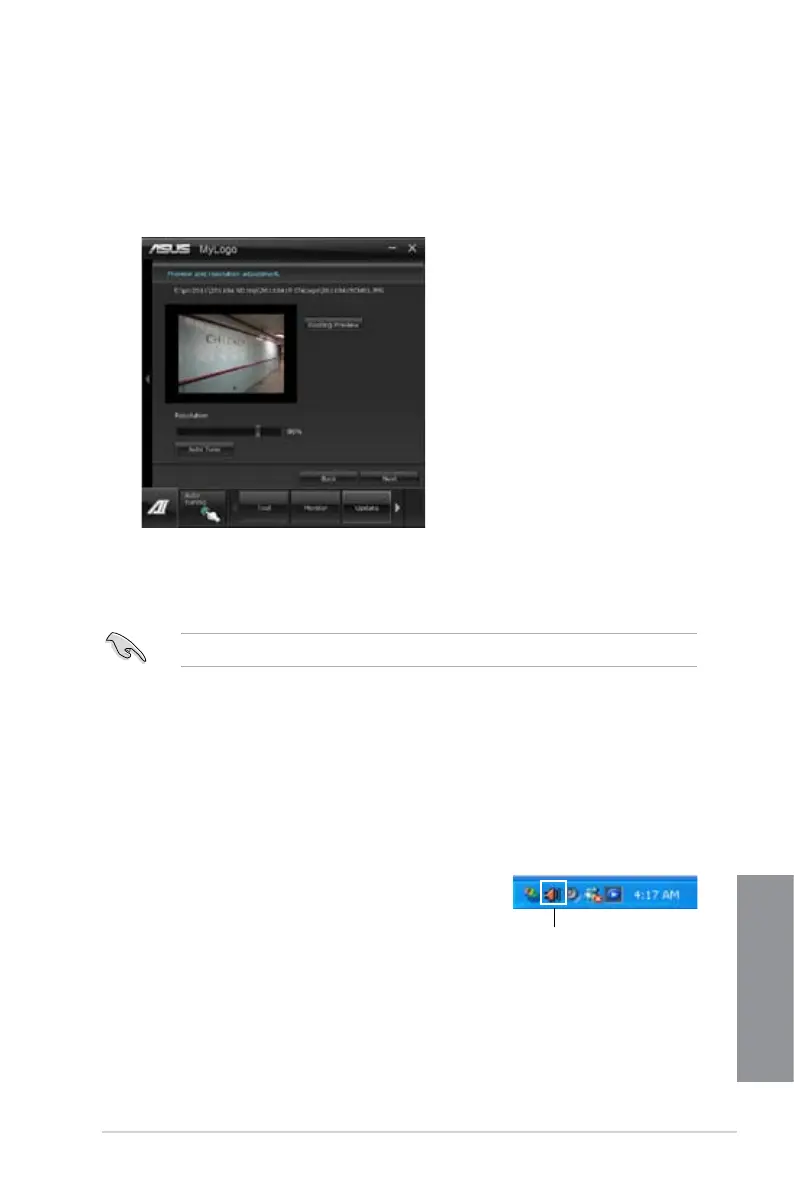

3. Do any of the following:
• Click Auto Tune to adjust the image size or the image resolution.
• Click Booting Preview to preview the boot image.
4. Click Next.

Asus P8Z77-V LK2 Specifications

General

Chipset	Intel Z77
Socket	LGA 1155
Memory Slots	4 x DIMM
Max Memory	32 GB
Memory Type	DDR3
PCI Express x1	2
PCI Slots	3
SATA 6Gb/s	2
SATA 3Gb/s	4
RAID Support	RAID 0, 1, 5, 10
USB 3.0 Ports	4 (2 rear, 2 via header)
Form Factor	ATX
Memory Speed	1600/1333 MHz
PCI Express x16	2
USB 2.0 Ports	4 rear
LAN	Realtek 8111F
Audio	Realtek ALC892, 8-Channel High Definition Audio
Video Outputs	HDMI, DVI, VGA
Multi-GPU Support	AMD Quad-GPU CrossFireX Technology
